Overview
Specification
| Parameter | Specification |
|---|---|

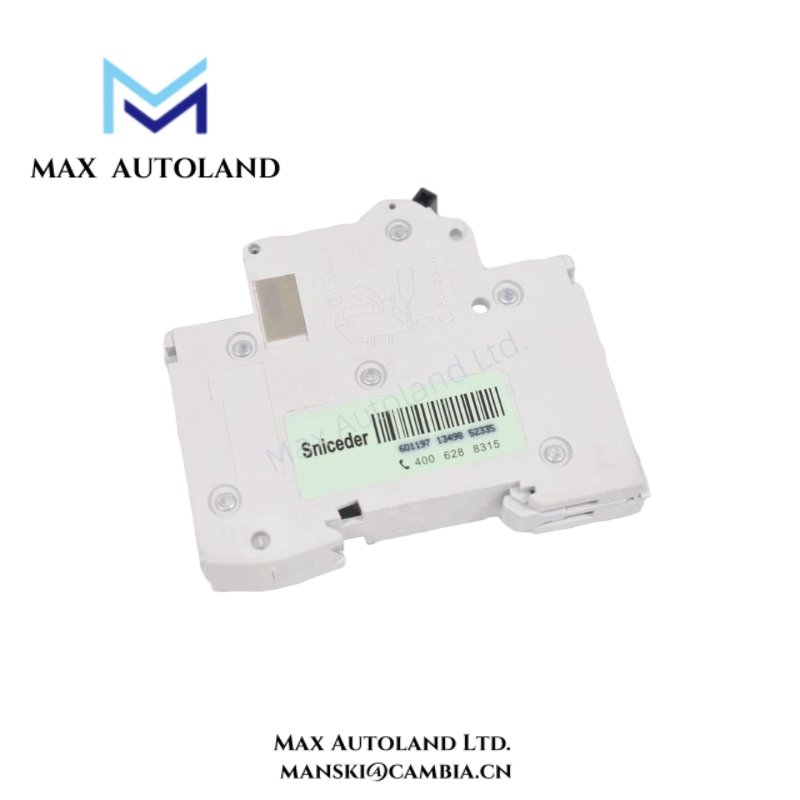

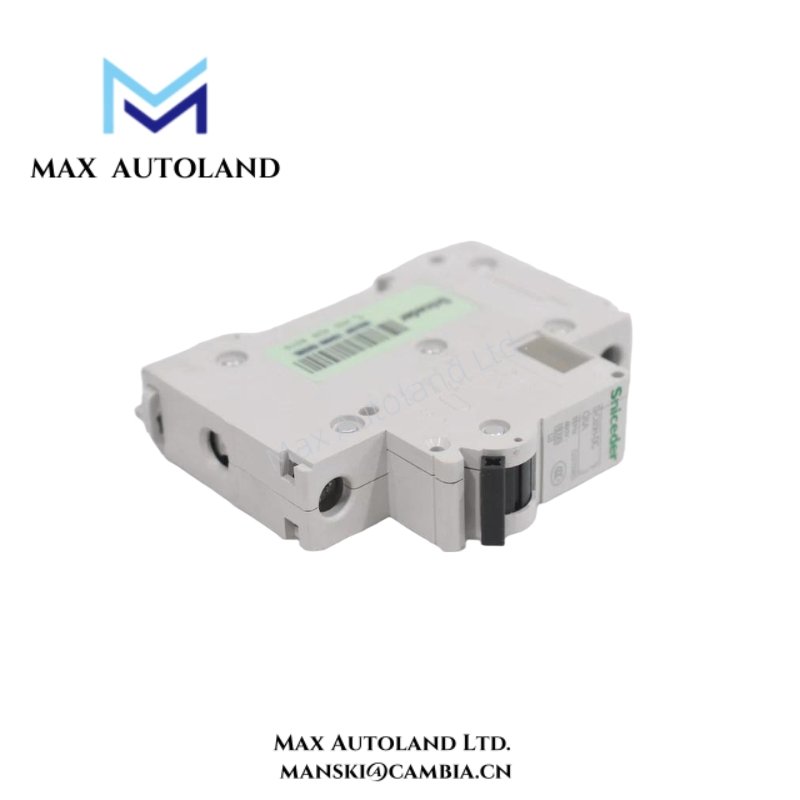

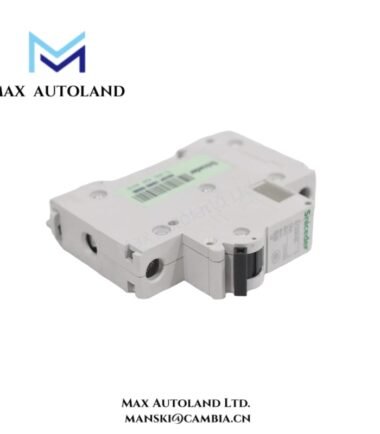

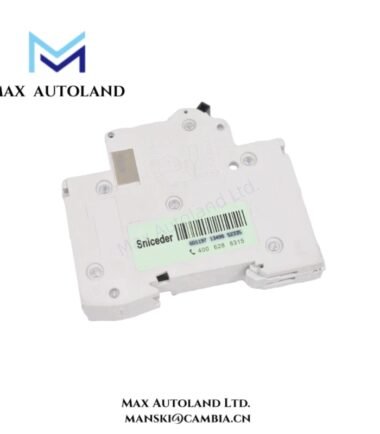

| Model / Part Number | C65H-DC C 6A |
| Product Type | DC Miniature Circuit Breaker (MCB) |
| Poles | 2-pole (2P) |
| Rated Voltage | 250 V DC |
| Rated Current | 6 A |
| Breaking Capacity | 10 kA at 250 V DC |
| Trip Curve | C-curve, thermal-magnetic |
| Frequency | DC application |
| Insulation Voltage | 500 V |
| Pollution Degree | 2 |
| Rated Impulse Withstand Voltage | 4 kV |
| Mechanical Life | Up to 20,000 operations |
| Electrical Life | Up to 10,000 operations |
| Operating Temperature | –30 °C to +70 °C |
| Mounting Method | 35 mm DIN-rail |
| Terminal Capacity | 1.5–25 mm² (rigid or flexible conductors) |
| Torque for Terminals | 2.5 Nm (typical) |
| Standards / Certifications | IEC 60947-2 / EN Standards |
FAQ
Q1: What type of applications is the C65H-DC C 6A suitable for?
A1: It is ideal for DC circuits such as battery systems, solar panels, automation control panels, and industrial distribution systems.
Q2: Can this breaker handle inductive loads?
A2: Yes. The C-curve trip characteristic supports applications with moderate inrush currents, such as motors or inverter-based systems.
Q3: Is it easy to install in standard control cabinets?
A3: Absolutely. Its modular design fits standard 35 mm DIN-rails, allowing fast installation and replacement.
Q4: How much fault current can it safely interrupt?
A4: The breaker can interrupt up to 10 kA at 250 V DC, ensuring safe performance during short-circuit events.
Q5: Does the breaker support harsh environmental conditions?
A5: Yes. It operates reliably between –30 °C and +70 °C, making it suitable for a wide range of industrial environments.
Q6: How long can the breaker last in normal operation?
A6: It offers up to 20,000 mechanical operations and up to 10,000 electrical operations under rated load.
