Overview

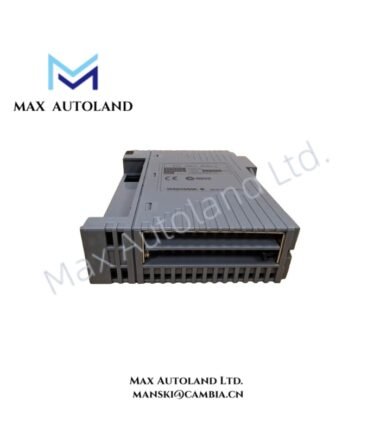

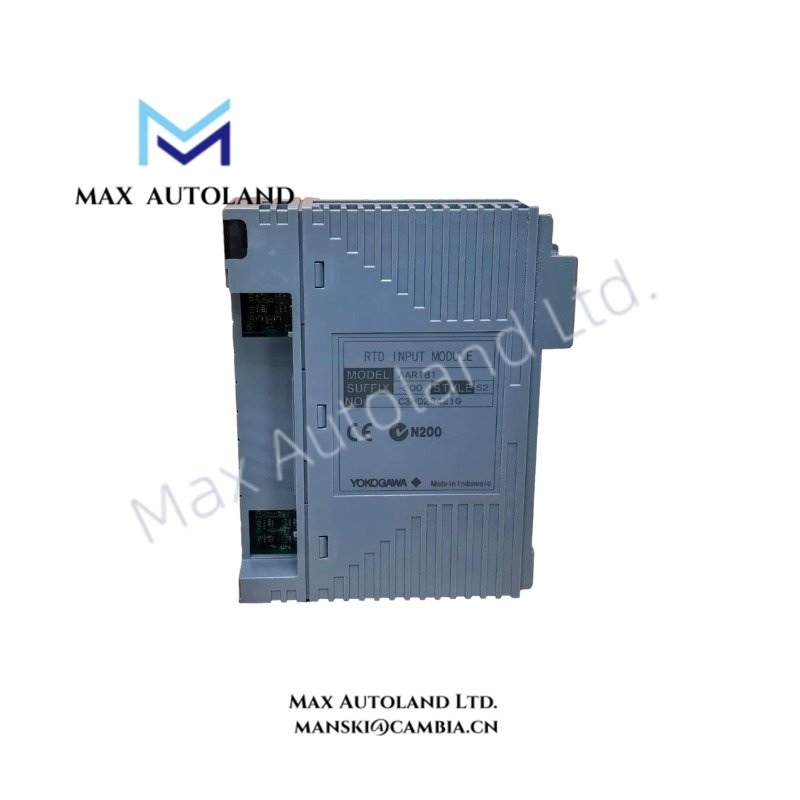

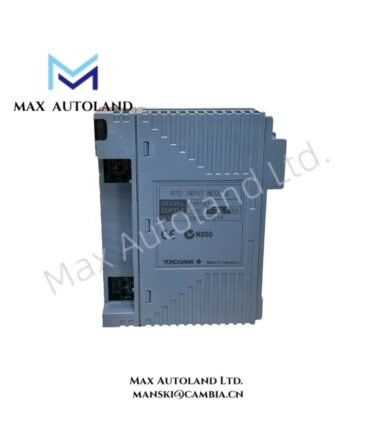

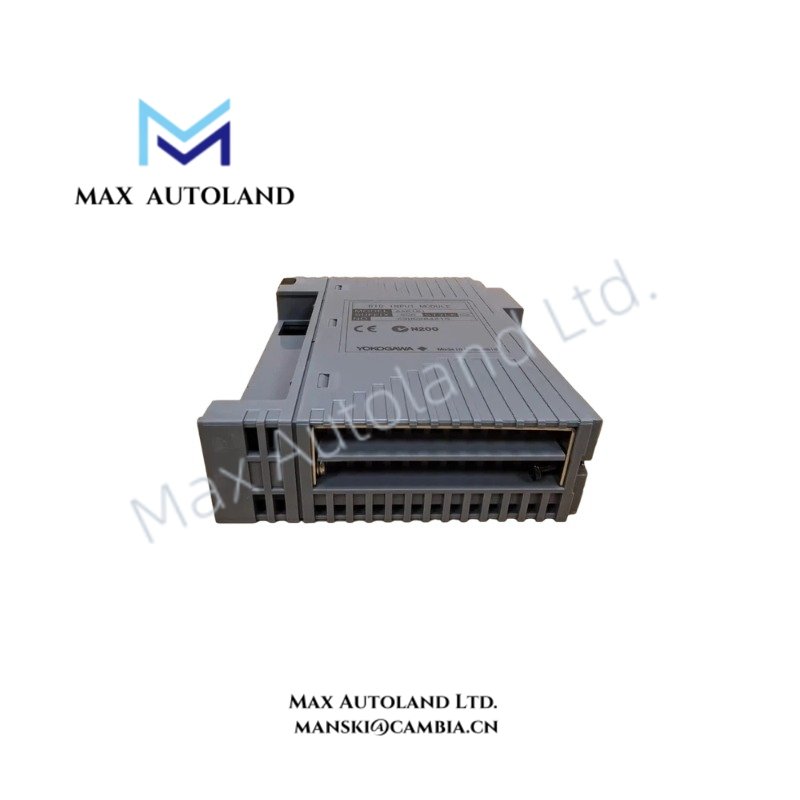

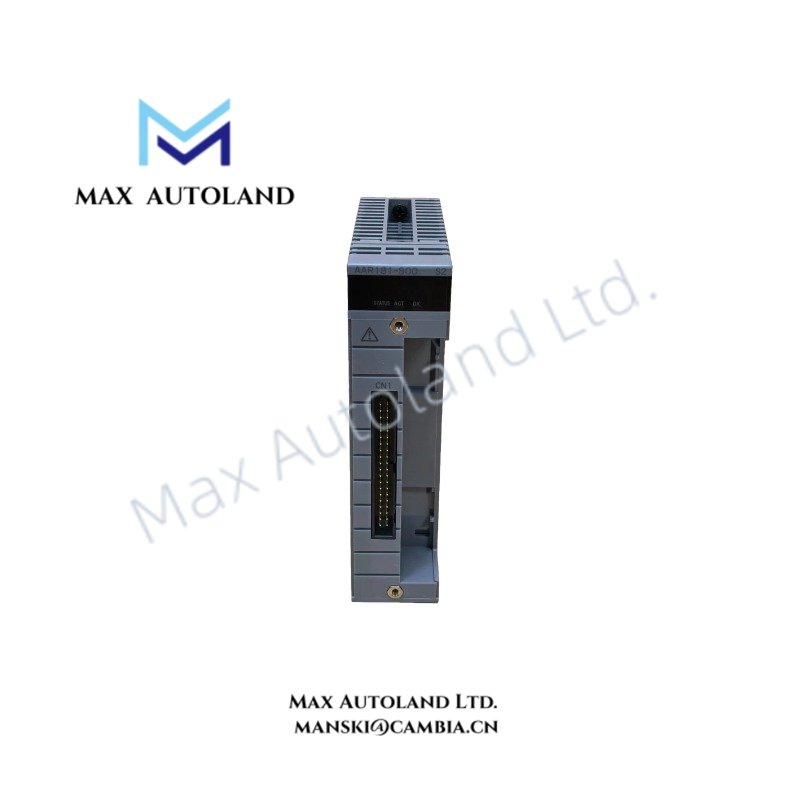

The Yokogawa AAR181-S00, also cataloged as the AAR181-S00 Analog Input Module, provides direct signal acquisition and A/D conversion for process measurement inputs within Yokogawa CENTUM VP and CENTUM CS 3000 FIO control system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAR181-S00 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | Analog Input Module |
| Input Channels | 32 channels, fully isolated |
| Input Signal Range | 4-20 mA DC / 0-10 V DC |
| A/D Conversion Resolution | 16-bit |
| Accuracy | +/- 0.1% of span |
| Isolation Voltage | 1500 V AC channel-to-system isolation |
| Dimensions | 120 x 90 x 40 mm |
| Weight | Approx. 0.45 kg |
| Operating Temp | -10 deg C to +55 deg C |
| Power Consumption | 5 V DC, 400 mA from system backplane |
| Compatible Platforms | Yokogawa CENTUM VP / CS 3000 FIO architecture |
Yokogawa Process Signal Isolation and DCS Integration
The AAR181-S00 processes analog field signals through isolated input channels before transferring converted measurement data to the DCS controller. Furthermore, the module supports channel-to-channel isolation to reduce interference between individual measurement loops.
The module design aligns with Yokogawa process instrumentation architectures, where 4-20 mA loop signals and voltage inputs require stable conversion for control calculations. Therefore, the isolated input structure helps maintain signal integrity in distributed field applications.
The AAR181-S00 follows Yokogawa DCS I/O design principles for CENTUM VP and CS 3000 systems. It supports direct integration with field transmitters that provide standard analog outputs, including process variables from pressure, temperature, flow, and level instruments.
Frequently Asked Questions
Q: Does the Yokogawa AAR181-S00 support isolated analog input channels?
A: Yes. The module provides 32 fully isolated analog input channels with channel-to-system isolation.
Q: What input signals can the AAR181-S00 receive?
A: The module accepts standard 4-20 mA DC current signals and 0-10 V DC voltage signals from field devices.
Q: How does the AAR181-S00 receive system power?
A: The module receives power from the system backplane with a specified consumption of 5 V DC at 400 mA.
Field Installation Guidelines
- Install the AAR181-S00 only in compatible Yokogawa FIO node assemblies designed for CENTUM VP or CS 3000 systems.
- Verify that the backplane connection is correctly seated before applying system power.
- Use shielded signal cables for analog field wiring and connect cable shields according to the site grounding standard.
- Separate analog signal wiring from high-voltage power cables and switching circuits to reduce electrical noise coupling.
- Confirm field transmitter signal polarity and loop wiring before commissioning.
- Check module status indicators and verify input values through the DCS engineering workstation after installation.
