Overview

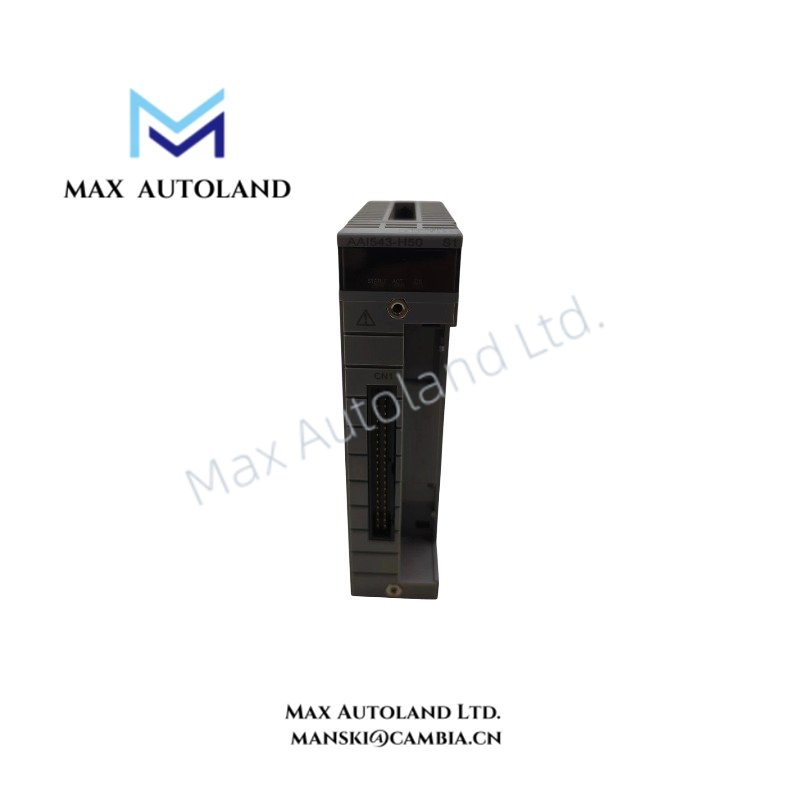

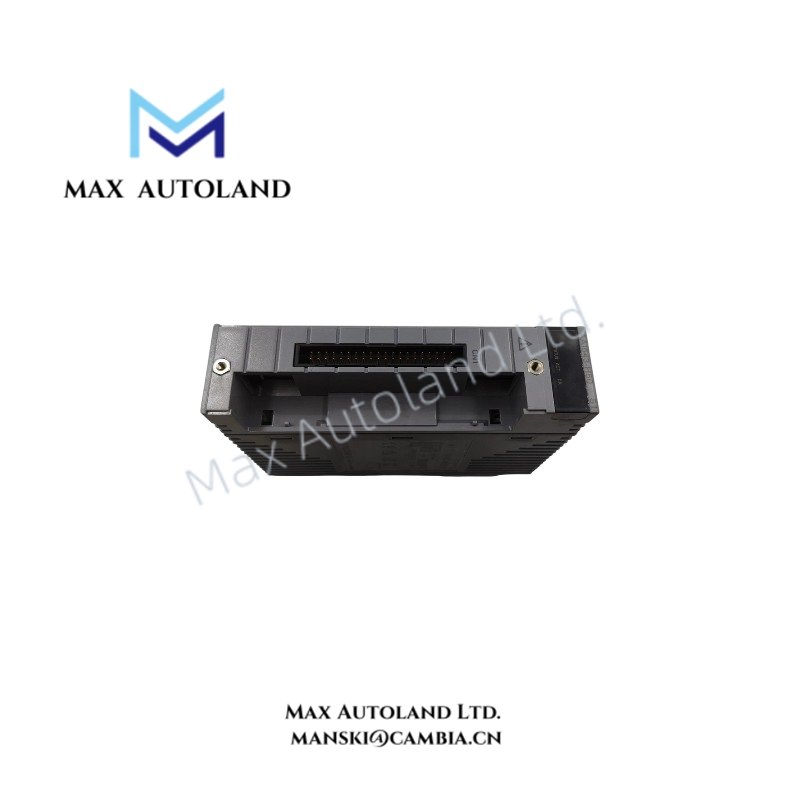

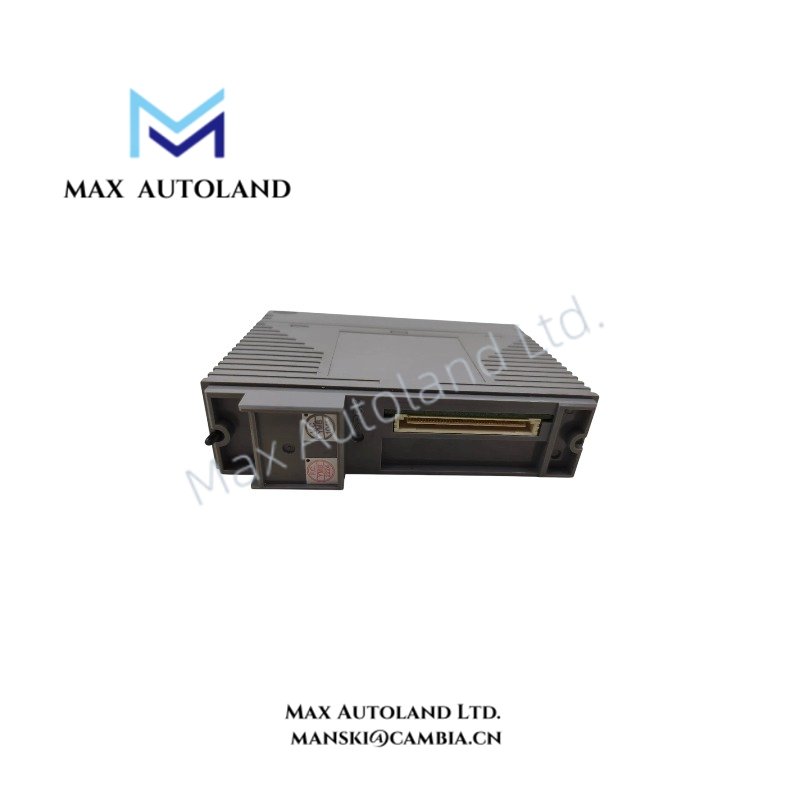

Configured for isolated 4-20 mA current signal execution in Yokogawa CENTUM VP and CENTUM CS platforms, the Yokogawa AAI543-H50/A4S10 (AAI543 Analog Output Module) provides direct electrical conversion from digital control data to field output loops.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-H50/A4S10 |
| Brand | Yokogawa |
| Origin | Japan |
| Module Type | Isolated Analog Current Output Module |
| System Compatibility | Yokogawa CENTUM VP / CENTUM CS DCS |
| Number of Output Channels | 16 channels, isolated |
| Output Signal | 4-20 mA DC |
| Communication Protocol | HART supported |
| Output Accuracy | +/-48 uA (+/-0.05% of full scale) |
| Data Update Period | 10 ms |
| Allowable Load Resistance | 0 to 750 ohm |
| Circuit Open Detection | Less than 0.65 mA |
| Temperature Drift | +/-16 uA per 10 deg C change |
| Withstanding Voltage | 1500 VAC between output and system for 1 minute |
| Configuration | Dual redundant configuration supported |
| Connection Interface | Pressure clamp terminals, MIL connector cables, or dedicated KS cables depending on adapter configuration |
| Weight | Approximately 0.4 kg |
| Operating Temp | -10 deg C to +60 deg C |
| Power Consumption | 230 mA at 5 VDC; 540 mA at 24 VDC |
4-20 mA HART Loop and Channel Isolation Features
The AAI543-H50/A4S10 processes analog current output signals for Yokogawa DCS field control loops. The module maintains isolated output channels to reduce electrical interference between connected field devices.
In addition, the H50 configuration supports HART communication through the 4-20 mA loop. Therefore, field instruments can exchange digital diagnostic data while the module maintains standard analog current transmission.
The module supports Yokogawa process control architectures where channel-to-channel isolation and stable current regulation are required. The output circuit design manages actuator control signals for devices such as control valves, positioners, and indicators.
Frequently Asked Questions
Q: Does the AAI543-H50/A4S10 support redundant operation?
A: Yes. The module supports dual redundant configuration with standard switch-over operation in compatible Yokogawa system configurations.
Q: What output signal does the AAI543-H50/A4S10 generate?
A: The module provides 16 isolated analog current outputs with a 4-20 mA DC signal range.
Q: Can HART communication operate with the analog output loop?
A: Yes. The H50 version supports HART communication through the 4-20 mA current output loop.
Field Installation Guidelines
Install the AAI543-H50/A4S10 module only in compatible Yokogawa I/O node assemblies. Confirm the correct base unit, terminal connection method, and system configuration before installation.
Use shielded signal cables for field current loops when the installation environment contains electrical noise sources. Connect cable shields according to the plant grounding standard and avoid parallel routing with high-power cables.
Verify the 4-20 mA loop wiring polarity before applying power. Check field device load conditions to ensure the connected actuator or indicator operates within the specified output resistance range.
For redundant configurations, install modules according to the Yokogawa system hardware arrangement and verify the standby module status through the DCS engineering tools.
