Overview
Furthermore, the compact 1U rack-mount housing fits easily into network racks or control enclosures, helping engineers maintain efficient panel layouts in demanding environments. Therefore, the PowerConnect 2824 delivers a practical blend of flexibility, throughput capability, and user-friendly configuration for modern industrial networking needs. As a result, it supports long-term reliability for facilities that depend on consistent, high-bandwidth communication between automation devices.
Specification
| Parameter | Specification |
|---|---|

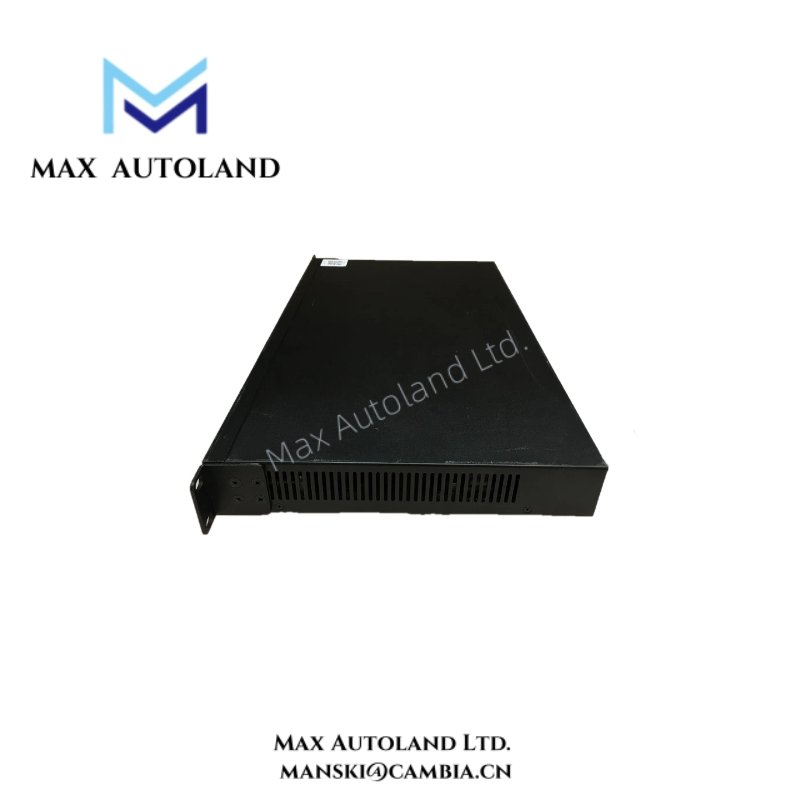

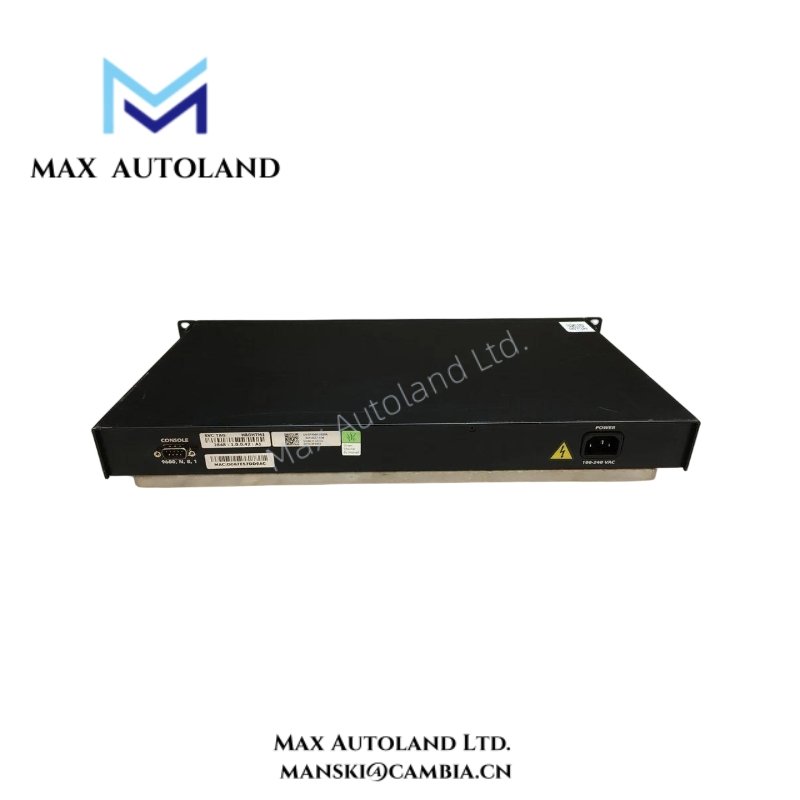

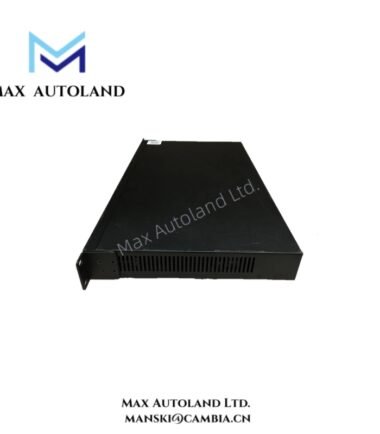

| Model | Dell PowerConnect 2824 |
| Port Configuration | 24 × 10/100/1000BASE-T + 2 × SFP combo uplinks |
| Switching Capacity | 48 Gbps |
| Forwarding Rate | 35.6 Mpps |
| MAC Address Table | 8,000 entries |
| Jumbo Frames | Up to approximately 9,000 bytes |
| VLAN Support | Up to 64 VLANs |
| Link Aggregation | 802.3ad static link aggregation |
| Quality of Service | 4 priority queues, WRR and strict priority |
| Management Options | Web GUI, SNMP v1/v2, RMON, CLI, Telnet |
| Security Features | 802.1x, MAC filtering, password protection, RADIUS/TACACS+ |
| Media Diagnostics | Copper and fiber link diagnostics |
| Power Supply | Internal 100 V AC, approximately 1 A |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 10% to 90%, non-condensing |
| Dimensions | 330 × 230.5 × 42 mm |
| Weight | Approx. 2.5 kg |
| Rack Mounting | Standard 1U rack-mount bracket included |
FAQ
A1: Yes. It can operate as either an unmanaged switch or a fully managed device via the mode button.
Q2: Does the switch support fiber connectivity?
A2: Yes. Two SFP combo uplinks accommodate fiber modules for long-distance connections.
Q3: How many VLANs can be configured?
A3: Up to 64 VLANs are supported for traffic separation and system segmentation.
Q4: Does it support jumbo frames?
A4: Yes. Jumbo frames up to roughly 9,000 bytes improve efficiency in data-heavy applications.
Q5: Can this switch be installed in a standard industrial rack?
A5: Yes. It includes 1U rack-mount brackets suitable for control cabinets and network racks.
