Overview

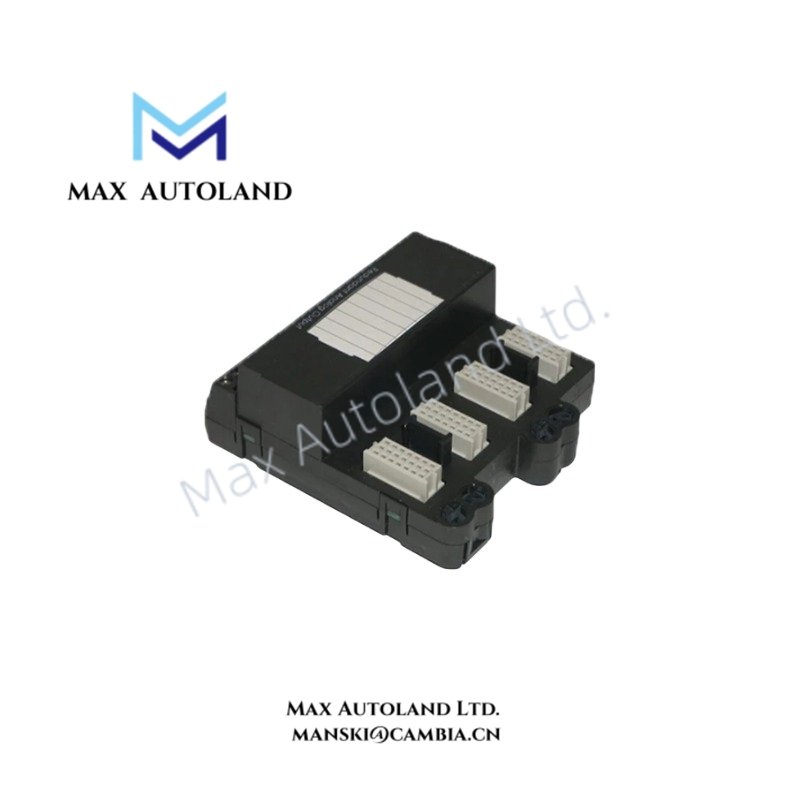

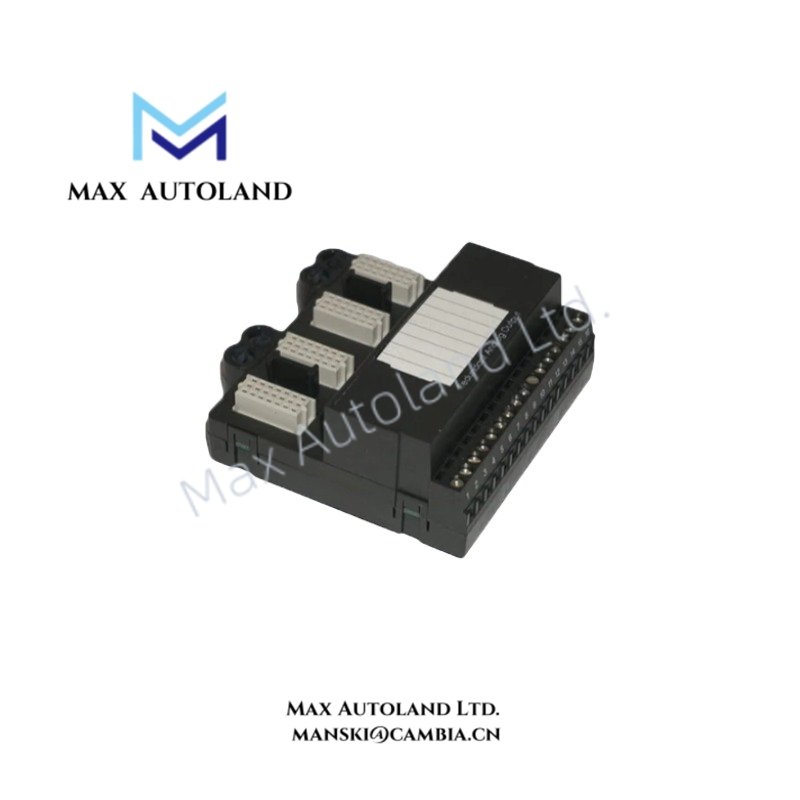

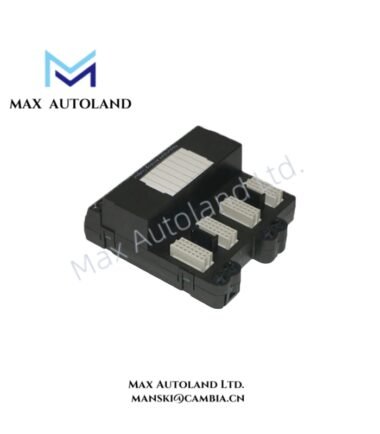

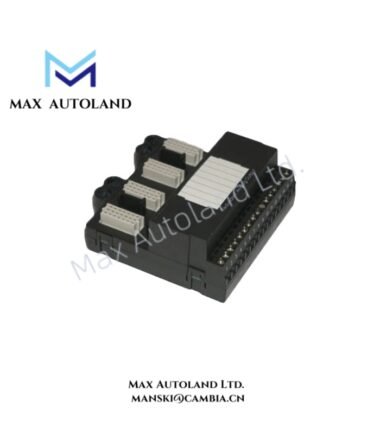

The Emerson KC4011X1-BP1, also cataloged as the KC4011X1-BP1 4-Wire AI Terminal Block, provides physical signal termination for 16-channel analog input connections within the DeltaV S-series I/O system.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KC4011X1-BP1 |
| Brand | Emerson |
| Origin | USA |
| Product Type | 4-Wire AI 16-Channel Terminal Block |
| System Platform | DeltaV S-series I/O System |
| Channel Count | 16 analog input channels |
| Signal Type | 4-wire analog input |
| Field Circuit | 30 VDC at 500 mA/channel |
| Hazardous Area Rating | II 3G Ex ec ic IIC Gc |
| Additional Hazardous Certification | FM21UKEX0017U, FM17US0286U, FM17CA0145U |
| Ambient Temperature | -40 deg C to +70 deg C |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Relative Humidity | 5 to 95% non-condensing |
| Terminal Block Key Position | A6 |
| Power Consumption | Field circuit load: 30 VDC at 500 mA/channel |
4-20 mA HART Process Signal Termination and Isolation
The Emerson KC4011X1-BP1 terminal block supports four-wire analog input field connections for DeltaV I/O architectures. Moreover, the terminal interface maintains the electrical connection between field devices and the associated I/O card while preserving channel separation requirements.
The module design aligns with Emerson process control hardware practices, including channel-to-channel isolation considerations for analog measurement circuits. In addition, the terminal block supports signal wiring configurations used with 4-20 mA process instruments and compatible HART communication loops when paired with suitable DeltaV input modules.
The hazardous area certification supports installation in Zone 2 environments. Therefore, users must follow the specified DeltaV Zone 2 installation instructions during mounting, wiring, removal, and operation procedures.
Frequently Asked Questions
Q: Can the KC4011X1-BP1 terminal block be removed while system power remains applied?
A: The terminal block can only be added or removed with system power applied when no I/O card is installed and no field wiring is connected to the terminal.
Q: Does the KC4011X1-BP1 require field calibration?
A: No. The unit contains no user serviceable parts and does not require calibration adjustments.
Q: How does the terminal block prevent incorrect I/O card installation?
A: A rotary keying system sets compatibility between the terminal block and the designated I/O card after installation.
Field Installation Guidelines
Install the KC4011X1-BP1 according to Emerson DeltaV S-series and CHARMs Hardware Installation procedures. Verify that the rotary key position matches the assigned I/O card before connecting field wiring.
Route analog signal cables according to industrial instrumentation wiring practices. Keep low-level analog wiring separated from high-energy power conductors to reduce electrical interference. Furthermore, connect cable shields according to the site grounding standard and maintain proper hazardous area installation requirements.
Before removal or replacement, disconnect field wiring from the terminal block and confirm that the connected I/O card condition matches the approved maintenance procedure.
