Overview

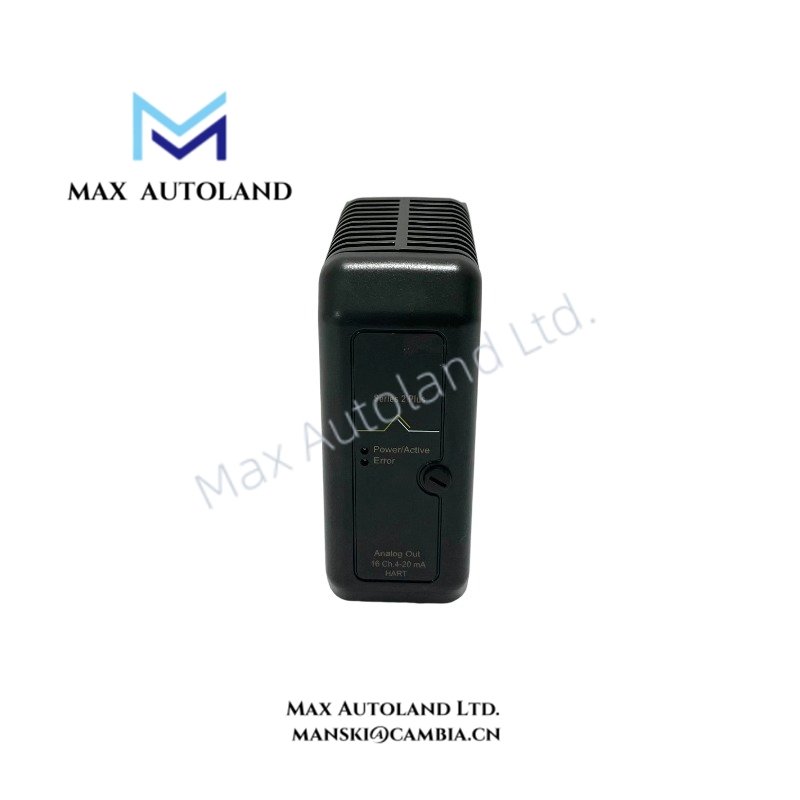

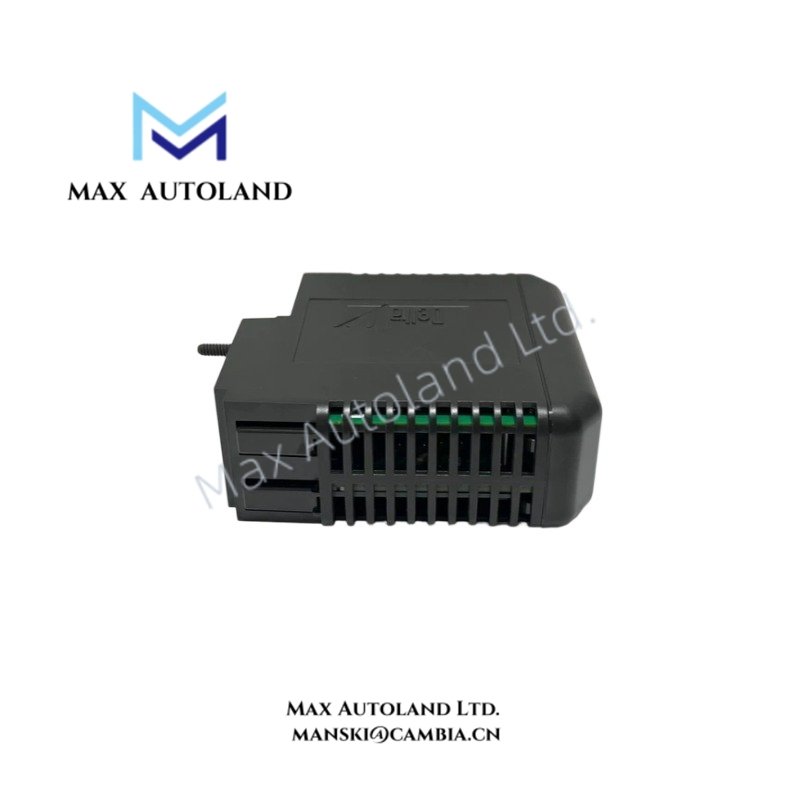

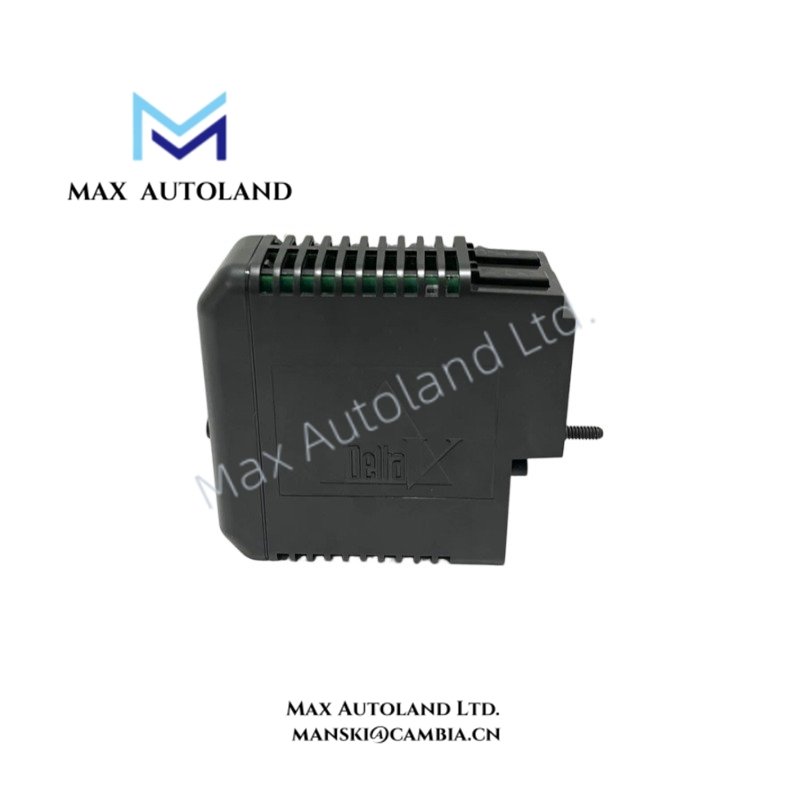

Configured for 16-channel analog output signal execution in DeltaV S-series systems, the Emerson KC3011X1-BA1 (KC3011X1-BA1 AO Plus, 16-Ch 4-20mA HART Module) provides direct physical and electrical output control for HART-enabled field devices.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KC3011X1-BA1 |
| Brand | Emerson |
| Origin | USA |
| Weight | 0.18 kg |
| Dimensions | 4.1 x 12.5 x 10.5 cm |
| Operating Temp | -40 to +70 deg C |
| Product Type | Analog Output Modules |
| Channel Configuration | 16-channel analog output |
| Signal Type | 4-20 mA HART |
| Local Bus Power | 12 VDC at 160 mA |
| Bussed Field Power | 24 VDC at 400 mA |
| Field Circuit Power | 17 VDC at 23 mA |
| Hazardous Area Certification | II 3 G Ex nA IIC Gc |
| ATEX Certification | FM15ATEX0004U |
| IECEx Certification | IECEx FMG 15.0001U |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Relative Humidity | 5 to 95% non-condensing |
| Terminal Block Key Position | A5 |
4-20 mA HART Signal Output and Channel Isolation
The Emerson KC3011X1-BA1 provides sixteen analog output channels with 4-20 mA HART communication capability. Each channel generates controlled current output signals for field instrumentation while maintaining process loop communication through the HART protocol.
Furthermore, the module design supports DeltaV distributed control architecture with local bus communication and field power distribution. The output circuitry manages analog signal transmission between the controller network and connected field devices.
The module supports channel-to-channel isolation practices required for process instrumentation installations. Therefore, field wiring configuration, shield termination, and grounding methods must follow DeltaV S-series hardware installation requirements.
Frequently Asked Questions
Q: Can the KC3011X1-BA1 be removed while system power is active?
A: No. Field power supplied through the terminal block or bussed field power connection must be removed before removing or installing the module.
Q: Does the KC3011X1-BA1 require user calibration?
A: No. The module does not require calibration and contains no user-serviceable internal components.
Q: How does the terminal block ensure module compatibility?
A: The rotary keying system prevents incorrect terminal block and I/O card combinations after installation.
Field Installation Guidelines
- Install the KC3011X1-BA1 according to DeltaV S-series hardware installation procedures for hazardous area applications.
- Verify the terminal block key position before inserting the I/O module. The specified key position for this module is A5.
- Remove field circuit power before module insertion or removal to prevent electrical damage.
- Route analog output wiring separately from high-voltage switching cables to reduce electromagnetic interference.
- Connect cable shields according to site grounding standards and maintain proper instrument signal reference paths.
- Do not disassemble the module because internal components are not designed for field repair.
