Overview

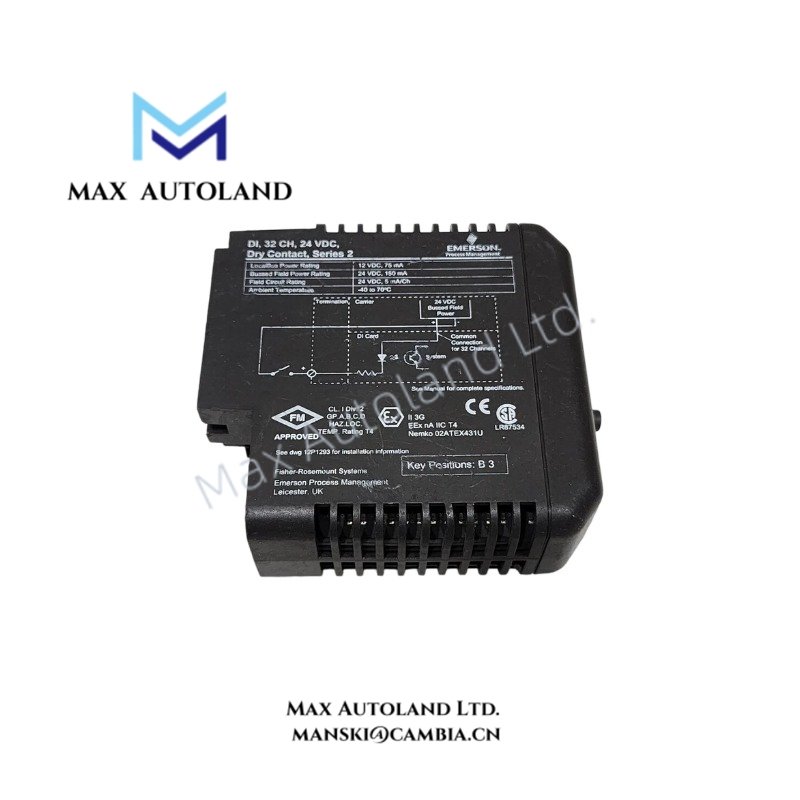

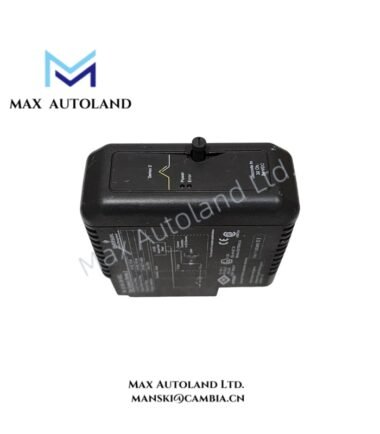

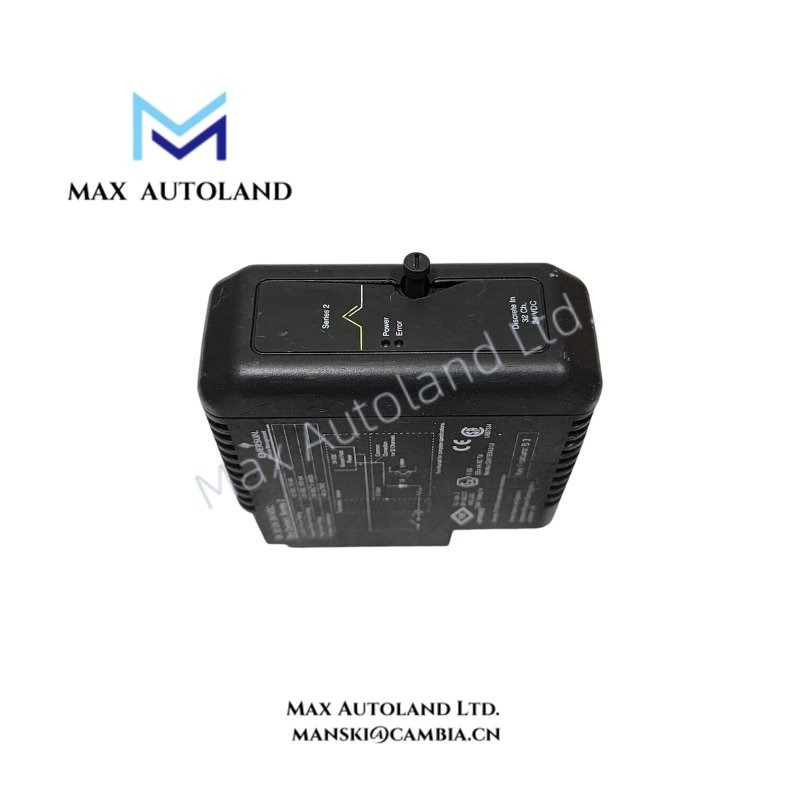

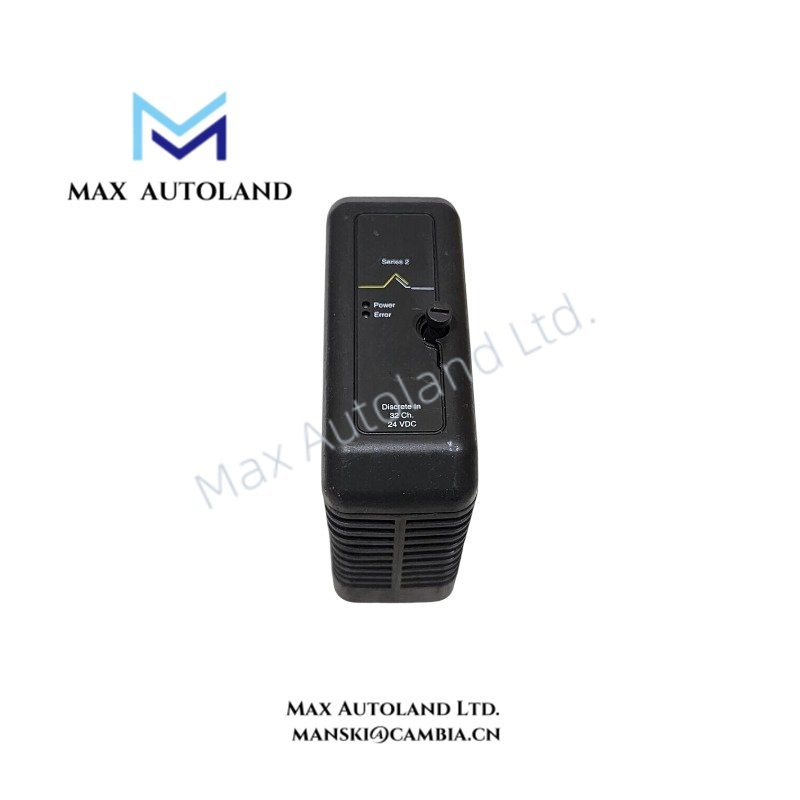

Configured for 24 VDC discrete signal acquisition in the Emerson DeltaV system, the Emerson KJ3203X1-BA1 (KJ3203X1-BA1 Discrete Input Module) provides direct electrical monitoring of 32 field contact input channels.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3203X1-BA1 |
| Brand | Emerson |
| Product Type | 32-Channel Discrete Input Module |
| System Platform | Emerson DeltaV Distributed Control System |
| Origin | USA |
| Weight | 0.1 kg |
| Dimensions | 5.1 cm x 16.5 cm x 3.8 cm |
| Channel Count | 32 discrete input channels |
| Input Type | 24 VDC discrete input |
| Field Circuit Rating | 24 VDC @ 5 mA per channel |
| Bussed Field Power | 24 VDC @ 150 mA |
| LocalBus Power | 12 VDC @ 75 mA |
| Input Voltage Range | 21.6 to 26.4 VDC |
| Isolation | Optical isolation between field signals and module electronics |
| Operating Temp | -40 to +70 deg C |
| Storage Temp | -40 to +85 deg C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Hazardous Area Certification | Class I Division 2 Groups A, B, C, D; II 3G Ex nA IIC Gc |
| Terminal Block Key Position | B3 |
Channel Isolation and Process Interface Characteristics
The KJ3203X1-BA1 uses optically isolated input channels to separate field wiring conditions from DeltaV controller electronics. Therefore, the module reduces signal disturbance caused by external switching events and field circuit variations.
The module monitors two-state electrical conditions from dry contacts and 24 VDC field devices. Each input channel receives a discrete status signal and transfers the processed state through the DeltaV I/O subsystem.
For Emerson process control applications, the module design supports channel-to-channel isolation requirements commonly used in distributed control installations. Additionally, the hardware architecture allows integration with DeltaV terminal block assemblies using mechanical keying to prevent incorrect module placement.
Frequently Asked Questions
Q: How many discrete signals can the Emerson KJ3203X1-BA1 process?
A: The KJ3203X1-BA1 processes 32 independent discrete input channels with 24 VDC field signal capability.
Q: Does the KJ3203X1-BA1 provide electrical isolation for field inputs?
A: Yes. The module uses optical isolation to separate field input circuits from internal DeltaV electronics.
Q: Can the KJ3203X1-BA1 be replaced while the system is operating?
A: The module supports DeltaV hot-swap procedures in permitted installation conditions. Users must follow system maintenance procedures and hazardous area restrictions before replacement.
Field Installation Guidelines
- Install the KJ3203X1-BA1 in the designated DeltaV I/O carrier position with the correct keyed terminal block configuration.
- Verify field wiring polarity and voltage levels before connecting 24 VDC discrete input circuits.
- Route low-level signal wiring separately from high-current power conductors to reduce electrical interference.
- Connect cable shields according to the site grounding standard and avoid creating multiple ground paths.
- Confirm terminal block compatibility before module replacement to prevent mechanical mismatch.
- Inspect environmental conditions, enclosure protection, and hazardous area certification requirements before installation.
