Overview

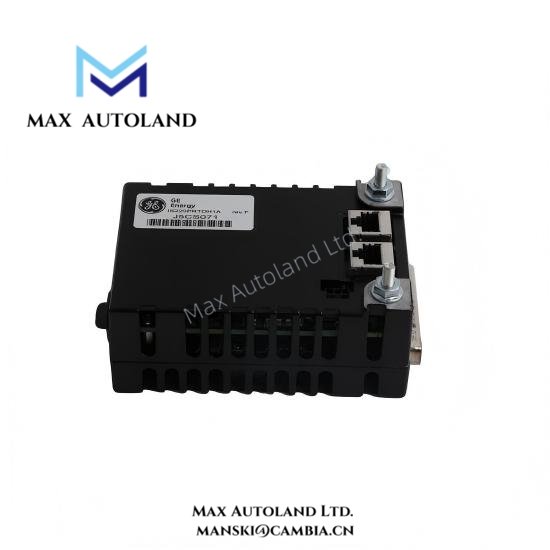

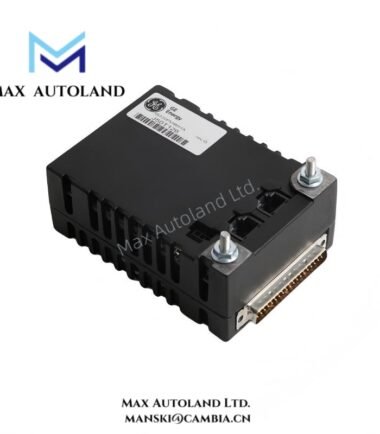

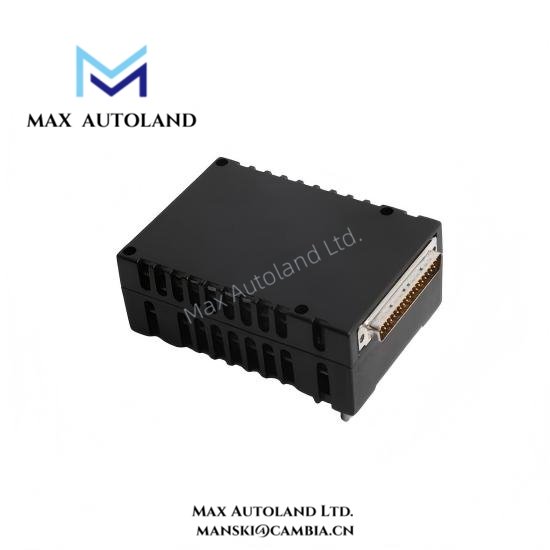

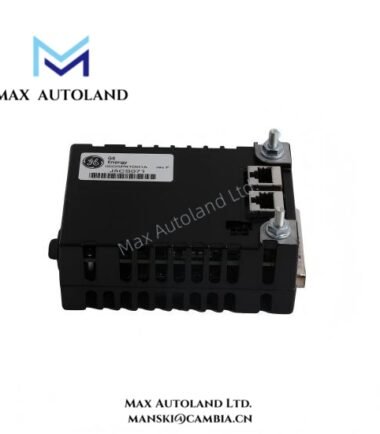

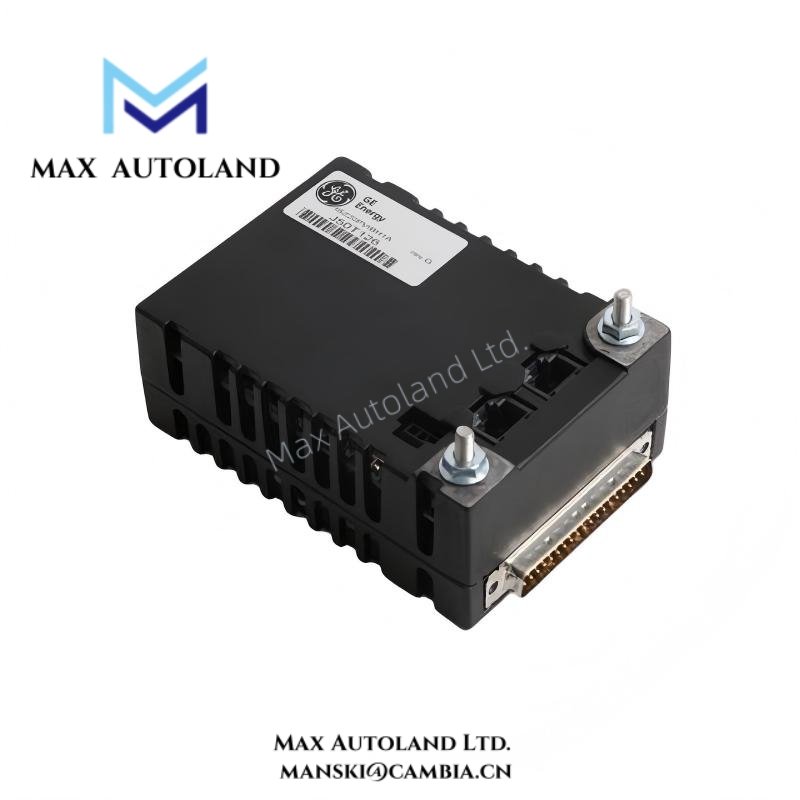

The IS220PVIBH1A is a high-performance vibration monitoring I/O module specifically designed for GE Mark VIe Turbine Control Systems. It delivers accurate vibration data to safeguard turbines and other rotating machinery. GE engineered this module for reliable operation in harsh industrial environments while supporting real-time diagnostics and alarm functions.
This module integrates multiple vibration channels, advanced signal conditioning circuits, and onboard energy storage. Its compact architecture allows easy installation in standard 19-inch racks. The design ensures signal integrity, rapid processing, and stable operation under varying loads.
Specification
| Parameter | Specification | Details |
|---|---|---|
| Manufacturer | GE (General Electric) | World-leading turbine control and monitoring solutions provider. |
| Model | IS220PVIBH1A | Vibration Monitor I/O Pack fully compatible with Mark VIe systems. |
| Series | Mark VIe | Supports advanced turbine and machinery monitoring functions. |
| PCB Type | Vibration Monitoring Module | Multi-layer PCB with high-density analog and digital circuits. |
| Dimensions | 220 mm × 120 mm × 40 mm | Compact, rack-mountable design for 19-inch slot integration. |
| Weight | 0.90 kg | Lightweight but reinforced for industrial vibration resistance. |
| Input Channels | 8 vibration inputs | Accepts accelerometer and velocity sensor signals with high fidelity. |
| Output Channels | 4 alarm outputs | Relay-driven outputs compatible with turbine protection systems. |
| Processor | Dual microcontroller cores | Processes vibration data in real-time with redundancy. |
| Memory | Onboard non-volatile memory | Stores configuration, thresholds, and historical event logs. |
| Energy Storage | 120 mF capacitor bank | Ensures stable voltage during transient disturbances. |
| Mounting | Rack-mounted, standard 19-inch slot | Includes locking connectors for secure installation. |
| Operating Temperature | -20°C to 70°C | Designed for turbine halls and industrial environments. |
| Humidity Tolerance | 5% – 95% non-condensing | Maintains performance in varying humidity conditions. |
| Compliance | CE, UL, RoHS | Meets international safety and environmental standards. |
| Typical Lifespan | 10+ years | Long-term reliability for continuous turbine monitoring. |
| Diagnostics | Integrated monitoring points | Supports GE software diagnostics and real-time vibration analysis. |
FAQ
Q1: Is the IS220PVIBH1A brand new and factory original?
A1: Yes, it is 100% brand-new and factory-original GE product.
Q2: How fast can you ship this module?
A2: Shipping occurs within 3 days to 2 weeks depending on order size.
Q3: Which shipping options are available?
A3: We typically use DHL, FedEx, or UPS for secure delivery.
Q4: Can I return the module if it has quality issues?
A4: Yes, we support returns within 30 days for any manufacturing defects.
Q5: How many vibration input channels does it support?
A5: It provides 8 vibration inputs and 4 alarm output channels.
Q6: Can it operate in harsh industrial environments?
A6: Yes, it functions reliably from -20°C to 70°C and 5–95% humidity.
