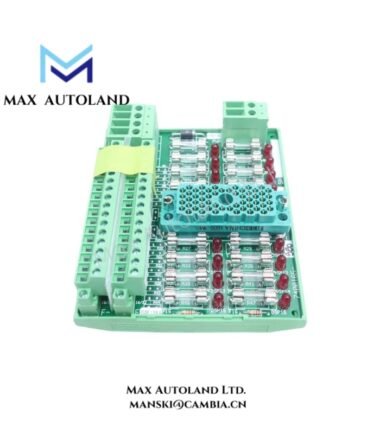

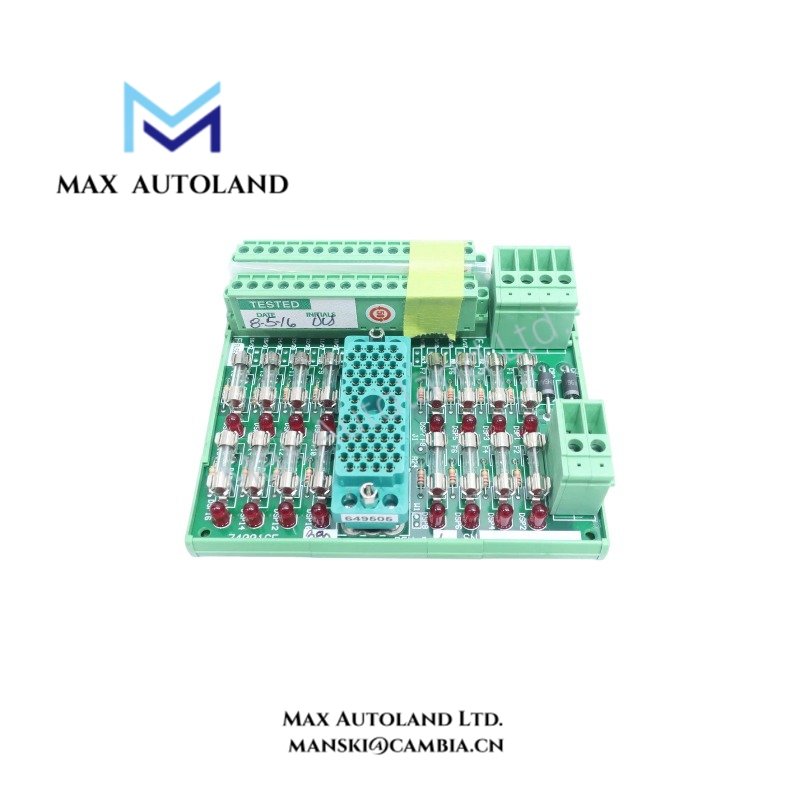

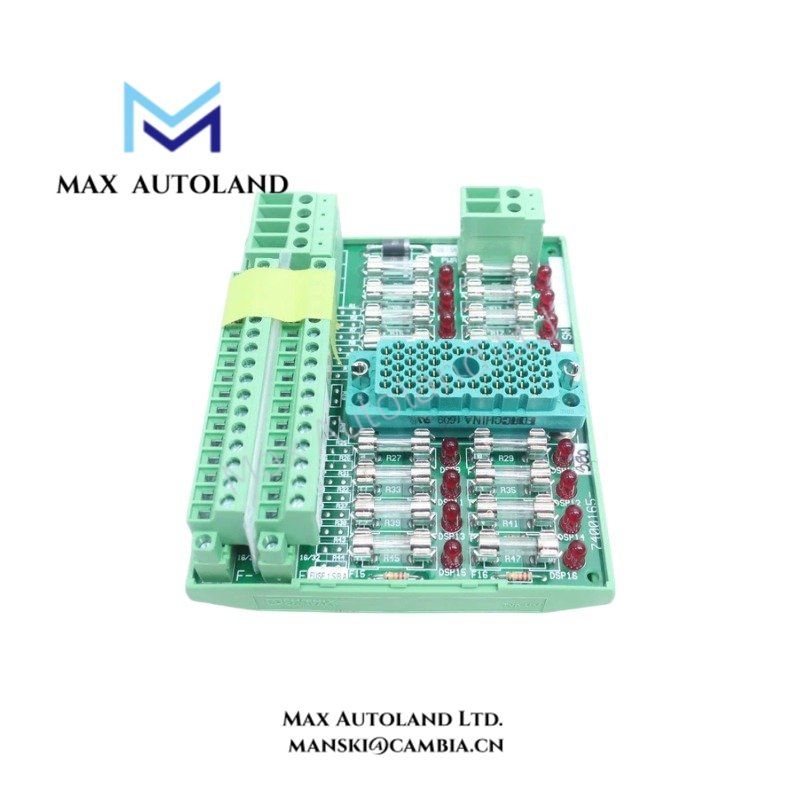

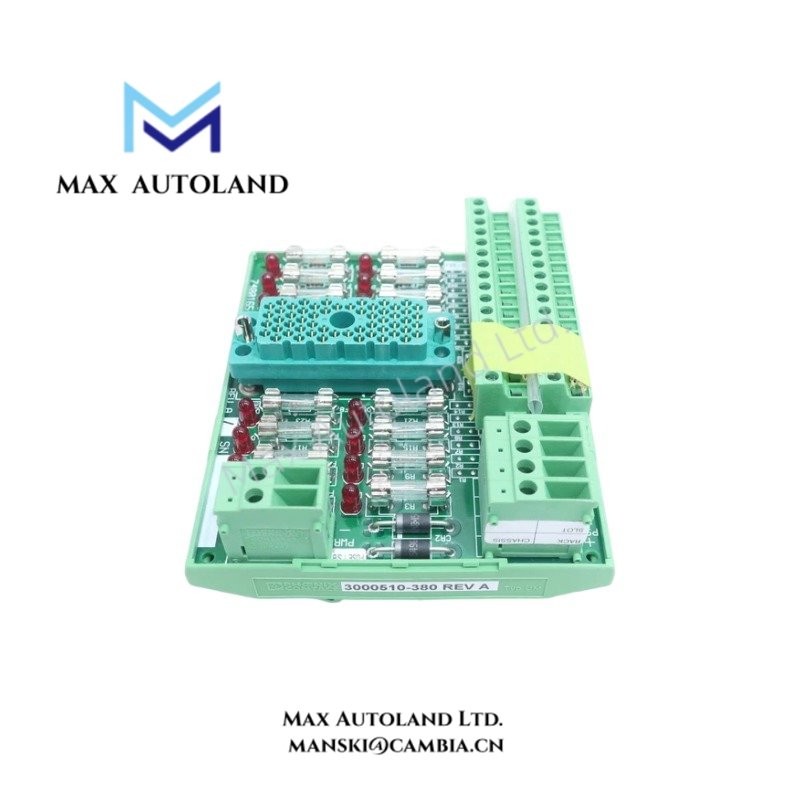

Invensys Triconex 7400165-380 / 9543-810 Terminal Panel / Baseplate Module Assembly

Overview

Configured for field-wire termination and signal distribution in Triconex Tricon TMR Safety Systems, the Invensys Triconex 7400165-380 / 9543-810 (9543-810 Terminal Panel / Baseplate Module Assembly) provides the physical interface between field cabling and Tricon safety-system hardware.

Suffix Breakdown & Model Matrix

The supplied information identifies 7400165-380 and 9543-810 as associated part/model references for the same Terminal Panel / Baseplate Module Assembly. The available data does not define an individual suffix coding scheme. Therefore, no additional suffix interpretation is assigned.

Hardware Specifications

Tricon TMR Field Termination Architecture

The assembly provides a physical termination point between field wiring and the Triconex safety-system hardware. The terminal blocks organize incoming and outgoing conductors and maintain defined wiring points within the chassis or rack installation.

The supplied configuration identifies compatibility with a Tricon TMR architecture. However, the assembly itself functions as a termination and baseplate interface rather than a standalone TMR processing module.

The specified screw or clamp terminal arrangement supports mechanical retention of field conductors. Therefore, installation should match the terminal assignment and wiring schedule defined for the associated Tricon system configuration.

The supplied data also identifies an application environment rated for SIL 3 safety systems. The complete SIL capability depends on the certified system architecture, application logic, field wiring, and connected safety functions rather than on the terminal assembly alone.

Frequently Asked Questions

Q: What are the two references associated with this assembly?
A: The supplied information identifies 7400165-380 as the part number and 9543-810 as the associated model number.

Q: What type of field connection does the assembly provide?
A: The supplied specifications identify heavy-duty screw or clamp terminal blocks for field-wire connection.

Q: Is the assembly a TMR processing module?
A: No. The supplied information identifies it as a Terminal Panel / Baseplate Module Assembly used within a Tricon TMR system. It does not identify the assembly as a standalone TMR processing module.

Field Installation Guidelines

Install the assembly in the designated Triconex chassis or rack position. First, verify the complete part and model references against the system hardware documentation.

Next, confirm terminal assignments before connecting field conductors. Route signal wiring according to the project wiring specification and maintain suitable separation from high-voltage and high-noise conductors.

Terminate cable shields according to the site grounding and instrumentation specification. Avoid unintended ground paths through shield connections.

Before commissioning, inspect the mechanical mounting, terminal block condition, conductor retention, polarity, and wiring identification. Then verify continuity against the approved wiring schedule before applying the associated system power.

Do not substitute a visually similar terminal panel or baseplate without confirming its exact part number, terminal arrangement, and compatibility with the installed Tricon system configuration.
