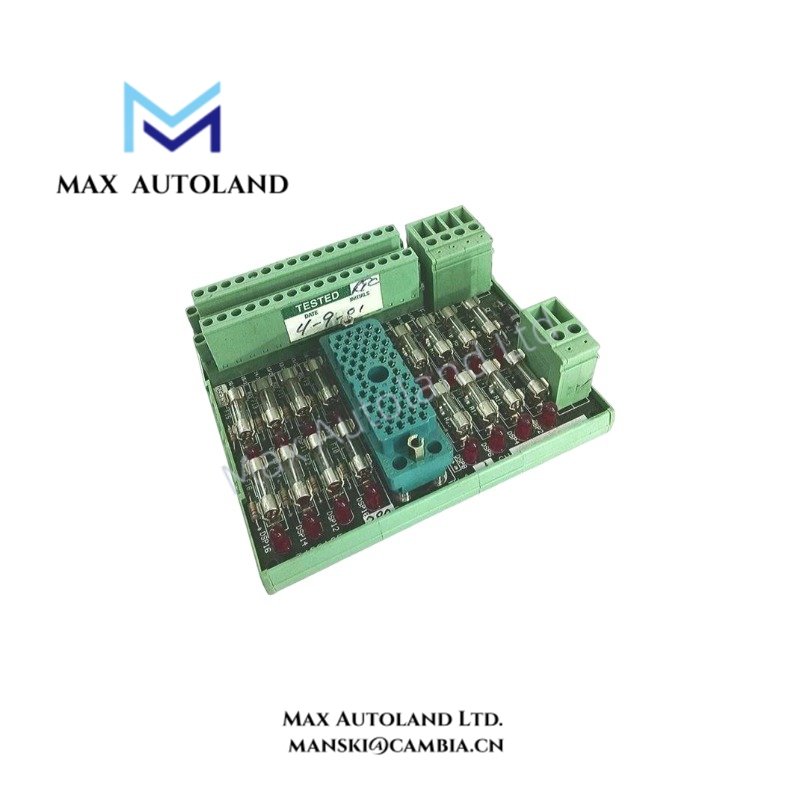

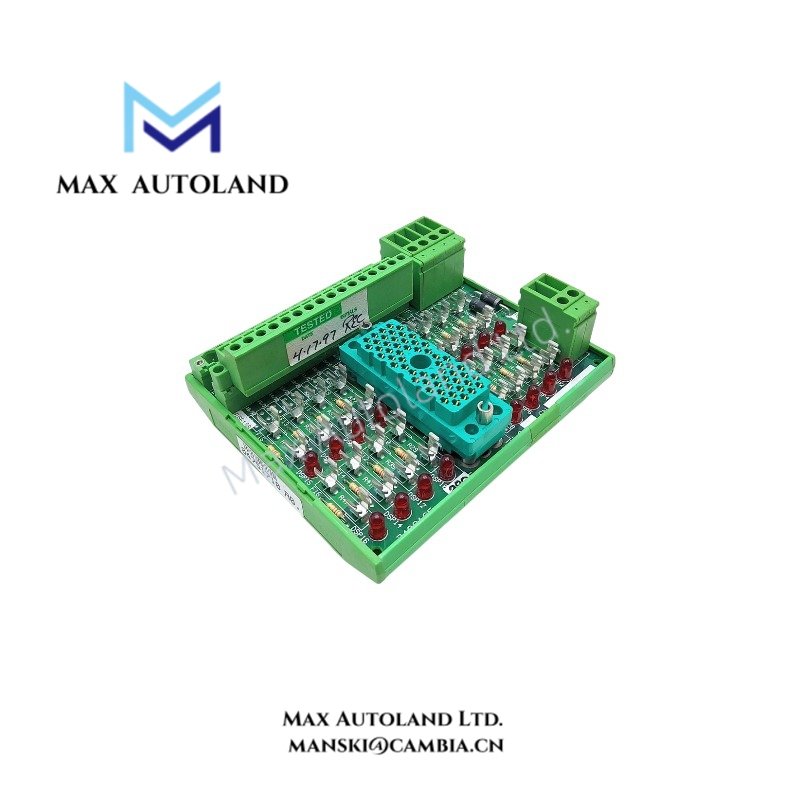

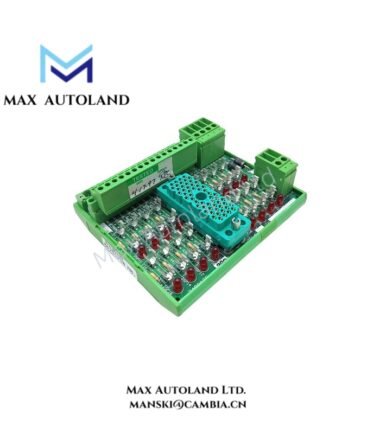

Invensys Triconex 7400165-380 / 9563-8XX Terminal Board / Digital Input Terminal Panel

Overview

The Invensys Triconex 7400165-380 / 9563-8XX (9563-8XX Digital Input Terminal Panel / Terminal Board) provides physical field-wiring termination and signal routing between discrete field devices and Triconex Safety Instrumented System hardware.

Suffix Breakdown & Model Matrix

The supplied information identifies 7400165-380 as a Terminal Board / Termination Panel and 9563-8XX as a Digital Input Terminal Panel / Board series. The supplied data specifically cites 9563-810 as an example variant.

The available information does not define the electrical meaning of each 8XX suffix. Therefore, the suffix should not be decoded beyond the supplied series identification.

Hardware Specifications

Triconex SIS Digital Input Termination

The 7400165-380 provides the physical termination interface for field wiring. Its supplied electrical limits are 30 VDC maximum and 10 A maximum current.

The 9563-8XX series provides a digital input termination interface for discrete field signals. These signals can originate from switches, pushbuttons, or discrete sensors before entering the Triconex safety-system architecture.

The supplied description also specifies basic signal conditioning and electrical isolation for the 9563-8XX series. Therefore, the terminal hardware can separate field-side electrical disturbances from the core safety logic interface. However, the supplied information does not define the isolation voltage, filter time, or channel-to-channel isolation rating, so no additional numerical values are assigned.

The Triconex platform uses triple modular redundancy (TMR) at the system architecture level. The terminal panel or board should not, however, be treated as an independent TMR processing module. Its function remains field termination and signal interfacing.

Frequently Asked Questions

Q: What is the maximum voltage specified for the 7400165-380?
A: The supplied specification states a maximum voltage rating of 30 VDC.

Q: What maximum current is specified for the 7400165-380?
A: The supplied data specifies a maximum current of 10 A.

Q: Can the 9563-8XX suffix be decoded from the supplied information?
A: No. The supplied information identifies 9563-8XX as a series and 9563-810 as an example variant, but it does not define the electrical or mechanical meaning of each suffix position.

Field Installation Guidelines

Install the terminal board or panel at the designated Triconex field termination location. First, verify the complete part number and applicable system documentation before connecting conductors.

Next, identify each discrete input circuit against the approved wiring schedule. Confirm field-device type, conductor identification, polarity where applicable, and terminal assignment before energizing the circuit.

Keep discrete signal wiring separated from high-voltage power conductors and high-noise sources where the installation design permits. Route cables according to the site instrumentation and control-wiring specification.

Terminate cable shields according to the project grounding specification. Avoid unintended ground paths through shield connections and maintain the specified separation between field circuits.

Before commissioning, inspect terminal screws or clamps, conductor retention, wire labels, and mechanical mounting. Then perform continuity checks against the approved wiring documentation before applying field power.

For the 9563-8XX series, verify the exact suffix variant before replacement. Do not assume that all 9563-8XX variants have identical channel capacity, terminal assignments, or electrical characteristics
