Overview
Engineered with precision and robust materials, the 9662-810 ensures stable electrical connections, reduced wiring errors, and enhanced diagnostic capability. Moreover, it supports secure signal routing across redundant safety channels, making it an ideal choice for mission-critical applications where safety, reliability, and maintainability are essential.
Specification
| Category | Specification |
|---|---|

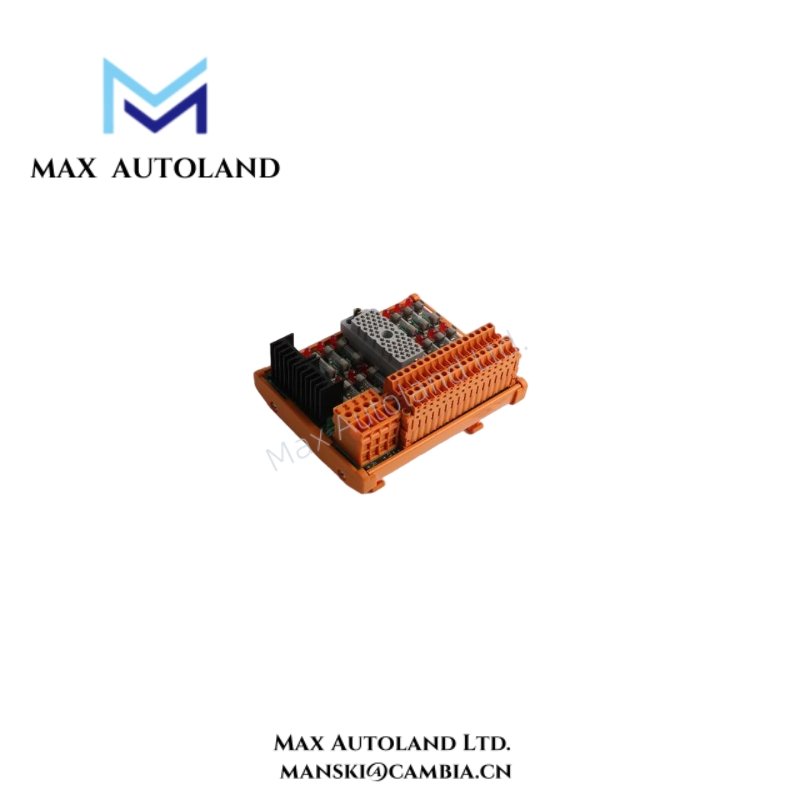

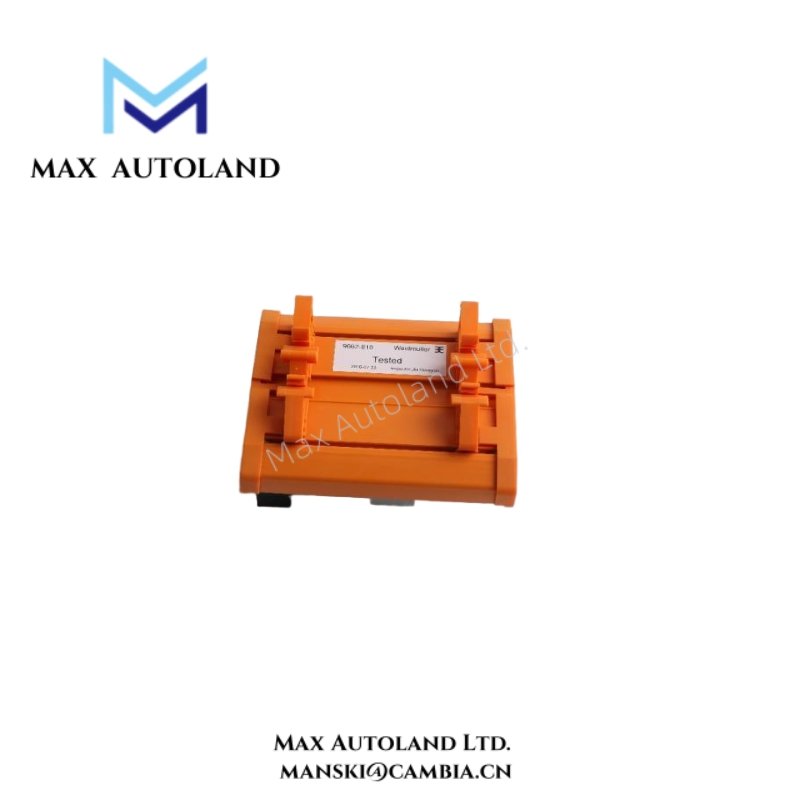

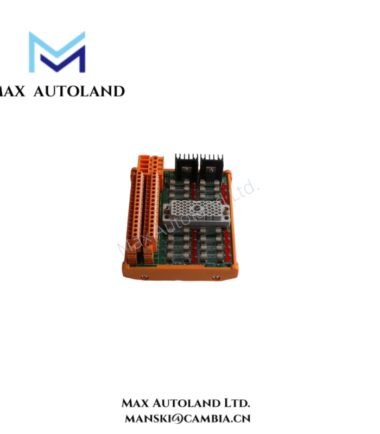

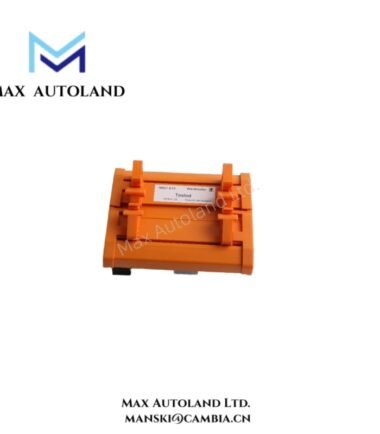

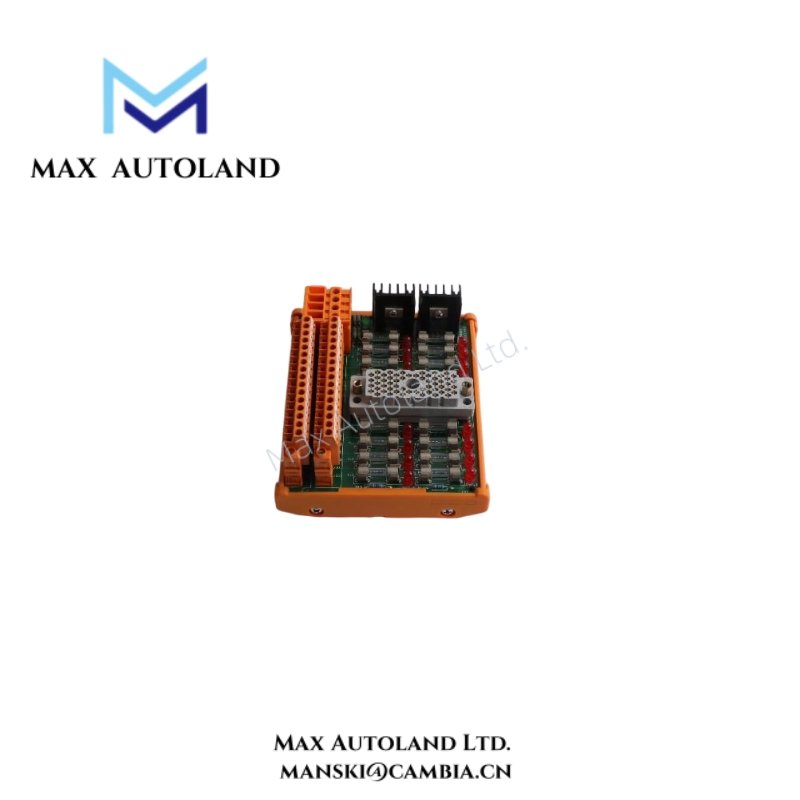

| Model | Triconex 9662-810 Panel Field Termination Module |
| Manufacturer | Schneider Electric (Invensys) |
| Function | Field signal termination for Triconex I/O modules |
| Signal Type | Analog / Digital |
| Channel Capacity | Up to 32 field connections per module |
| Interface Type | Plug-in terminal block connection |
| Operating Voltage | 24 VDC nominal (varies with I/O configuration) |
| Current Rating | Up to 2 A per channel |
| Mounting Type | Panel-mounted (DIN rail or chassis) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | −40°C to +85°C (−40°F to +185°F) |
| Humidity | Up to 95% non-condensing |
| Material | Industrial-grade aluminum and high-impact polymer housing |
| Certifications | CE, UL, and CSA compliant |
FAQ
It serves as a field termination interface, connecting external process signals to Triconex I/O modules safely and efficiently.
Q2: Is the module compatible with all Triconex systems?
Yes. It is compatible with most Tricon and Trident systems, supporting both analog and digital I/O configurations.
Q3: Can it be used in hazardous environments?
Yes. With proper installation and certified enclosures, it meets industry safety and environmental standards.
Q4: How does this module improve maintenance efficiency?
The labeled terminal layout and modular design allow quick troubleshooting and replacement without system downtime.
