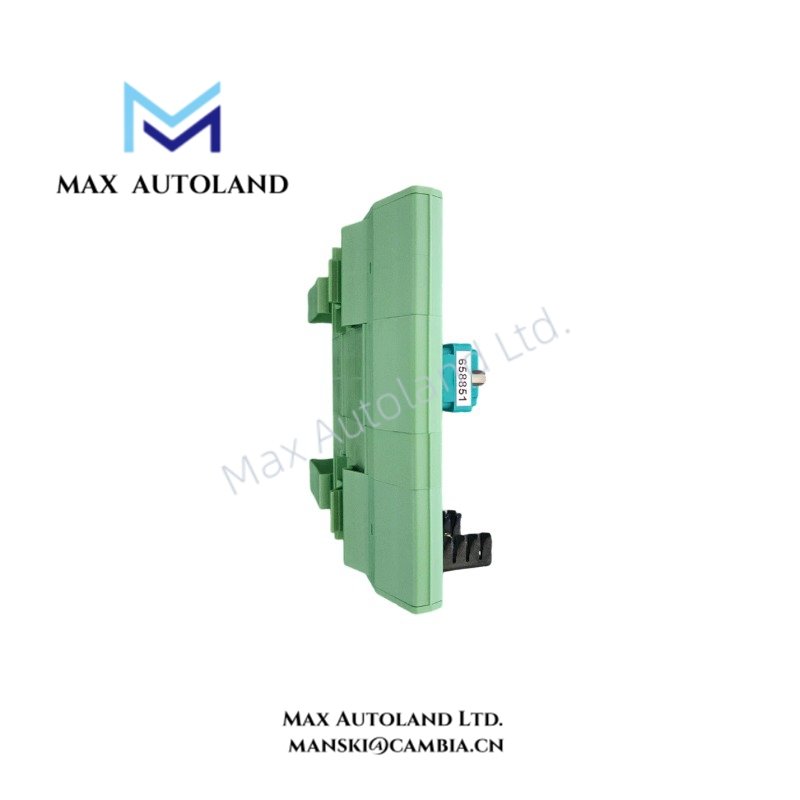

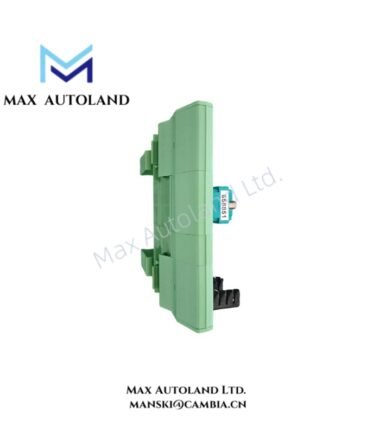

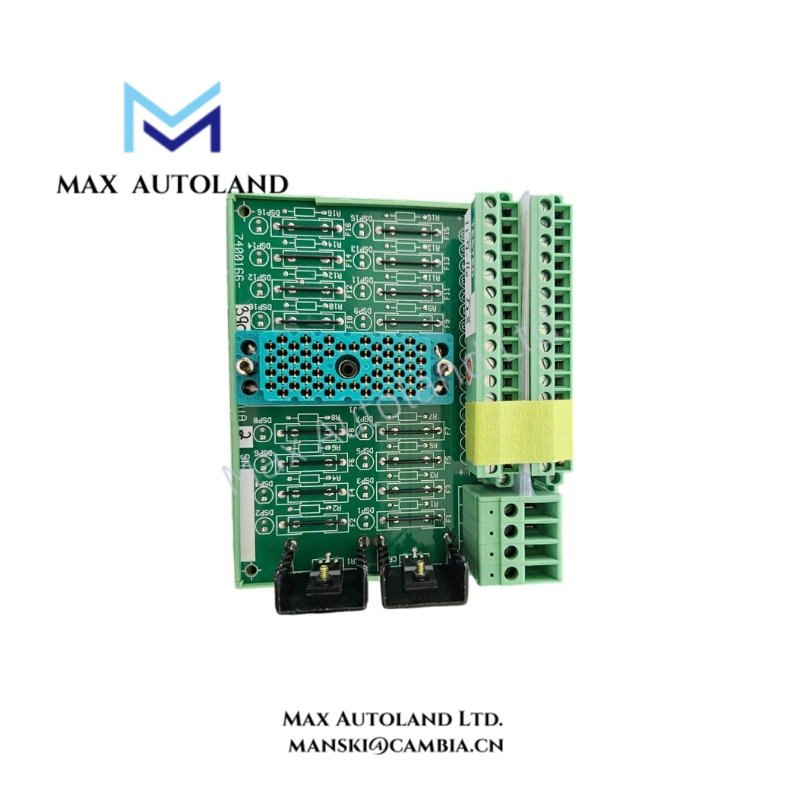

Invensys Triconex 3000520-390C1R Terminal Board / Interface Module

Overview

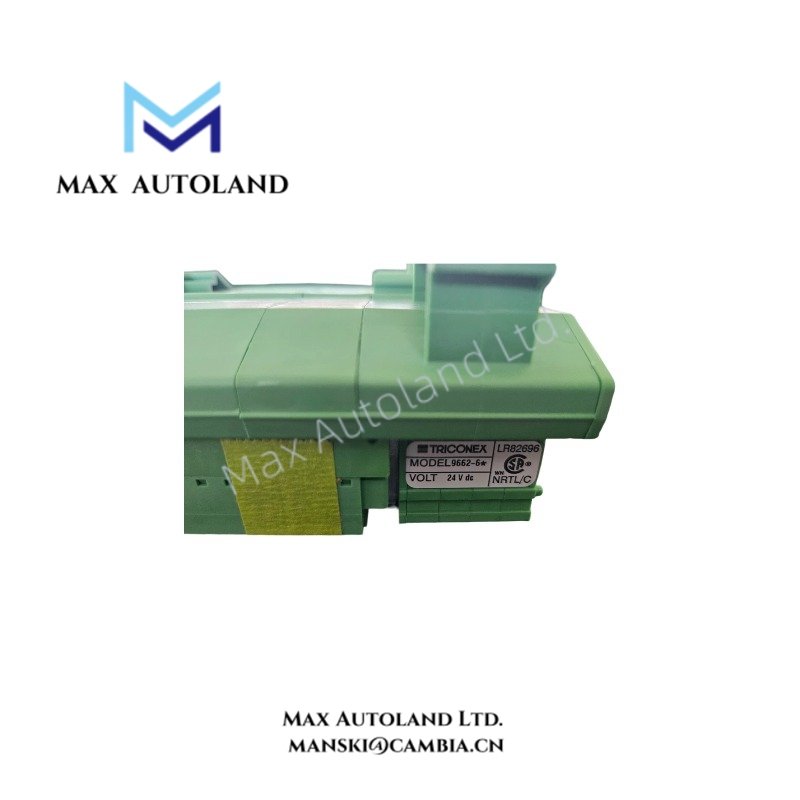

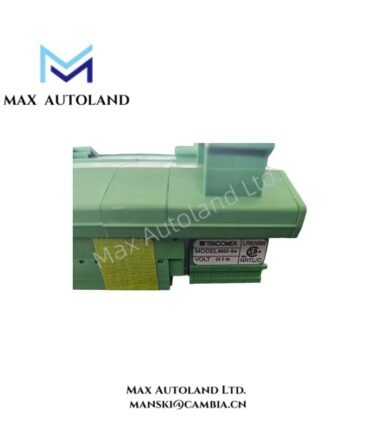

Configured for field signal termination in Triconex Safety Instrumented Systems, the Invensys Triconex 3000520-390C1R (3000520-390 Terminal Board / Interface Module) provides direct electrical interfacing between external field wiring and Tricon safety hardware. The assembly is associated with the 9662-6xx termination panel series, including 9662-610 configurations.

Hardware Specifications

Triconex SIS Signal Interface

The 3000520-390C1R provides a physical termination point for field wiring connected to Triconex safety hardware. Therefore, installation must preserve the intended channel assignment and wiring topology.

The supplied information associates this hardware with digital and analog termination arrangements. However, the exact signal type depends on the installed sub-variant and termination configuration. Do not assign channel functions from the part number alone.

For Triconex safety applications, the termination hardware forms part of a larger fault-tolerant control architecture. The terminal assembly itself should not be treated as an independent SIL rating or as a standalone safety function.

Galvanic isolation, channel architecture, and fail-safe behavior depend on the connected Triconex I/O hardware and the complete termination arrangement. Verify these characteristics against the installed system documentation before wiring.

Frequently Asked Questions

Q: Can the 3000520-390C1R be treated as a standalone I/O module?
A: No. The supplied information identifies it as a terminal board / interface component. Its function depends on the associated Triconex termination and I/O hardware.

Q: Does 3000520-390C1R define the field signal type by itself?
A: No. The supplied data associates the assembly with digital and analog interfacing, but the exact signal configuration depends on the installed variant and connected hardware.

Q: Does the supplied data specify hot-swap operation?
A: No. Hot-swap capability is not specified. Follow the installed Triconex system documentation and site isolation procedures before removing or replacing the assembly.

Field Installation Guidelines

• Verify the complete 3000520-390 / 3000520-390C1R identification against the existing hardware and project documentation.
• Confirm the associated 9662-6xx termination panel and installed Triconex I/O configuration before wiring.
• Maintain the documented field channel assignment during replacement.
• Route signal wiring separately from high-voltage power and high-current switching conductors where site wiring practices require segregation.
• Maintain shield continuity and grounding according to the system wiring documentation and the site’s instrumentation grounding scheme.
• Inspect terminal connections for loose conductors, damaged insulation, contamination, or mechanical stress before energization.
• Confirm connector orientation and mechanical seating before applying system power.
• Do not assume hot-swap capability unless the applicable Triconex hardware documentation explicitly permits live replacement.
• After installation, verify field continuity and channel identification before returning the associated safety loop to service.
