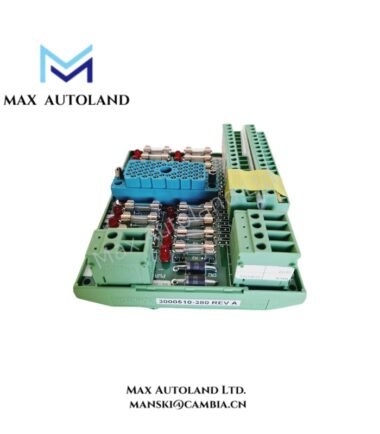

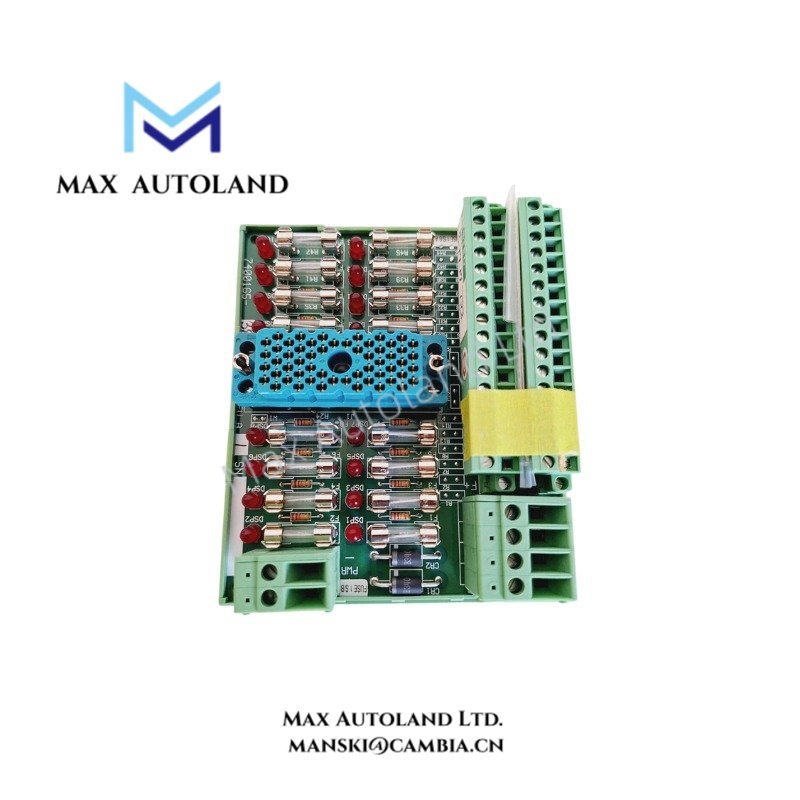

Invensys Triconex 3000510-380 Safety Controller Module

Overview

Configured for deterministic safety logic execution in Triconex safety instrumented systems, the Invensys Triconex 3000510-380 (3000510 Safety Controller Module) provides parallel processor execution within a Triple Modular Redundant architecture. The module processes safety instructions through three 32-bit CPU paths and supports continuous control execution without dependence on a single processor path.

Hardware Specifications

TMR Safety Processing and Fault-Tolerant Execution

The 3000510-380 uses a Triple Modular Redundant architecture with three 32-bit CPU paths. Each processor executes safety instructions in parallel. Therefore, the processing architecture does not depend on a single CPU path for controller execution.

The supplied data identifies TMR operation as the basis for redundant processor operation. System-level diagnostics, voting, and fault handling depend on the complete Triconex hardware configuration and application logic.

For SIS and ESD applications, the controller executes configured safety logic within the stated response-time characteristic. The supplied specification identifies a response time under 10 ms. However, the complete loop response also depends on installed I/O modules, application logic, field devices, and system configuration.

Frequently Asked Questions

Q: Does the 3000510-380 use a TMR processor architecture?
A: Yes. The supplied data identifies three 32-bit CPUs operating in a Triple Modular Redundant architecture.

Q: What operating temperature is specified for the 3000510-380?
A: The supplied data specifies an operating range of -20 deg C to 60 deg C.

Q: Does the supplied data specify module power consumption?
A: No. The supplied data does not provide a specific power-consumption value. The applicable Triconex hardware documentation should be used for chassis load calculations.

Field Installation Guidelines

Install the 3000510-380 in the compatible Triconex chassis and follow the installed system hardware layout. First, verify the module identification, connector arrangement, and chassis compatibility before insertion.

Before energizing the system, inspect module seating and the backplane connection. Also verify cabinet bonding and associated I/O wiring. Keep safety-related signal wiring separated from high-voltage conductors and high-noise switching circuits.

Where shielded wiring is used, terminate and bond cable shields according to the applicable Triconex wiring specification. Avoid unintended ground loops caused by multiple shield termination points.

Next, verify the chassis power-supply capacity and installed module load before commissioning. Because the supplied data does not define module power consumption, use the applicable Triconex hardware documentation for the actual cabinet load calculation.

Finally, confirm processor, chassis, I/O, firmware, and application compatibility before replacement. For SIS or ESD service, complete the required diagnostic and functional checks before returning the safety loop to service.
