Overview

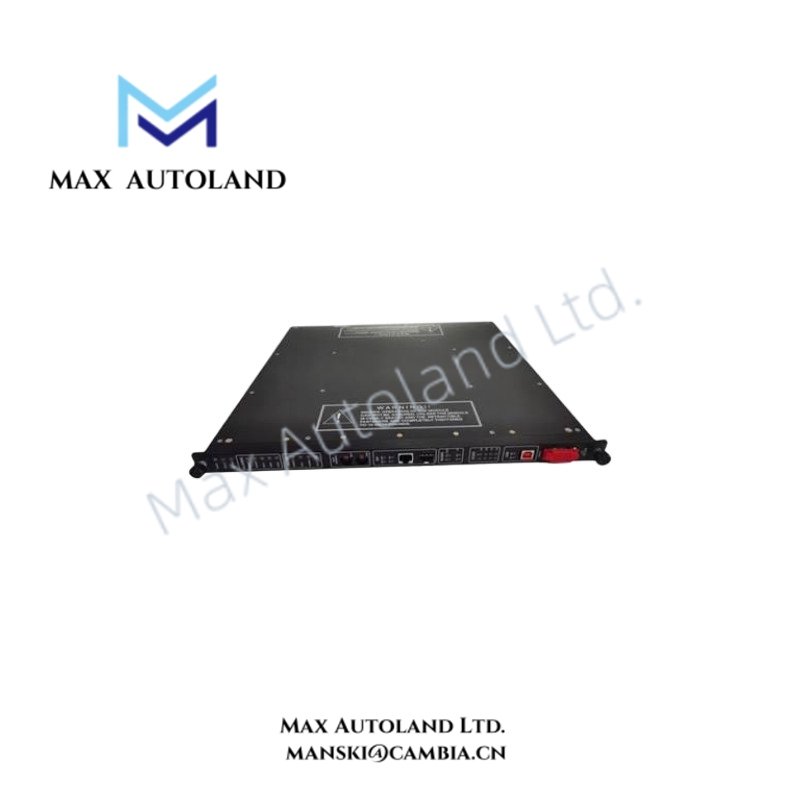

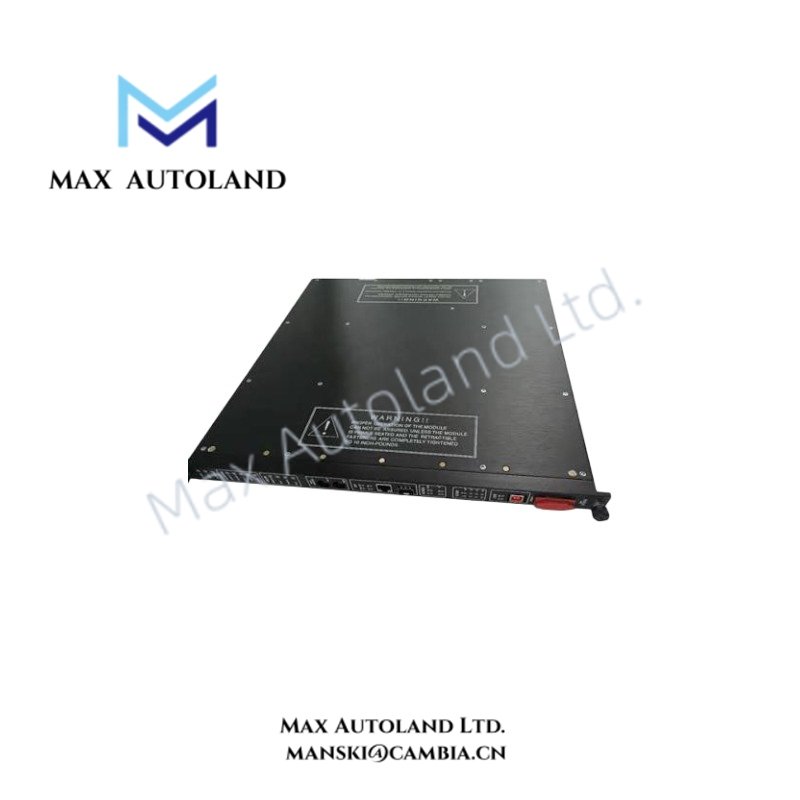

The Invensys Triconex 3515, also cataloged as the 3515 Pulse Totalizer Input Module, operates as a dedicated hardware component for high-speed pulse signal acquisition within Triconex Triple Modular Redundant (TMR) safety systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3515 |
| Brand | Invensys Triconex |
| Product Type | Pulse Totalizer Input Modules |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Less than 10 W logic power consumption |
| Module Function | Pulse Totalizer Input (PTI) / Pulse Input (PI) |
| System Architecture | Triple Modular Redundancy (TMR) |
| Number of Inputs | 32 channels, non-commoned |
| Input Isolation | Opto-isolated |
| Input Frequency Range | 0 Hz to 1 kHz, application dependent up to 20 kHz |
| Input Voltage Range | 5 VDC to 24 VDC nominal |
| Absolute Maximum Input Voltage | 42.5 VDC |
| Point Isolation | 1,500 VDC minimum |
| Off to On Switching Voltage | 15 VDC typical, 18 VDC worst case |
| On to Off Switching Voltage | 8 VDC typical, 6 VDC worst case |
| Maximum Count Capacity | 2,147,483,647 |
| Storage Temperature | -40 deg C to +85 deg C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Module Color Code | Purple |
TMR Safety Architecture and Galvanic Isolation
The Triconex 3515 uses Triple Modular Redundancy (TMR) 2oo3 architecture to process pulse input signals through independent redundant paths. Each input channel uses opto-isolation to separate field circuits from internal logic electronics.
Furthermore, the non-commoned input design maintains electrical separation between channels. This structure reduces signal interaction and supports fault detection during continuous system diagnostics.
The module supports SIL3 safety system configurations where pulse counting, rotating equipment monitoring, and flow measurement signals require fail-safe state execution. Diagnostic functions evaluate channel status and identify abnormal input conditions within the Tricon controller environment.
Frequently Asked Questions
Q: How many pulse input channels does the Triconex 3515 provide?
A: The 3515 provides 32 non-commoned pulse input channels with opto-isolated signal interfaces.
Q: What type of isolation does the 3515 pulse input module use?
A: The module uses opto-isolated inputs with a minimum point isolation rating of 1,500 VDC.
Q: Can the 3515 process high-speed pulse signals?
A: Yes. The module supports pulse input frequencies from 0 Hz to 1 kHz, with certain application configurations supporting higher frequency ranges.
Field Installation Guidelines
Install the Triconex 3515 module into the designated Tricon chassis slot and confirm proper backplane connection before system startup.
Use shielded cables for pulse signal wiring when installed in electrically noisy environments. Terminate cable shields according to the site grounding specification to reduce electromagnetic interference.
Keep pulse input wiring separated from high-voltage switching circuits and motor power cables. Verify input polarity and field voltage levels before connecting external devices.
Configure pulse input parameters through the Tricon engineering software environment. Confirm channel assignment, counting mode, and diagnostic status before placing the system into operation.
