Overview

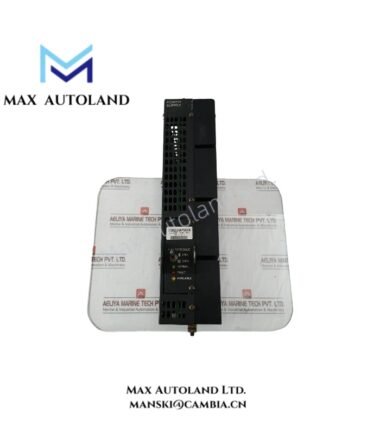

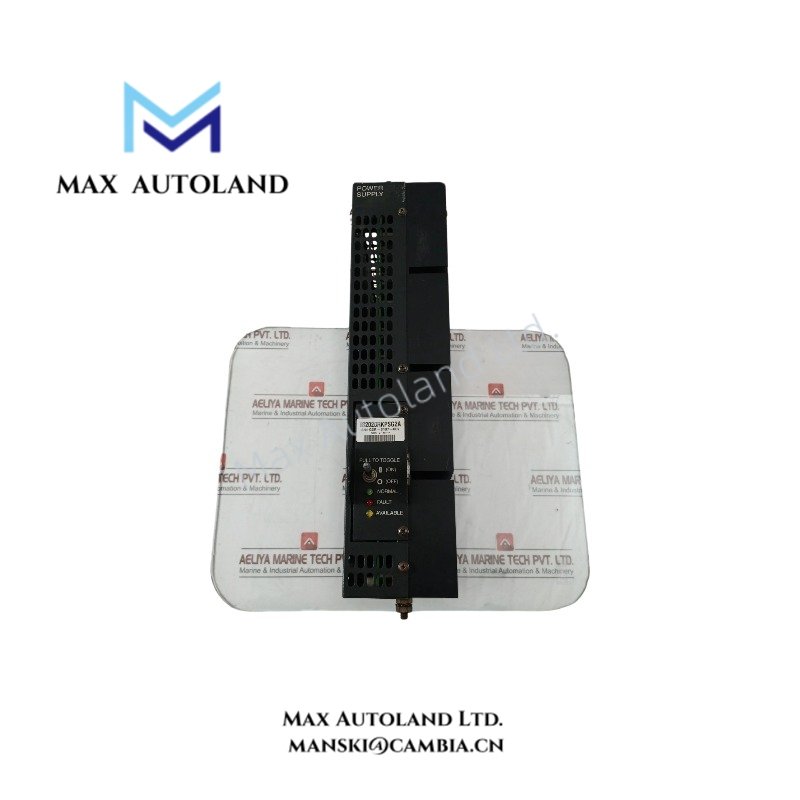

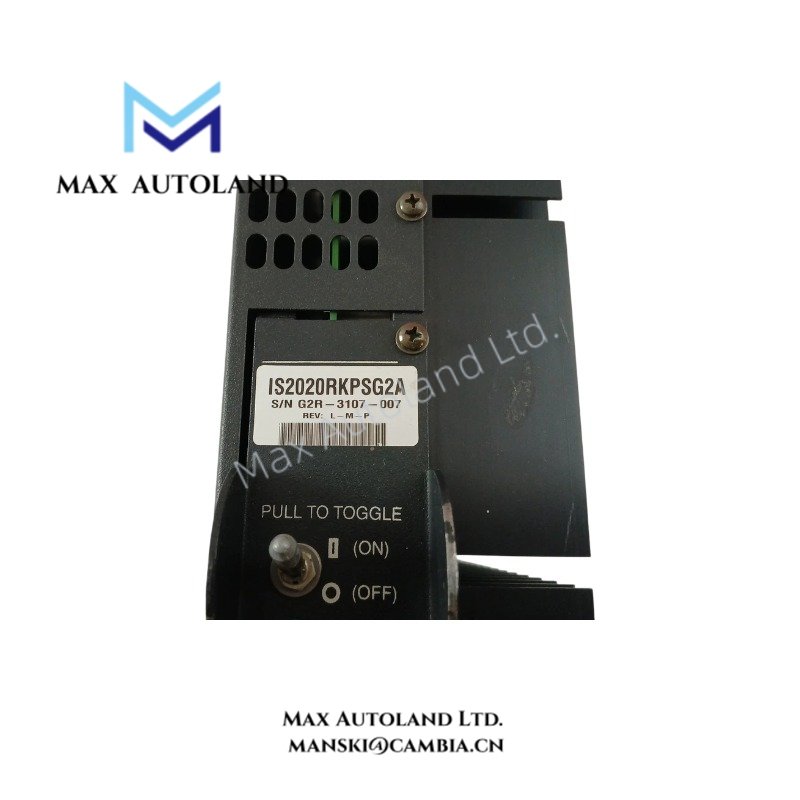

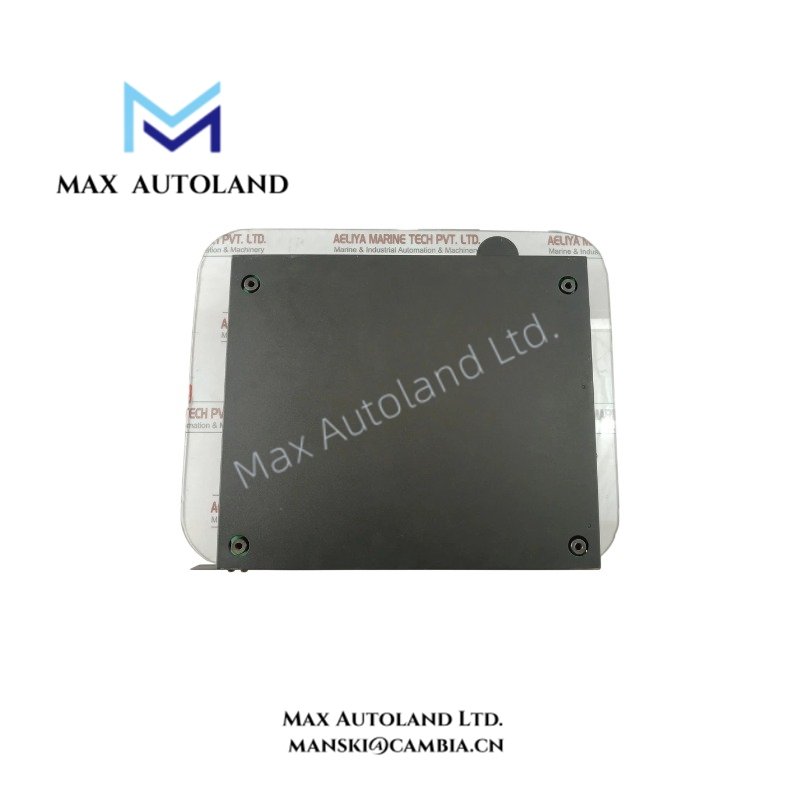

Configured for DC power conversion within the GE SPEEDTRONIC Mark VI Turbine Control system, the GE General Electric IS2020RKPSG2A (IS2020RKPSG2A VME Power Supply Module) converts the incoming supply into regulated module power. The RKPS module specifies a 400 W output rating and supports wide-range AC/DC input operation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS2020RKPSG2A |
| Functional Acronym | RKPS |
| Brand | GE General Electric |
| Series | SPEEDTRONIC Mark VI Turbine Control |
| Product Type | VME Power Supply Module |
| Functional Description | VME Power Supply Module |
| Input Voltage | 85-264 VAC auto-ranging / 120-300 VDC |
| Input Voltage Reference | 125 VDC |
| Output Rating | 400 W |
| AC Frequency | 47-63 Hz |
| Efficiency | >= 85% |
| Operating Temp | -20 to +70 deg C |
| Storage Temp | -40 to +85 deg C |
| Humidity | 5-95% RH, non-condensing |
| PCB Coating | Normal Coating |
| Dimensions | 8.5 x 34 x 38.5 cm shipping size |
| Weight | 7.1 kg |
| Origin | USA |
| Tariff Code | 8537101190 |
| Place of Shipment | Xiamen, China |
| Instruction Manual | GEI-100567 |
Power Conversion and Industrial Control Interface
The IS2020RKPSG2A functions as the RKPS VME power supply module within the Mark VI control architecture. It accepts either AC or DC input, depending on the installed power configuration.
For AC operation, the specified input range is 85-264 VAC with automatic ranging. The AC input frequency range is 47-63 Hz. For DC operation, the specified range is 120-300 VDC, while the functional description identifies 125 VDC as an input voltage reference.
The module provides a 400 W output rating. Its specified efficiency is at least 85%, which defines the relationship between input power and delivered output power under the applicable operating conditions.
The supplied environmental data specifies operation from -20 to +70 deg C and storage from -40 to +85 deg C. The allowable humidity range is 5-95% RH without condensation.
Frequently Asked Questions
Q: What is the rated output of the IS2020RKPSG2A?
A: The module has a 400 W output rating.
Q: What input voltages does the IS2020RKPSG2A support?
A: It supports 85-264 VAC with automatic ranging and 120-300 VDC. The supplied functional description also identifies 125 VDC as an input voltage reference.
Q: What are the specified operating environmental limits?
A: The operating temperature range is -20 to +70 deg C, with 5-95% RH non-condensing humidity. The storage temperature range is -40 to +85 deg C.
Field Installation Guidelines
- Verify the complete IS2020RKPSG2A model before installation.
- Confirm the selected input source matches the specified AC or DC input range.
- For AC operation, verify that the source frequency falls within the specified 47-63 Hz range.
- For DC operation, verify input polarity and voltage before energizing the module.
- Install the module according to the Mark VI system cabinet and VME rack configuration.
- Maintain appropriate separation between power wiring and low-level control or signal wiring.
- Secure all power connections and inspect terminals for proper mechanical retention before energizing.
- Provide cabinet ventilation consistent with the specified operating temperature range.
- Prevent condensation during operation because the specified humidity range applies to non-condensing conditions.
- Follow GE instruction manual GEI-100567 for system-specific installation and wiring procedures.
