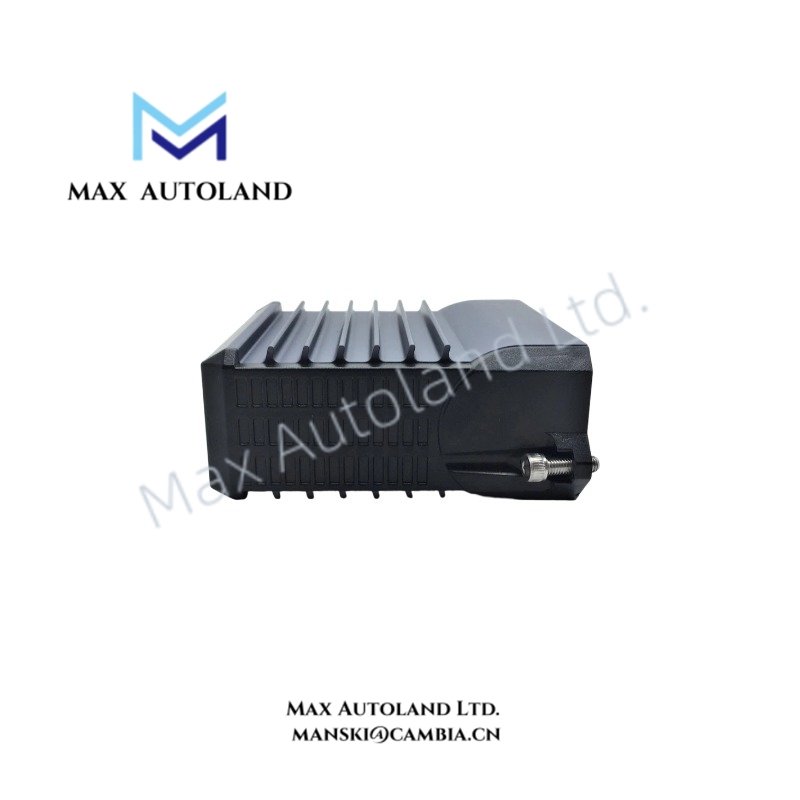

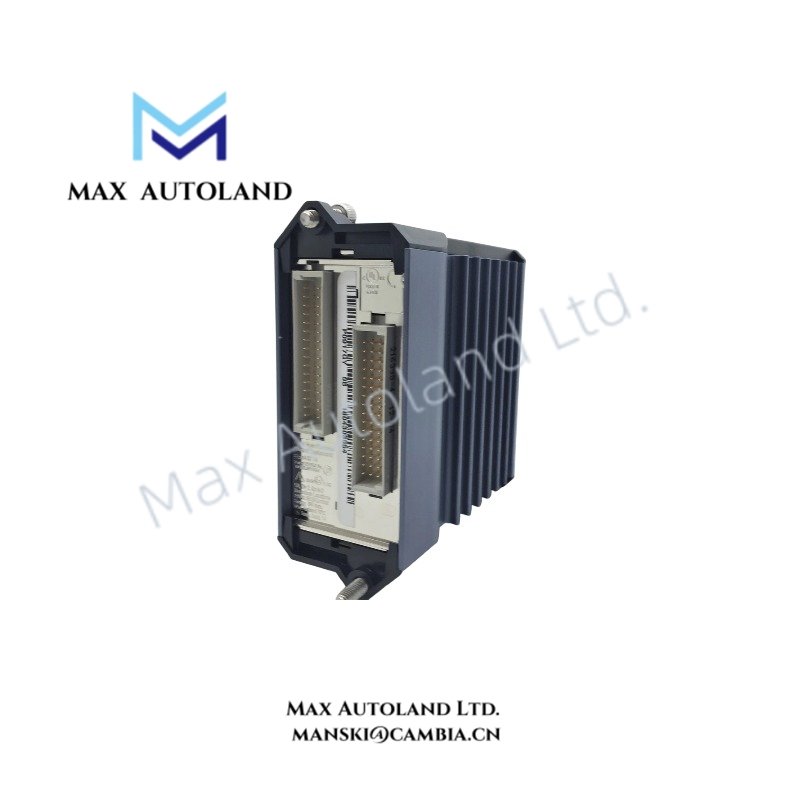

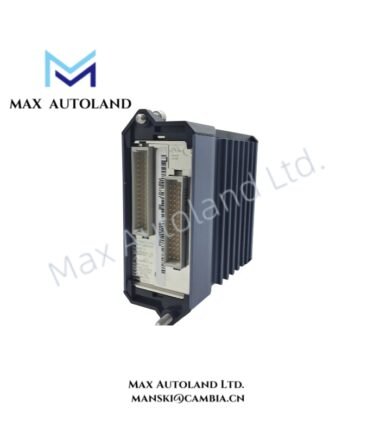

Overview
The Foxboro FBM207, also cataloged as the FBM207 Voltage Monitor / Contact Sense Input Module, provides discrete voltage monitoring and contact sensing functions within Foxboro I/A Series and EcoStruxure Foxboro DCS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM207 |
| Brand | Foxboro (Schneider Electric / Invensys) |
| Origin | USA |
| Module Type | Voltage Monitor / Contact Sense Input Module |
| System Compatibility | Foxboro I/A Series and EcoStruxure Foxboro DCS |
| Input Channels | 16 discrete input channels with channel-to-channel galvanic isolation |
| Input Signal Type | Voltage monitoring and contact sense input |
| On-State Voltage | 15 to 60 VDC |
| Off-State Voltage | 0 to 5 VDC |
| Input Current | 1.4 mA typical at 5 to 60 VDC |
| Pulse Rate | Up to 250 Hz without missing pulses |
| Filter / Debounce Time | Configurable 4 ms, 8 ms, 16 ms, 32 ms, or disabled |
| Power Supply | 24 VDC (+5%, -10%) from redundant baseplate power |
| Power Consumption | Maximum 3 W for FBM207 |
| Heat Dissipation | Maximum 5.5 W |
| Operating Temp | -20 deg C to +70 deg C |
| Storage Temp | -40 deg C to +70 deg C |
| Relative Humidity | 5% to 95% non-condensing |
| Environmental Rating | ISA-S71.04 Class G3 |
| Height | 102 mm / 114 mm with mounting lugs |
| Width | 45 mm |
| Depth | 104 mm |
| Weight | Approx. 284 g |
| Mounting | Modular Baseplate installation, DIN rail or rack mounting |
Channel Isolation and DCS Signal Processing
The FBM207 uses 16 individually isolated input channels to acquire field discrete signals from switches, contacts, and DC voltage sources. Each input channel processes the field state independently, which reduces ground loop effects and prevents signal interference between channels.
Additionally, the module supports configurable debounce filtering for sequence of events (SOE), ladder logic, and discrete control applications. The adjustable filtering parameters allow the controller to process mechanical contact transitions according to field device characteristics.

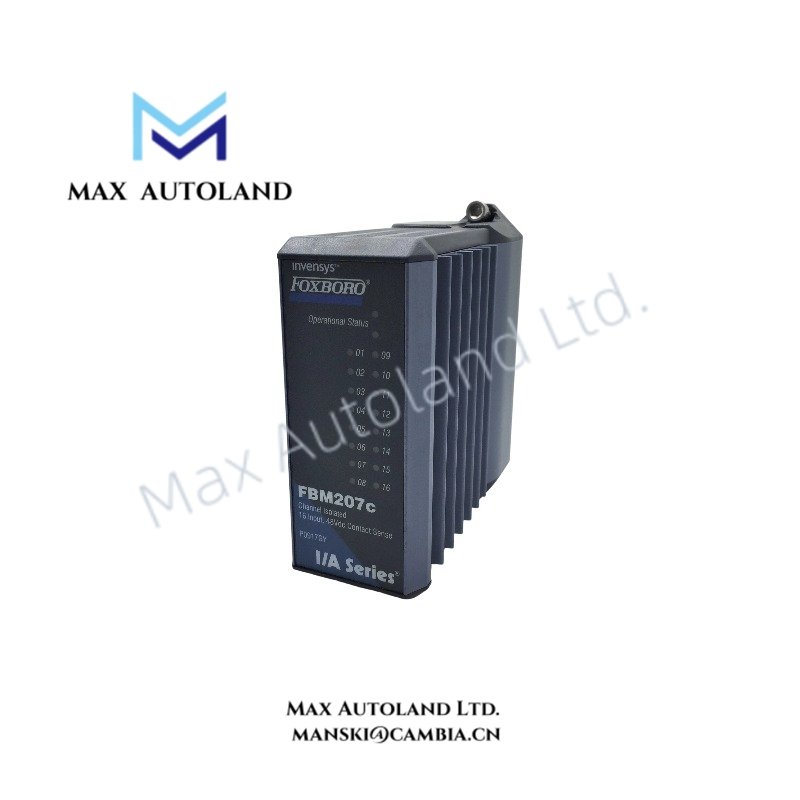

The FBM207 family includes voltage monitoring and contact sense variants. The FBM207 supports 15 to 60 VDC voltage monitoring, while FBM207b and FBM207c versions provide 24 VDC and 48 VDC contact sensing functions.
Channel-to-Channel Isolation and Process Control Interface
The Foxboro FBM207 follows Foxboro DCS I/O architecture with isolated field signal conditioning. Therefore, each input channel maintains electrical separation from adjacent channels while transferring processed discrete states to the control system.
Furthermore, the module applies channel isolation techniques similar to other Foxboro process I/O modules, where field wiring protection and signal integrity are maintained through dedicated input conditioning circuits.
The FBM207 does not process analog communication protocols such as 4-20 mA HART or FOUNDATION Fieldbus. Instead, it performs discrete voltage state detection for binary field devices connected through compatible termination assemblies.
Frequently Asked Questions
Q: How many discrete signals can the FBM207 process?
A: The FBM207 processes 16 discrete input channels. Each channel provides galvanic isolation for independent field signal acquisition.
Q: Can the FBM207 operate in redundant configurations?
A: Yes. The FBM207 supports single or paired redundant operation when installed with compatible Foxboro modular baseplate configurations.
Q: What type of field signals does the FBM207 accept?
A: The module accepts discrete DC voltage signals and contact sense inputs. The standard FBM207 monitors 15 to 60 VDC signals through compatible termination assemblies.
Field Installation Guidelines
- Install the FBM207 on a compatible Foxboro modular baseplate according to system hardware configuration requirements.
- Verify termination assembly selection before connecting field wiring because voltage ranges depend on the installed assembly type.
- Separate discrete input wiring from high-current power cables to reduce electrical interference.
- Connect cable shields according to the site grounding standard and avoid multiple grounding points that can create unwanted current paths.
- Confirm field device contact ratings and voltage levels before energizing input channels.
- Check baseplate power connections before module insertion and verify redundant power wiring when applicable.
- Follow Foxboro I/O cabinet grounding, spacing, and environmental installation requirements for ISA-S71.04 Class G3 environments.
