Overview

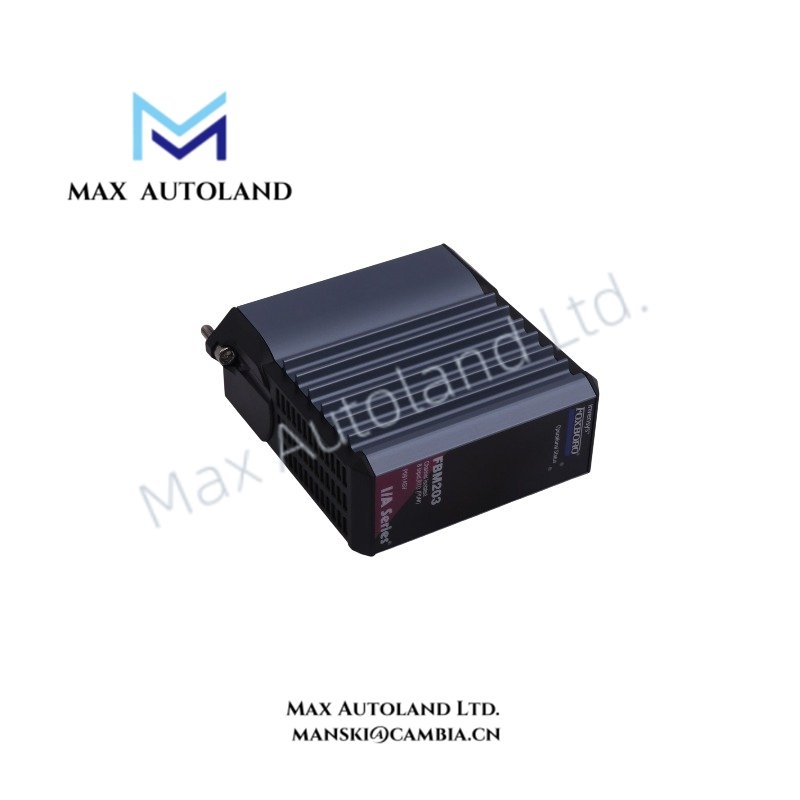

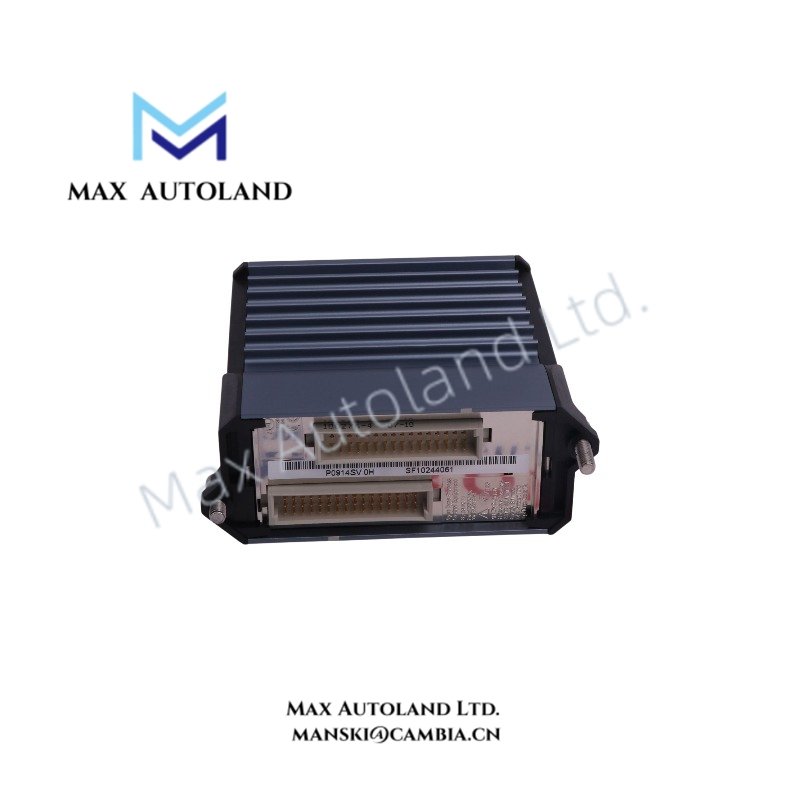

The Foxboro FBM203 P0914GR, also cataloged as the FBM203 RTD Input Module, operates as a dedicated hardware component for resistance temperature signal acquisition within the EcoStruxure Foxboro DCS system.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM203 P0914GR |
| Brand | Foxboro / Schneider Electric |
| Origin | USA |
| Module Type | 8 Channel Channel-Isolated RTD Input Module |
| Input Channels | 8 isolated RTD input channels |
| Sensor Type | 2 wire and 3 wire RTD sensors |
| Supported RTD Elements | Platinum 100 ohm and Nickel 235 ohm RTDs at 0 deg C |
| Input Resistance Range | 0 to 320 ohm |
| Sensor Current | 0.19 mA DC nominal |
| Lead Resistance | 50 ohm maximum per lead |
| A/D Conversion | Independent Sigma-Delta A/D converter per channel |
| Analog Accuracy | +/- 0.03% of span including linearity |
| Temperature Coefficient | +/- 50 ppm/deg C |
| Isolation Voltage | 600 VAC withstand for 1 minute channel-to-channel and channel-to-ground |
| Common Mode Rejection | >125 dB at 50/60 Hz |
| Normal Mode Rejection | >95 dB at 50/60 Hz |
| Input Voltage | 24 VDC (+5%, -10%) |
| Weight | Approx. 0.28 kg to 0.3 kg |
| Dimensions | 110 mm x 50 mm x 120 mm |
| Operating Temp | -20 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Relative Humidity | 5% to 95% non-condensing |
| Power Consumption | Approx. 2.5 W |
| Fieldbus Communication | Redundant 2 Mbps module fieldbus interface |
DCS RTD Channel Isolation and Signal Processing
The FBM203 P0914GR processes resistance temperature detector signals through eight independent input channels. Each channel uses individual Sigma-Delta A/D conversion to digitize RTD resistance measurements before transmission to the Foxboro DCS controller.
Additionally, the module provides channel-to-channel isolation and channel-to-ground isolation to reduce electrical interference. Therefore, the module maintains signal separation in installations with multiple temperature measurement points and different field grounding conditions.
The module supports Platinum 100 ohm and Nickel 235 ohm RTD sensors. It also accepts both 2 wire and 3 wire connection methods, while compensating for lead resistance within the specified input range.
Frequently Asked Questions
Q: Does the FBM203 P0914GR support independent channel isolation?
A: Yes. The module provides galvanic isolation between individual RTD input channels and between channels and system ground.
Q: What RTD sensor configurations can the FBM203 P0914GR accept?
A: The module accepts 2 wire and 3 wire RTD sensors, including Platinum 100 ohm and Nickel 235 ohm elements.
Q: How does the module connect with the Foxboro DCS controller?
A: The FBM203 P0914GR communicates through a redundant 2 Mbps module fieldbus interface connected to the Foxboro system architecture.
Field Installation Guidelines
Install the FBM203 P0914GR on the designated Foxboro I/O carrier according to the system hardware manual. Verify that the module receives the specified 24 VDC supply before connecting field wiring.
Use shielded instrumentation cables for RTD signal wiring and separate low-level temperature signal cables from high-voltage power conductors. Connect cable shields according to the site grounding standard to reduce electromagnetic interference.
Confirm RTD polarity and wiring configuration before commissioning. For 3 wire RTD connections, keep lead resistance balanced to maintain measurement accuracy.
Inspect terminal connections for proper mechanical engagement and verify that the module status indicators operate normally after system startup.
