Overview

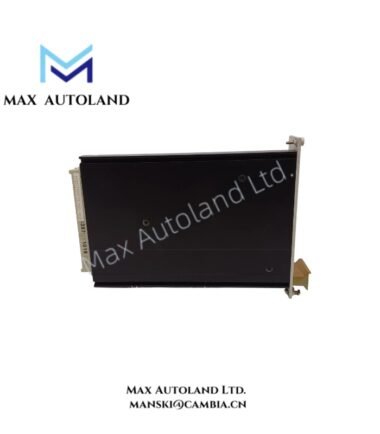

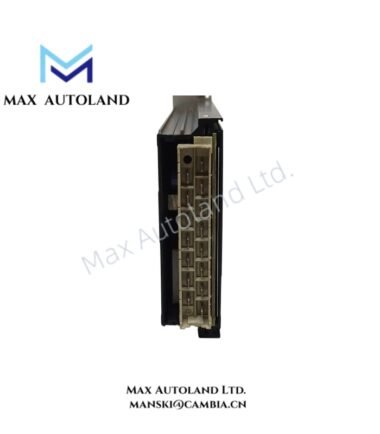

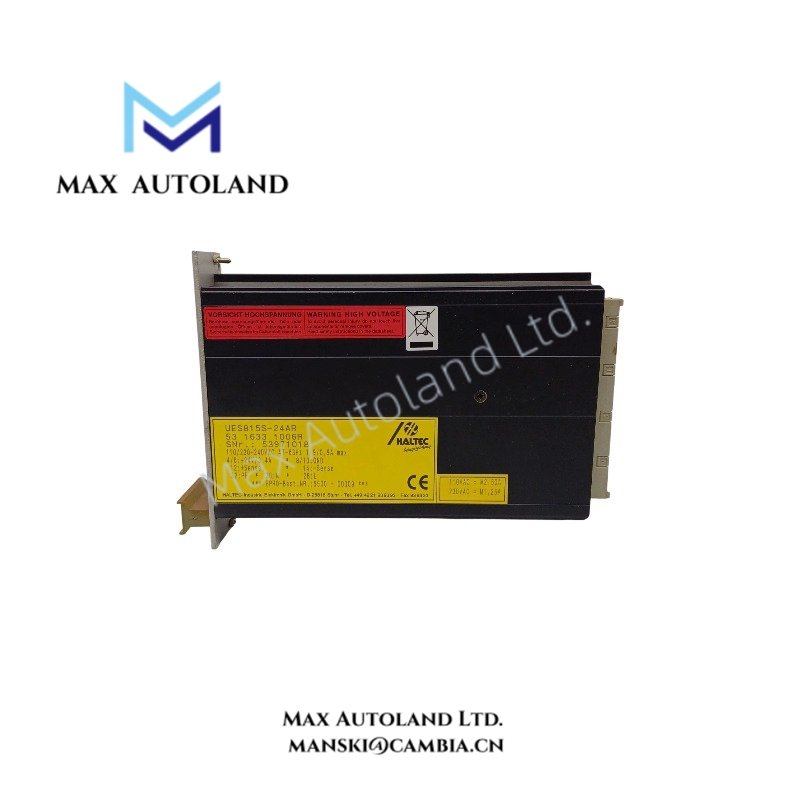

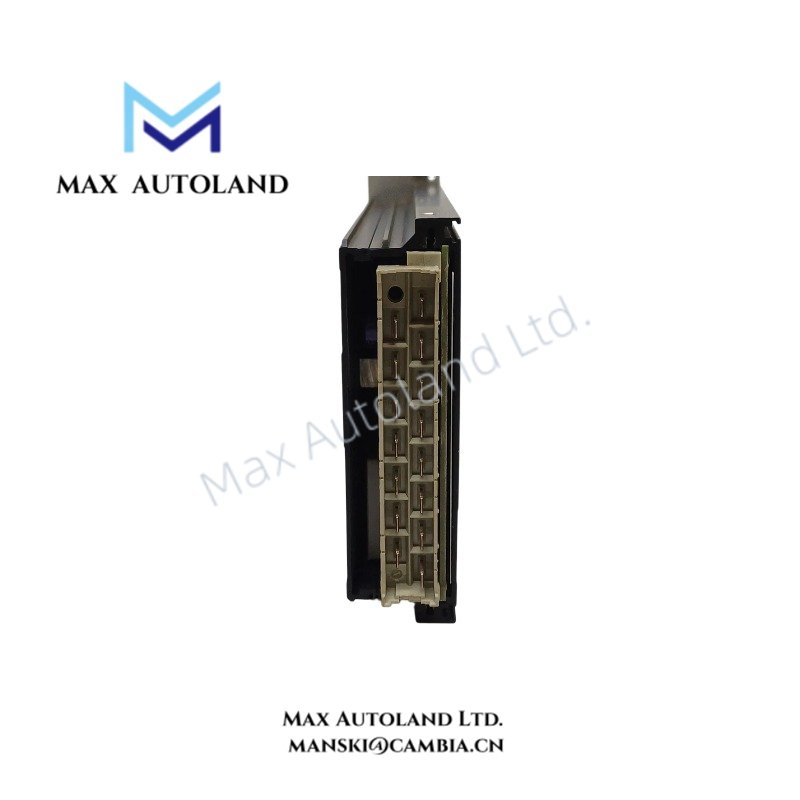

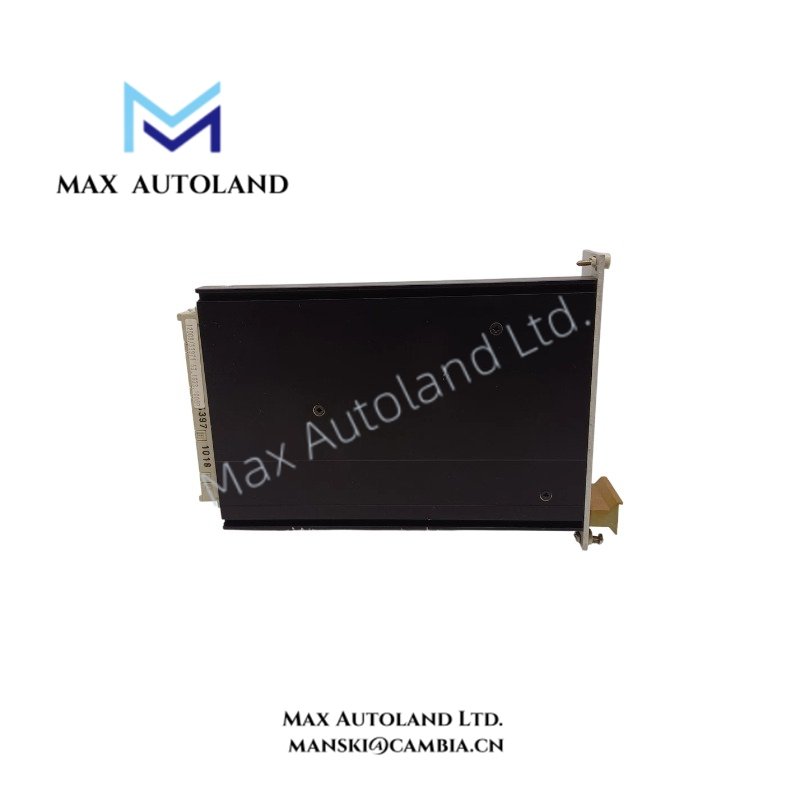

Configured for 24 VDC power conversion and distribution, the Epro UES815S-24A/24V (UES815S Power Supply) provides direct electrical power delivery within compatible industrial monitoring hardware. The supplied data identifies the unit as a power supply with a 24 V designation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | UES815S |
| Full Model | UES815S-24A/24V |
| Brand | Epro |
| Product Type | Power Supply |
| Origin | Germany |
| Weight | 0.7 kg |
| Dimensions | 28 x 23 x 4 cm estimated shipping size |
| Operating Temp | -20 deg C to +105 deg C |
| Storage Temp | -40 deg C to +125 deg C |
| Voltage Rating | 300 V AC / 300 V DC |
| Current Rating | 2 A per conductor |
| Conductors | 40 x 18 AWG |
| Length | 2.5 m +/- 0.05 m (8.2 ft) |
| Temperature Coefficient | < 0.02 % / deg C |
Power Supply Electrical Characteristics
The UES815S data specifies a 300 V AC / 300 V DC voltage rating and a 2 A current rating per conductor. The assembly contains 40 conductors using 18 AWG wire. The specified temperature coefficient is below 0.02 % / deg C.
The stated operating range extends from -20 deg C to +105 deg C. The storage range extends from -40 deg C to +125 deg C. Therefore, installation should keep the operating environment within the stated limits.
Frequently Asked Questions
Q: What voltage rating is specified for the UES815S?
A: The supplied specification lists 300 V AC / 300 V DC.
Q: What current can each conductor carry?
A: The specified current rating is 2 A per conductor.
Q: What cable construction is specified?
A: The supplied data specifies 40 x 18 AWG conductors with a length of 2.5 m +/- 0.05 m.
Field Installation Guidelines
Install the UES815S according to the equipment manufacturer’s wiring and enclosure requirements. First, verify the model and electrical rating against the system documentation. Then, route the conductors separately from high-current switching circuits where practical to reduce electrical interference.
Maintain secure mechanical support for the cable assembly and avoid sharp bends, excessive pulling force, or abrasion at entry points. Keep conductor insulation intact throughout installation.
Before energizing the assembly, verify conductor identification, terminal assignment, polarity where applicable, and protective grounding requirements against the applicable equipment wiring diagram. Also, confirm that the installation temperature remains within -20 deg C to +105 deg C.
