Overview

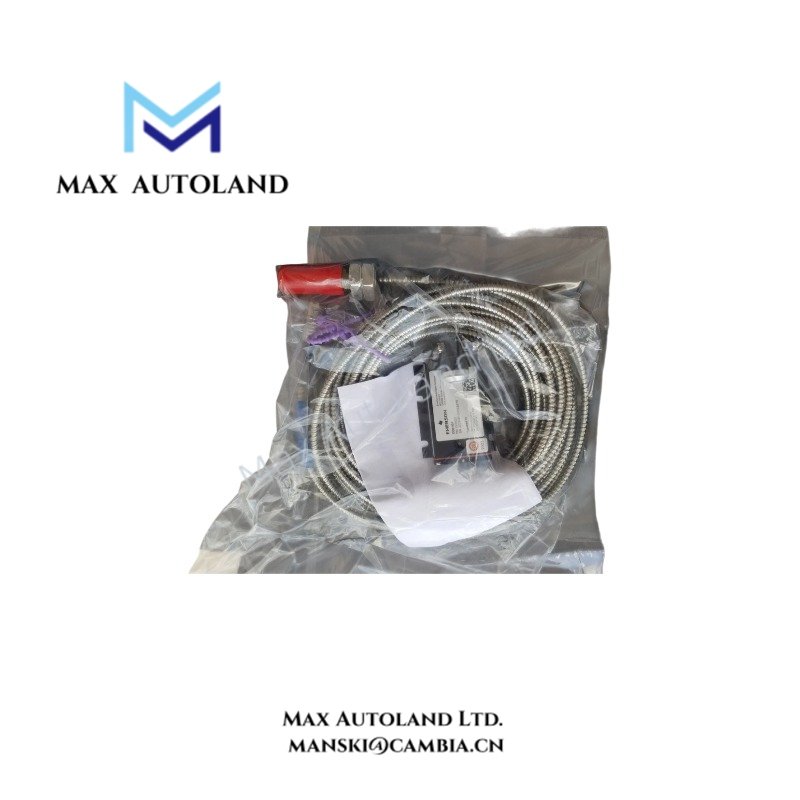

The Emerson EPRO CON021 + PR6423/000-030-CN, also cataloged as the PR6423/000-030-CN Eddy Current Sensor System, operates as a dedicated hardware component for non-contact shaft displacement and vibration measurement within EPRO machinery monitoring systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CON021 + PR6423/000-030-CN |
| Brand | Emerson EPRO |
| Origin | Germany |
| Operating Temp | -25 deg C to +85 deg C |
| Measurement Principle | Eddy current non-contact displacement measurement |
| Sensor Type | PR6423 proximity probe with CON021 signal converter |
| Measurement Function | Radial shaft vibration, axial displacement, and shaft position monitoring |
| Output Signal | Configuration dependent proportional voltage or current output |
| Mechanical Interface | Metric threaded probe mounting design |
| Protection Rating | IP65 for applicable converter housing configurations |
EPRO Eddy Current Measurement Characteristics
The PR6423/000-030-CN probe operates with an eddy current measurement principle to detect relative movement between the probe tip and conductive rotating targets. The CON021 converter conditions the high-frequency sensor signal and provides an industrial measurement output for machinery monitoring circuits.
The measurement chain requires correct probe gap adjustment and signal scaling before operation. Installation verification includes checking the probe output response against the mechanical position range. Proper shielding and separation from high-current power cables reduce electrical interference during signal transmission.
For turbomachinery monitoring applications, the system configuration supports evaluation of shaft vibration and displacement signals associated with rotor movement. The measurement circuit design requires stable probe installation, correct target surface conditions, and validated signal polarity.
Frequently Asked Questions
Q: What measurement principle does the PR6423/000-030-CN use?
A: The PR6423/000-030-CN uses an eddy current sensing principle to measure the distance between the probe tip and a conductive machine shaft surface without physical contact.
Q: What installation factors affect measurement accuracy?
A: Probe gap setting, target surface condition, cable routing, shielding connection, and mechanical mounting stability affect the accuracy of the displacement measurement loop.
Q: What is the function of the CON021 module in this assembly?
A: The CON021 signal converter processes the eddy current probe signal and converts it into a conditioned output signal for connection to machinery monitoring systems.
Field Installation Guidelines
Install the PR6423 probe with a rigid mechanical mounting arrangement to prevent movement during machine operation. Verify the probe orientation and sensing direction before commissioning.
Use shielded signal cables for the connection between the probe and converter. Connect cable shielding according to the site grounding design to reduce electromagnetic interference. Keep sensor wiring separated from motor power lines, inverter output cables, and high-voltage switching circuits.
Before startup, check the probe gap condition, converter wiring, and output signal response. Confirm that the measurement loop produces a stable signal across the expected shaft movement range before connecting the system to the final machinery protection logic.
