Overview

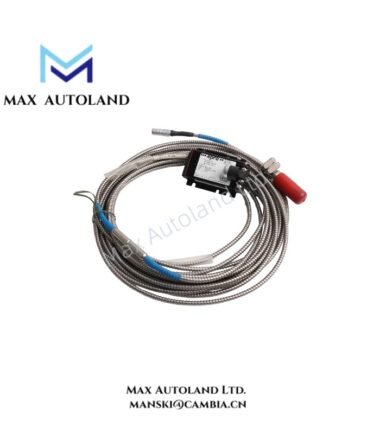

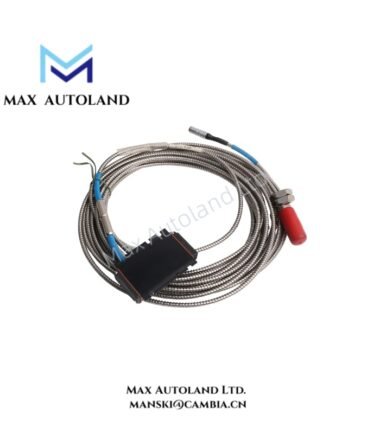

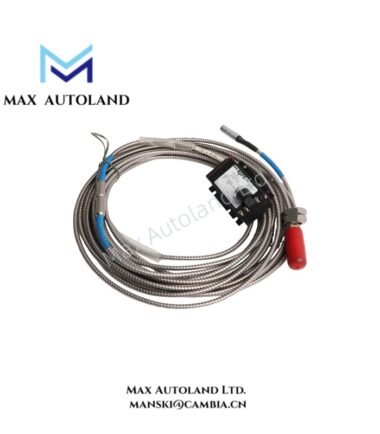

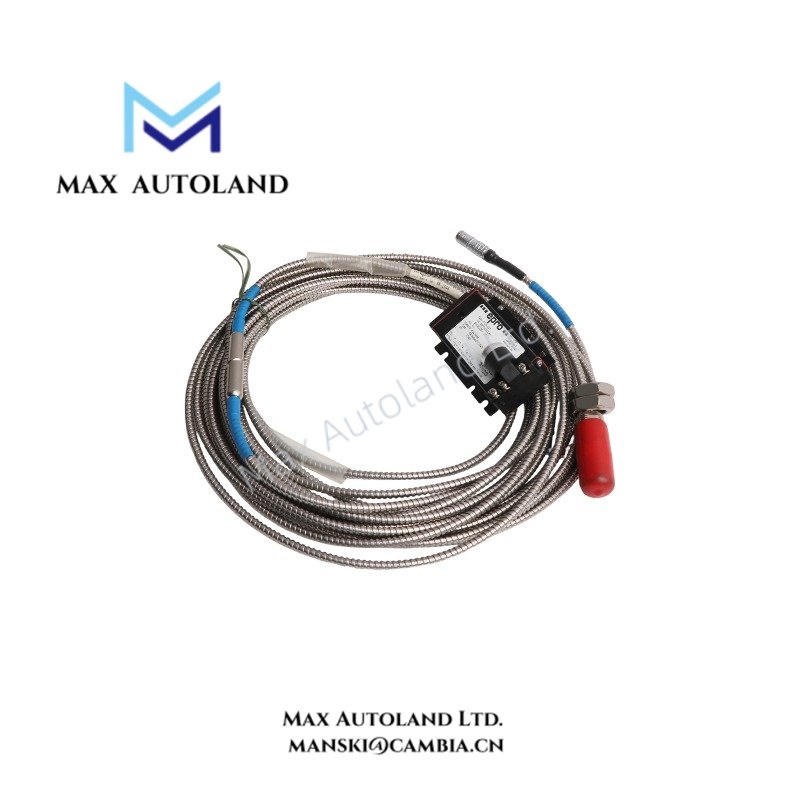

The Emerson EPRO PR6424/010-040 CON021, also cataloged as the PR6424/010-040 Eddy Current Proximity Probe System, operates as a dedicated hardware component for shaft displacement and vibration signal acquisition within EPRO machinery protection monitoring systems. The assembly combines a 16 mm eddy current probe with a CON021 signal converter to process electromagnetic gap variations into proportional monitoring outputs.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PR6424/010-040 CON021 |
| Brand | Emerson EPRO |
| Origin | Germany |
| Weight | 0.76 kg |
| Dimensions | 28 x 26.5 x 3.9 cm |
| Operating Temp | Probe: -35 deg C to +150 deg C |
| Power Consumption | Typically supplied by 24 VDC monitoring system |
| Probe Type | 16 mm eddy current proximity probe |
| Measurement Function | Shaft vibration, axial displacement, rotor position, and eccentricity measurement |
| Measurement Range | Static: +/- 2.0 mm; Dynamic: 0 to 1,000 um |
| Sensitivity | 4 V/mm (101.6 mV/mil) |
| Linearity | Deviation <= +/- 1.5% |
| Nominal Air Gap | Approx. 2.7 mm center gap |
| Frequency Bandwidth | 0 to 15 kHz |
| Target Material | Ferromagnetic steel, typically 42CrMo4 |
| Output Interface | Conditioned proportional signal output through CON021 converter |
Emerson EPRO Eddy Current Signal Processing Characteristics
The PR6424/010-040 probe generates high-frequency electromagnetic field changes according to the distance between the probe tip and the rotating shaft surface. The CON021 converter demodulates the eddy current signal and provides conditioned outputs for machinery monitoring channels.
The measurement loop requires correct probe gap adjustment, cable routing, and signal grounding to maintain measurement accuracy. Eddy-current scaling is based on the probe calibration curve, where the converter translates gap voltage variation into displacement-related output values for rotor dynamics analysis.
The system architecture supports evaluation of shaft movement conditions including radial vibration, axial position deviation, and eccentricity behavior. Proper gap voltage validation is required during commissioning to confirm the probe operating point before machinery startup.
Frequently Asked Questions
Q: What signal type does the PR6424/010-040 CON021 system measure?
A: The system measures electromagnetic gap changes generated by an eddy current proximity probe and converts them into proportional displacement and vibration monitoring signals.
Q: Is the PR6424/010-040 probe a contact measurement device?
A: No. The probe uses a non-contact eddy current measurement principle and detects shaft position changes without mechanical contact.
Q: What installation factors affect measurement accuracy?
A: Probe gap adjustment, target shaft material, cable routing, shielding, and grounding practices directly influence signal quality and measurement stability.
Field Installation Guidelines
Install the PR6424/010-040 probe with a stable mechanical mounting arrangement to maintain the designed sensing distance from the rotating target surface. Verify probe orientation and mechanical clearance before operation.
Use shielded signal wiring between the probe and converter. Keep measurement cables separated from high-current power conductors to reduce electromagnetic interference.
Connect cable shields according to the monitoring system grounding design. Avoid unnecessary grounding loops that may introduce noise into the displacement measurement circuit.
During commissioning, verify the probe gap condition and converter output response before enabling machinery protection functions. Confirm that the measured signal follows expected shaft movement behavior under operating conditions.
