Overview
This solution detects misalignment, eccentricity, and imbalance at an early stage, enabling maintenance teams to schedule predictive interventions and avoid unexpected downtime. Consequently, engineers appreciate the system for its precision, robustness, and consistent performance in harsh operating environments.
Specification
| Component | Parameter | Specification |
|---|---|---|

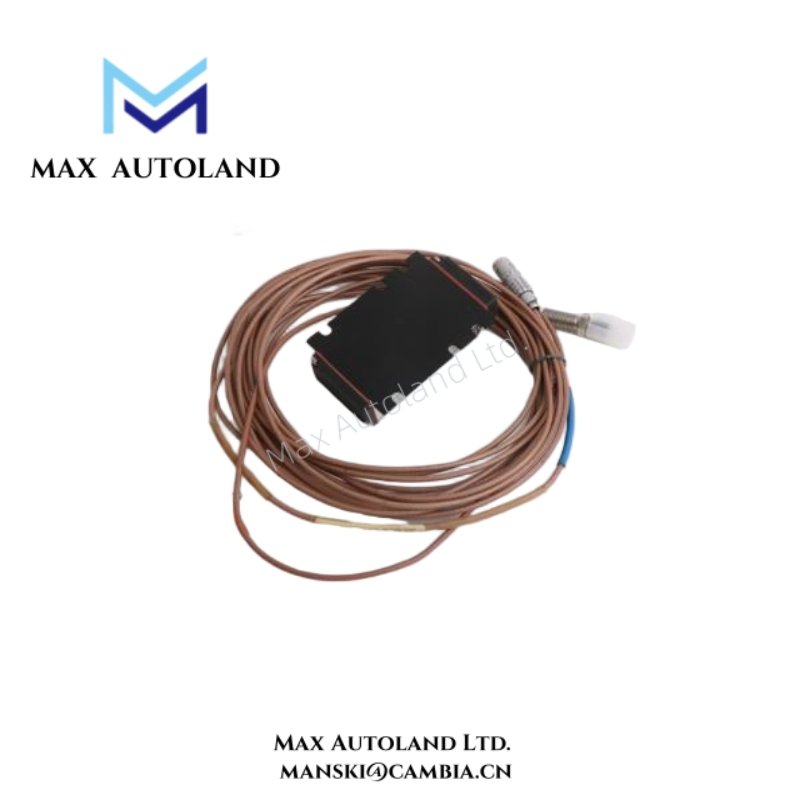

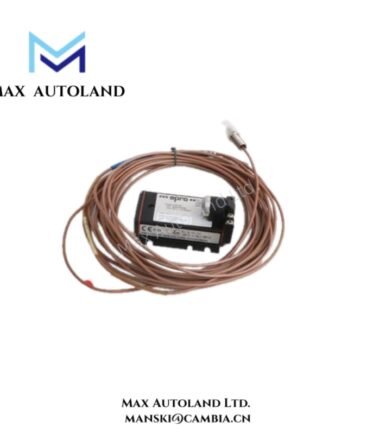

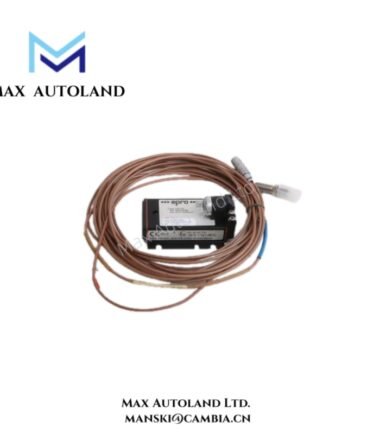

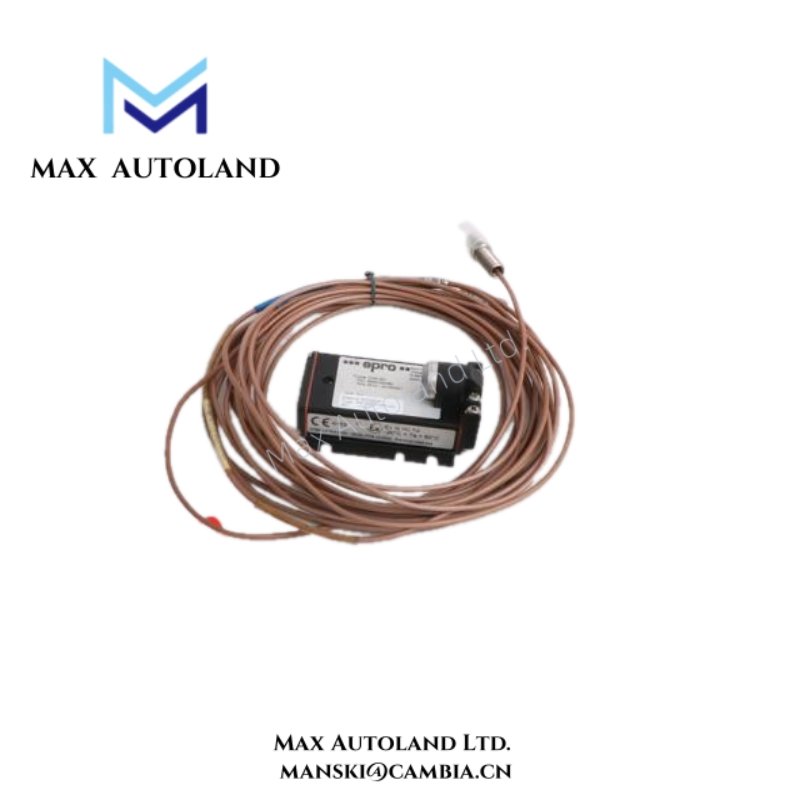

| PR6423/01B-030-CN Sensor Probe | Measurement Principle | Eddy current, non-contact |
| Nominal Gap Range | 0.25–4 mm (depending on probe tip) | |
| Probe Tip Diameter | 10 mm series | |
| Linearity | ≤ 1% of full scale | |
| Frequency Response | Suitable for dynamic machinery monitoring | |
| Operating Temperature | –35°C to +180°C | |
| Housing Material | Stainless steel | |
| Connection Type | Compatible with CON021 via extension cable | |
| CON021 Signal Converter | Supply Voltage | 24 V DC ±10% |
| Output Signals | 4–20 mA or voltage output (model dependent) | |
| Supported Cable Length | Up to 9 m combined (sensor + extension) | |
| Calibration | Factory-matched for PR6423 series | |
| Operating Temperature | –20°C to +70°C | |
| Mounting | Panel or rack installation | |
| Typical Use | Machinery protection and condition monitoring systems |
FAQ
It measures shaft displacement and vibration accurately to support predictive maintenance programs.
Q2: Can the sensor operate under high temperatures?
Yes, it operates reliably from –35°C to +180°C for extreme industrial environments.
Q3: How is the sensor mounted?
It supports standard mounting via probe threads, and the converter installs on panels or racks.
Q4: Is the system compatible with existing monitoring equipment?
Yes, the sensor and CON021 outputs integrate with Emerson and most third-party monitoring systems.
Q5: How often does the system require maintenance?
Minimal maintenance is needed due to the non-contact sensor, usually limited to inspection and calibration.
Q6: Can the cable be extended for longer installations?
Yes, the shielded extension cable supports long distances without compromising signal accuracy.
