Overview
This combination supports real-time condition monitoring, which helps maintenance teams identify bearing wear, shaft rubs, and misalignment before failures occur. Therefore, operators gain higher equipment availability while reducing unplanned downtime.
Specification
| Component | Parameter | Specification |
|---|---|---|

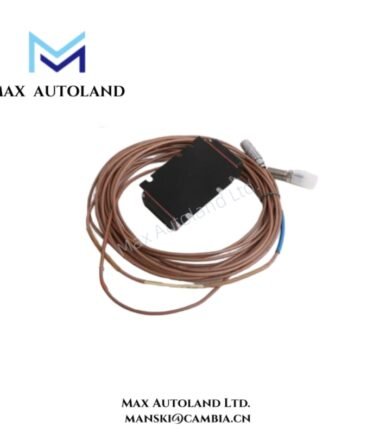

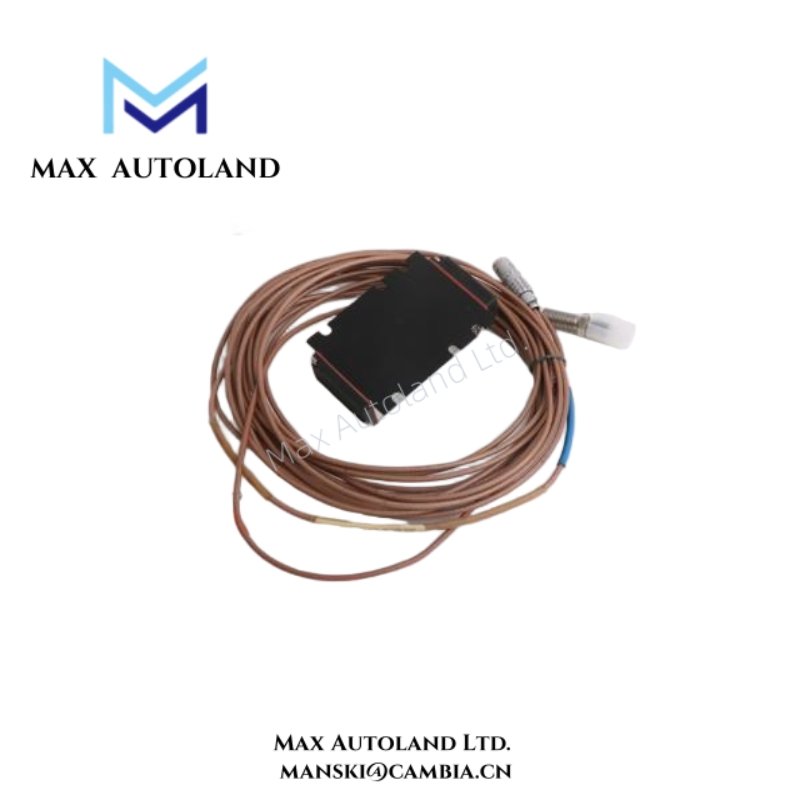

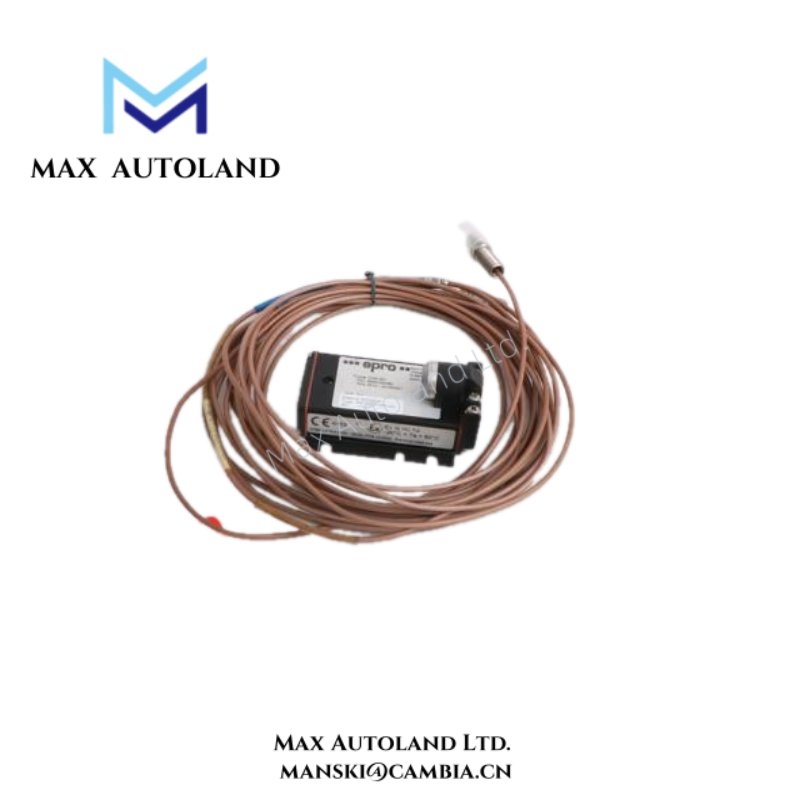

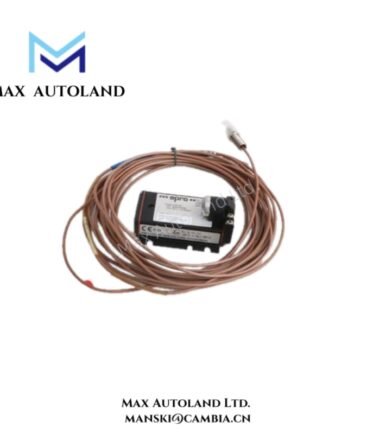

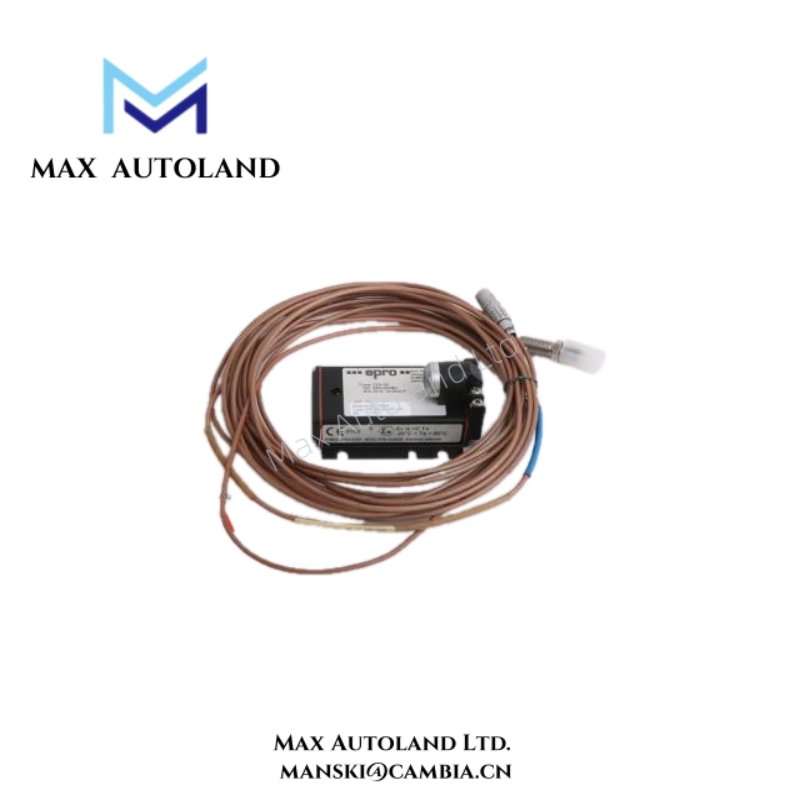

| PR6423/10R-030 Sensor Probe | Measurement Principle | Eddy current, non-contact |
| Nominal Gap Range | 0.25–4 mm (probe specific) | |
| Probe Tip Diameter | 10 mm series | |
| Linearity | ≤ 1% of full scale | |
| Frequency Response | Suitable for dynamic vibration monitoring | |
| Operating Temperature | –35°C to +180°C | |
| Housing Material | Stainless steel | |
| Connection Type | Compatible with CON021 via extension cable | |
| CON021 Signal Converter | Supply Voltage | 24 V DC ±10% |
| Output Signals | Voltage or 4–20 mA (model dependent) | |
| Supported Cable Length | Up to 9 m combined (sensor + extension) | |
| Calibration | Factory-matched for PR6423 series | |
| Operating Temperature | –20°C to +70°C | |
| Mounting | Panel or rack mounting | |
| Typical Use | Machinery protection and condition monitoring systems |
FAQ
It delivers accurate non-contact displacement measurement, which helps diagnose misalignment and early bearing issues.
Q2: Can the CON021 module connect to existing monitoring equipment?
Yes, it provides industry-standard outputs compatible with many protection and monitoring systems.
Q3: Does the system support high-temperature environments?
Yes, the probe handles elevated temperatures commonly found around turbines and compressors.
Q4: How often does the sensing pair require maintenance?
Routine service is minimal because the probe operates without mechanical contact.
