Overview

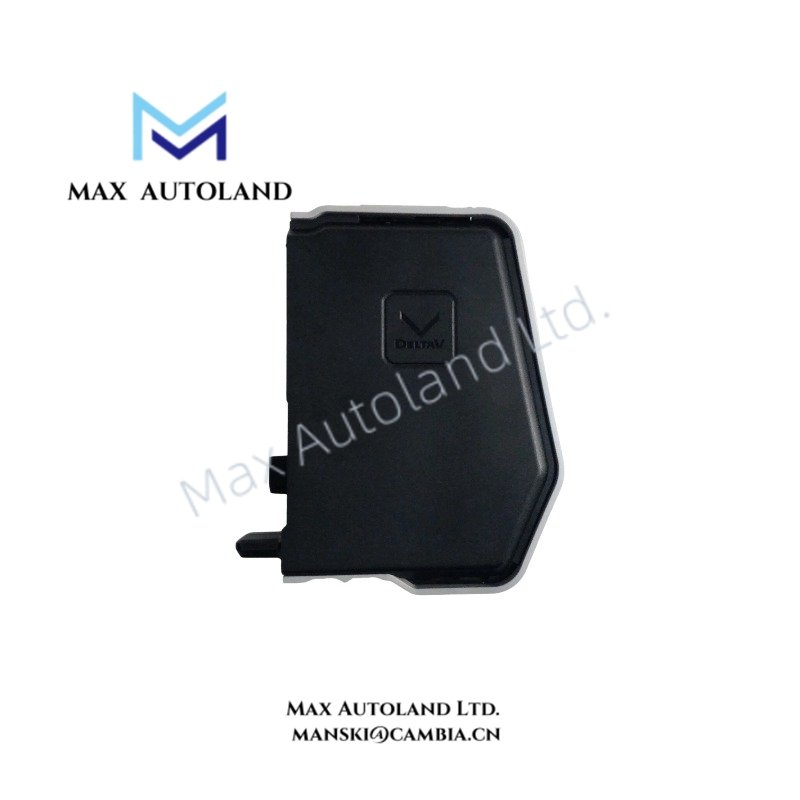

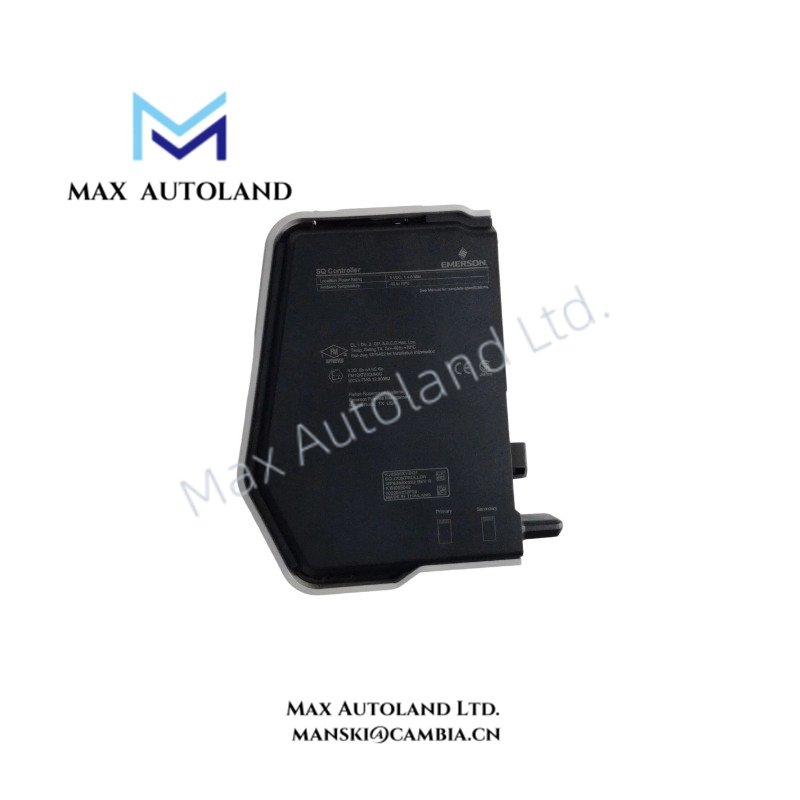

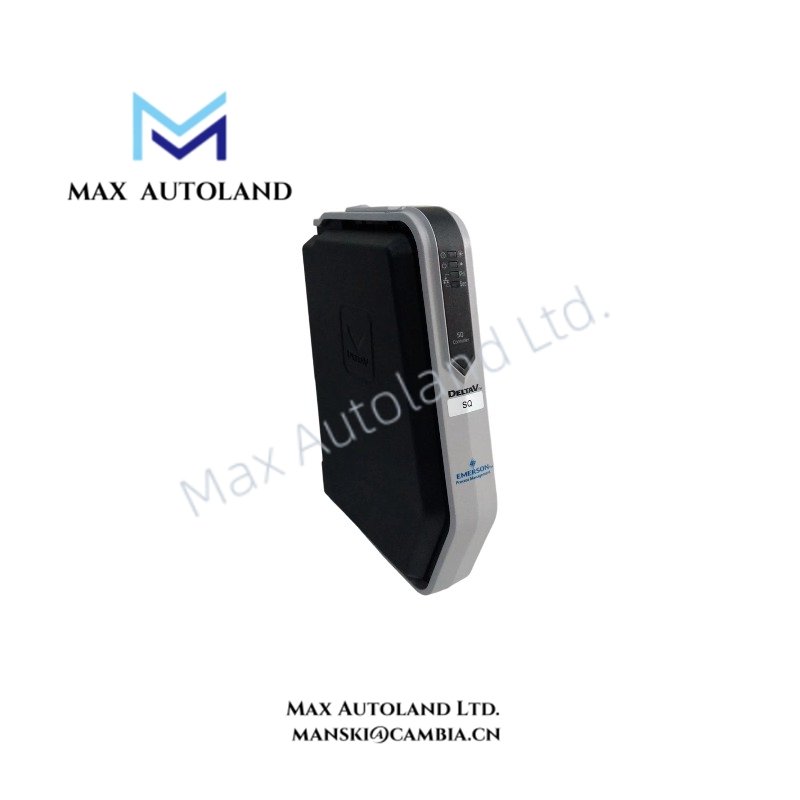

The Emerson SE3008, also cataloged as the KJ2005X1-SQ1 SQ Controller, operates as a dedicated hardware component for control execution, I/O communication, and network data processing within the Emerson DeltaV system network. It provides controller-level processing, CHARMs-based Electronic Marshalling support, HART data pass-through, and 1:1 redundancy configuration capability.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SE3008 |
| Brand | Emerson |
| Product Type | SQ Controller |
| Series | DeltaV SQ Controller |
| Alternate Part Numbers | KJ2005X1-SQ1, 12P6383X022 |
| Origin | United States |
| Weight | Approx. 0.5 kg |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Power Consumption | 5 VDC, 1.4 A maximum LocalBus power |
| Power Input | Supplied through 2-wide power/controller carrier |
| Fuse Protection | 3.0 A non-replaceable fuse |
| Primary Control Network | 1 x 8-pin RJ-45 Ethernet, 100 MB/s full-duplex |
| Redundant Control Network | 1 x 8-pin RJ-45 Ethernet, 100 MB/s full-duplex |
| Relative Humidity | 5% to 95%, non-condensing |
| Air Contaminants | ISA-S71.04-1985 Class G3 conformal coating |
| Mechanical Shock | 10 g half-sine wave for 11 ms |
| Mounting Position | Right slot of power/controller carrier |
DeltaV Process Control Communication Features
The SE3008 controller processes control functions between DeltaV system nodes and connected field I/O resources. Moreover, it supports CHARMs-based Electronic Marshalling to simplify distributed I/O connection management and reduce conventional wiring requirements.
The controller supports HART pass-through communication, therefore allowing intelligent field device HART information to transfer through the control network to workstation nodes. In addition, the Ethernet interface provides primary and redundant communication paths through dual RJ-45 network connections.
The Emerson DeltaV architecture supports process control functions including batch control options, neural network control, and model predictive control (MPC) functions when configured with compatible software options. The SE3008 also supports 1:1 controller redundancy for continuous control operation.
Frequently Asked Questions
Q: Does the SE3008 support controller redundancy configuration?
A: Yes. The SE3008 supports a 1:1 redundant controller architecture using a paired controller configuration within the DeltaV system.
Q: What power supply does the SE3008 require?
A: The controller receives power through the power/controller carrier and uses a LocalBus power rating of 5 VDC at 1.4 A maximum.
Q: What network interfaces are available on the SE3008?
A: The controller provides two 8-pin RJ-45 Ethernet interfaces for primary and redundant control network communication at 100 MB/s full-duplex.
Field Installation Guidelines
Install the SE3008 in the designated right slot position of the DeltaV power/controller carrier. Verify that the carrier provides the required power connection before inserting the controller module.
Maintain proper separation between Ethernet communication wiring and high-voltage power conductors to reduce electrical interference. Furthermore, connect cable shields according to the site grounding standard and avoid unnecessary shield loops.
Before system startup, confirm controller firmware compatibility, network addressing, and redundant controller configuration parameters. Ensure that the module is securely seated in the carrier and that status indicators operate normally after power application.
