Overview

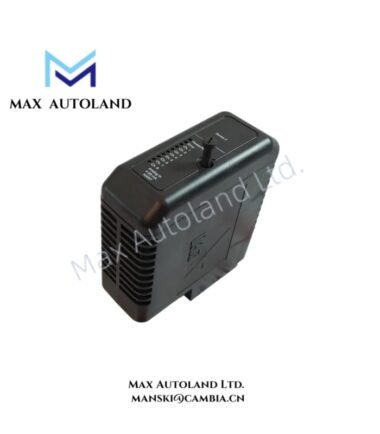

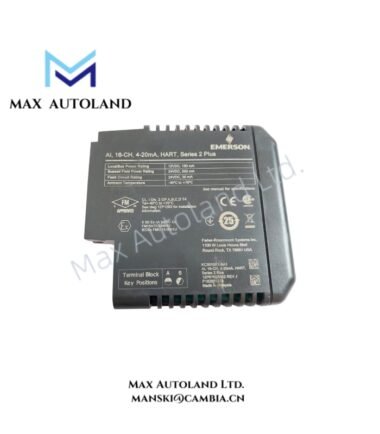

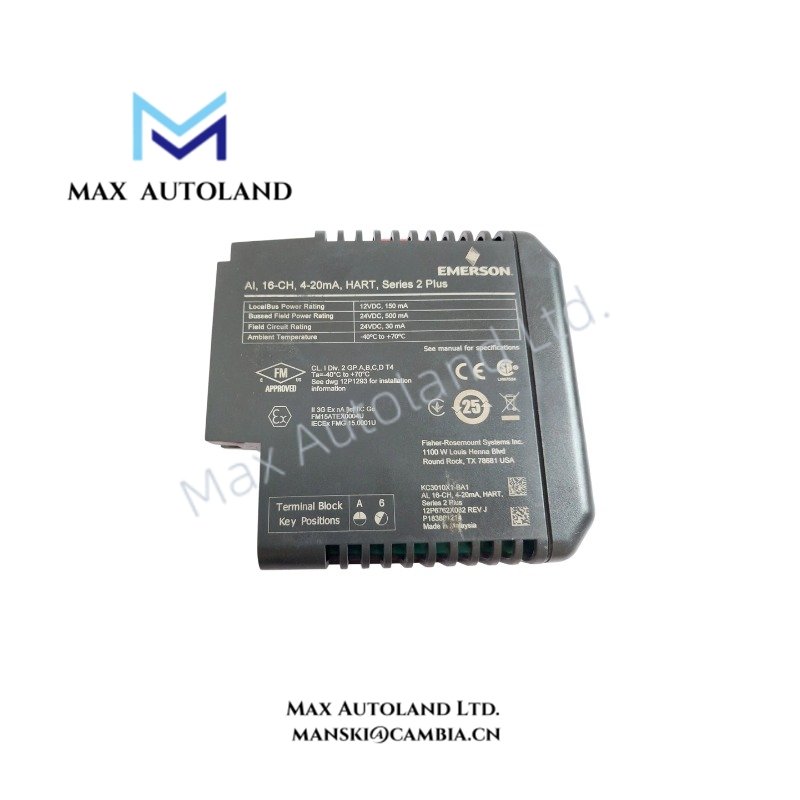

The Emerson KC3010X1-BA1, also cataloged as the KC3010X1-BA1 AI Plus 16-Channel 4-20 mA HART Module, operates as a dedicated hardware component for analog current signal acquisition and HART communication within the DeltaV Scalable Process System.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KC3010X1-BA1 |
| Brand | Emerson |
| Origin | United States |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Local Bus Power: 12 VDC at 150 mA; Bussed Field Power: 24 VDC at 500 mA |
| Module Type | AI Plus Analog Input Module |
| Input Channels | 16 Channels |
| Signal Type | 4-20 mA Analog Input with HART Communication |
| Field Circuit | 24 VDC at 30 mA per channel |
| Hazardous Area Rating | II 3 G Ex nA [ic] IIC Gc |
| Certification | FM15ATEX0004U; IECEx FMG 15.0001U |
| Terminal Block Key Position | A6 |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Relative Humidity | 5 to 95% Non-Condensing |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
HART Analog Signal Processing and Channel Isolation
The KC3010X1-BA1 processes 16 channels of 4-20 mA analog input signals and supports HART communication for field device parameter access. Moreover, the module applies channel-to-channel isolation techniques to separate individual field circuits and reduce electrical interaction between input channels.
The module integrates into Emerson DeltaV I/O architectures and handles analog measurement transmission from HART-enabled field instruments. Therefore, the device supports process variable acquisition while maintaining defined electrical boundaries between field wiring and system interfaces.
Frequently Asked Questions
Q: Does the KC3010X1-BA1 support HART communication on analog input channels?
A: Yes. The KC3010X1-BA1 is designed for 16-channel 4-20 mA analog input operation with HART communication capability.
Q: Can the KC3010X1-BA1 be removed or inserted while system power remains energized?
A: No. Field power supplied through the field terminal or bussed field power through the Carrier must be removed before device removal or connection.
Q: Does the module require user calibration or internal maintenance adjustment?
A: No. The unit contains no user serviceable parts and does not require calibration.
Field Installation Guidelines
Install the KC3010X1-BA1 only with the designated DeltaV terminal block configured for the correct rotary key position. The terminal block key position must match the I/O card configuration before installation.
Before removing or connecting the module, disconnect field power from the field terminal or Carrier bussed field power source. Additionally, complete the I/O loop assessment for all energy limited nodes before commissioning.
Route analog signal wiring separately from high-voltage power cables to minimize electrical interference. Apply proper shield grounding practices according to site electrical standards when connecting HART field circuits.
The module does not require internal adjustment after installation. Keep the enclosure closed and avoid disassembly because the unit contains no serviceable internal components.
