Overview

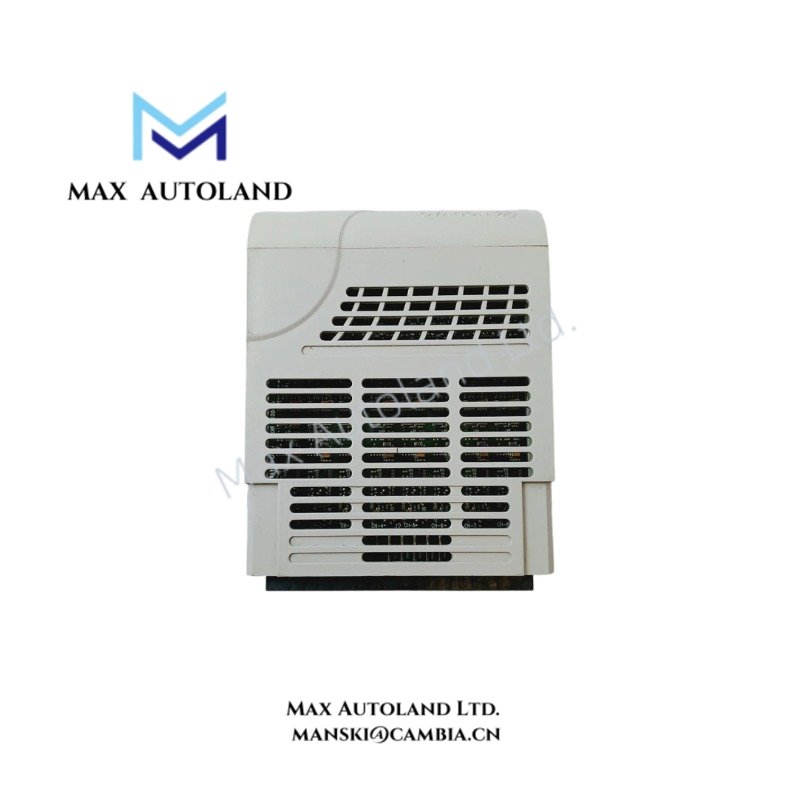

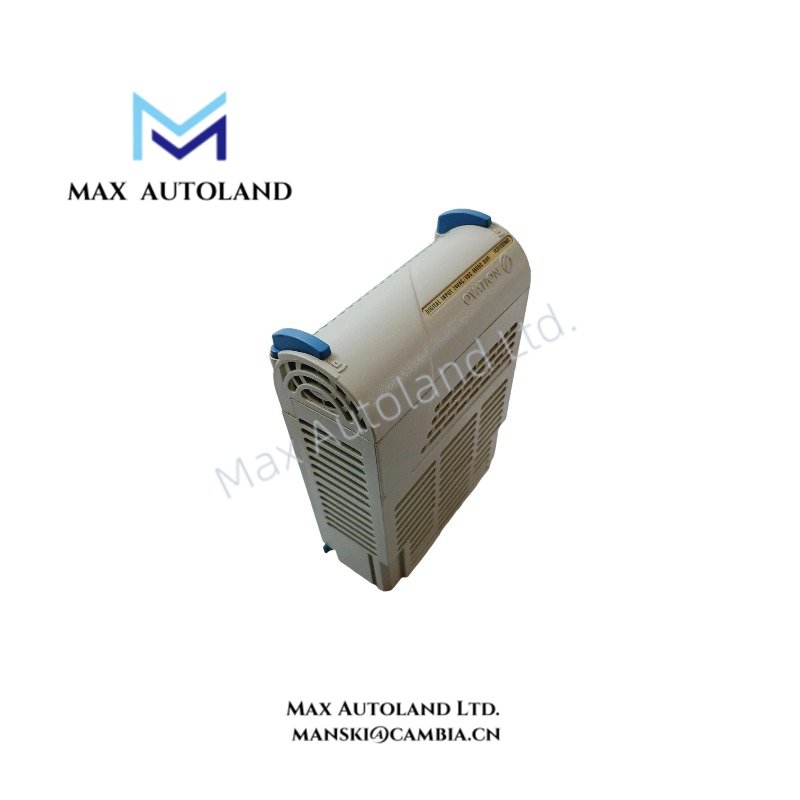

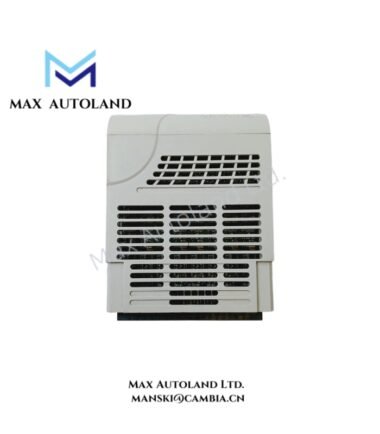

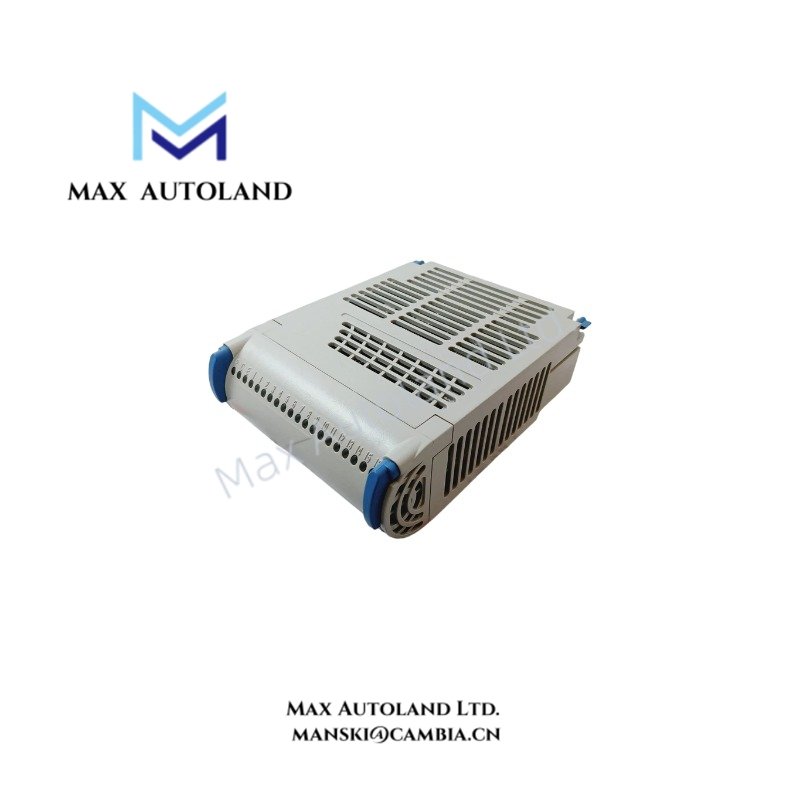

The Emerson Ovation 1C31232G02, also cataloged as the 1C31232G02 Compact Digital Input Electronic Module, operates as a dedicated hardware component for differential digital signal acquisition within the Emerson Ovation Distributed Control System.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1C31232G02 |
| Brand | Emerson |
| Origin | Thailand (reference data) |
| Weight | Approx. 0.3 kg |
| Dimensions | Approx. 12.1 x 5.1 x 14.0 cm |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 1.1 W typical, 1.5 W maximum |
| System Platform | Emerson Ovation Distributed Control System |
| Module Type | Compact Digital Input Electronic Module |
| Input Type | Differential Digital Input |
| Number of Channels | 16 channels |
| Input Voltage Range | 24 VAC, 24 VDC, 48 VDC |
| Input Configuration | Differential input |
| Signal Interface | Field contact and digital device monitoring |
| Personality Module Compatibility | 5X00034G01 optional fused Personality Module |
| Channel Isolation | Channel-to-channel isolation for differential configuration |
| Channel-to-Logic Isolation | 2000 VAC differential configuration |
| Propagation Delay | Up to 16.0 ms for 24 VDC and 48 VDC inputs |
| Diagnostics | Internal module fault monitoring and input status monitoring |
| Storage Temperature | -40 to 85 deg C |
| Humidity | 0 to 95% RH, non-condensing |
| Maximum Cable Length | 1000 ft at 50 pF/ft or better |
DCS Signal Isolation and Field Input Processing
The Emerson Ovation 1C31232G02 uses differential input circuitry to acquire discrete field signals and transfer processed status information through the Ovation I/O communication structure. The module supports channel-to-channel isolation and field-to-logic isolation to separate external wiring conditions from controller electronics.
For Emerson Ovation DCS installations, digital field interfaces typically require controlled signal transmission, electrical separation, and diagnostic feedback. The 1C31232G02 applies these principles through isolated input channels and internal monitoring functions. The module architecture is focused on discrete status collection rather than analog measurement or loop regulation.
Frequently Asked Questions
Q: What field input signals can the 1C31232G02 process?
A: The module processes differential digital input signals from 24 VAC, 24 VDC, and 48 VDC field devices.
Q: How many digital input points are available on this module?
A: The 1C31232G02 provides 16 differential digital input channels for field status monitoring.
Q: Does the module support individual channel protection?
A: Yes. The module can be configured with the optional 5X00034G01 Personality Module for individual point fuse protection.
Field Installation Guidelines
- Install the module in the assigned Emerson Ovation I/O rack position according to system hardware configuration requirements.
- Verify field signal voltage levels before connecting digital input wiring.
- Confirm differential input polarity and terminal assignments before system commissioning.
- Use the correct Personality Module configuration when individual fuse protection is required.
- Separate field signal wiring from high-voltage power cables to reduce electrical interference.
- Verify grounding and shielding practices according to the Ovation system installation documentation.
- Execute module diagnostics after installation to confirm input channel status.
