Overview

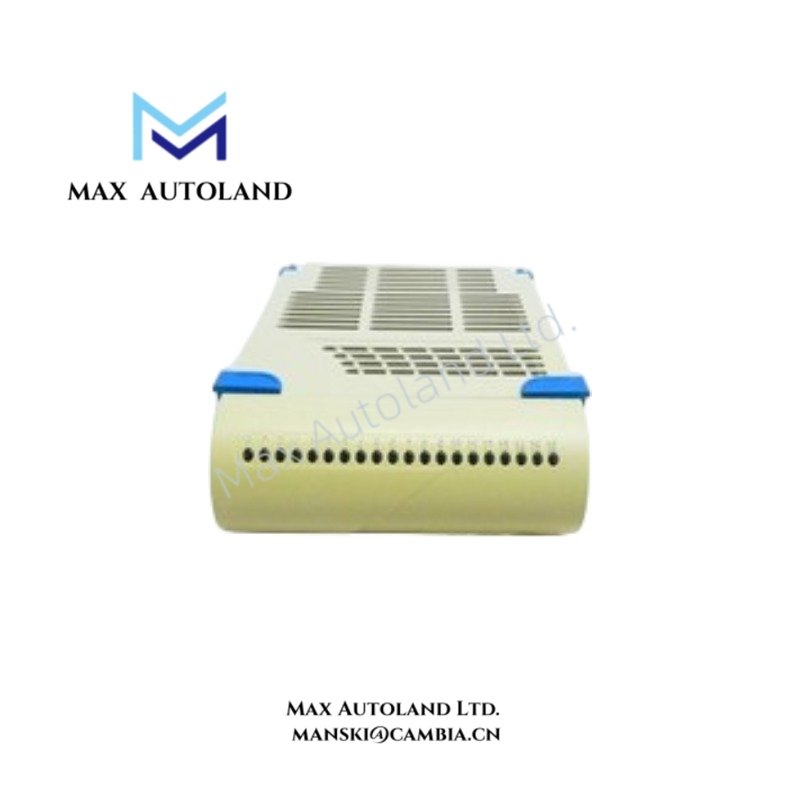

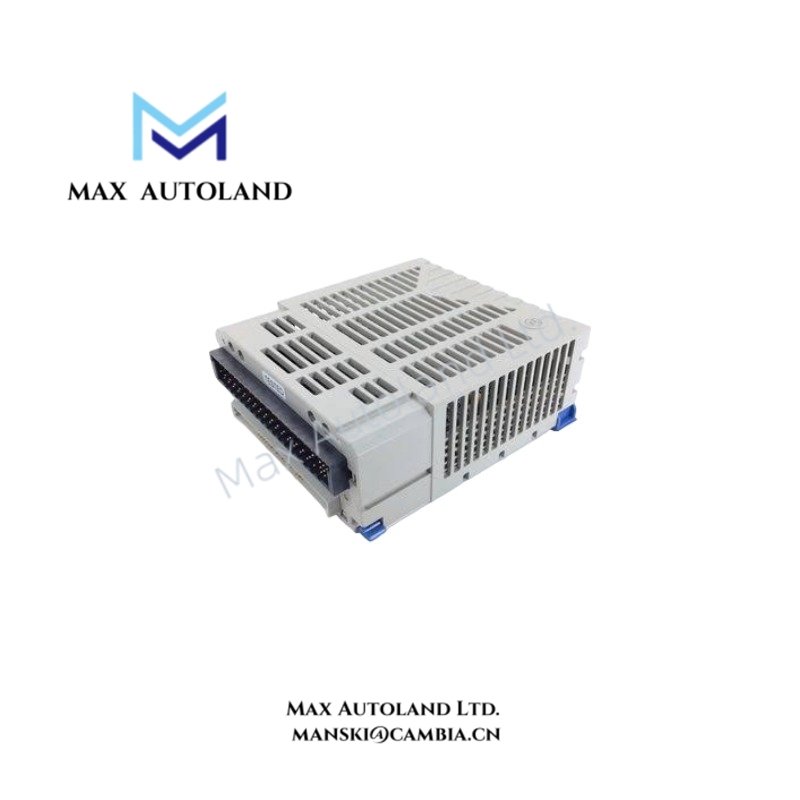

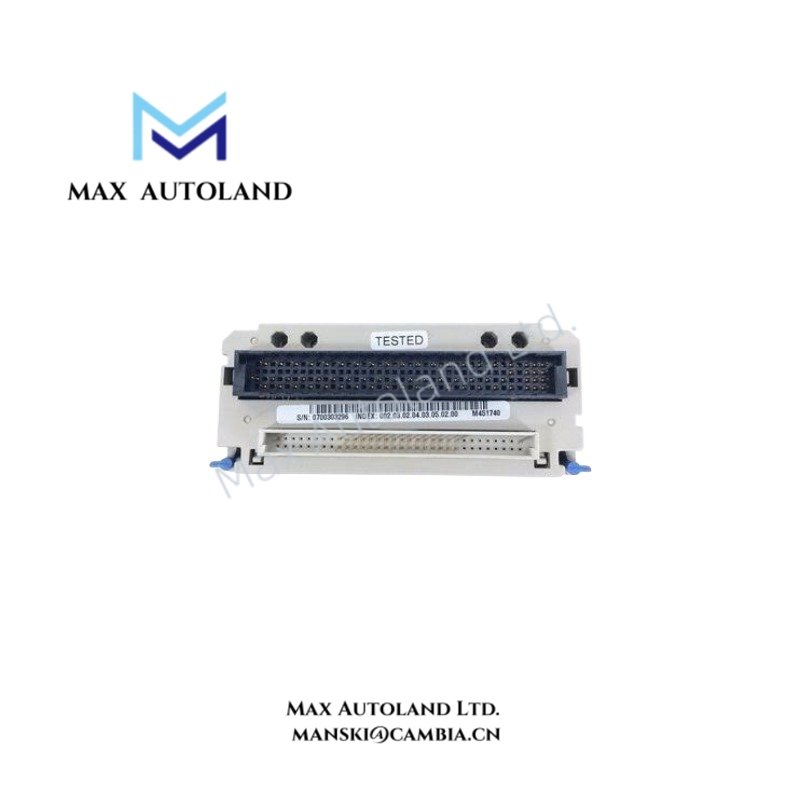

The Emerson Ovation 1C31129G01, also cataloged as the 1C31129G01 Analog Output Electronic Module, operates as a dedicated hardware component for isolated analog voltage signal generation within the Emerson Ovation Distributed Control System.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1C31129G01 |
| Brand | Emerson |
| Origin | USA |
| System Platform | Emerson Ovation Distributed Control System |
| Module Type | Analog Output Electronic Module |
| Output Type | Isolated analog voltage output |
| Number of Channels | 4 channels |
| Output Range | 0 to 5 VDC |
| Digital Resolution | 12-bit DAC |
| Signal Conversion | Serial digital-to-analog conversion |
| Isolation Method | Opto-isolated interface |
| Compatible Personality Module | 1C31132G01 |
| Installation Method | Ovation I/O rack mounting |
| Update Time | Approximately 1.5 ms for four channel updates |
| Certification | CE Mark certified Ovation I/O configuration |
Process Control Signal Interface Characteristics
The Emerson Ovation 1C31129G01 provides four isolated voltage output channels for controller-generated analog commands. The module receives digital values from the Ovation controller and converts them through 12-bit digital-to-analog converters into field-level voltage signals.
The output architecture uses channel isolation and opto-isolated serial communication paths to separate controller-side logic from field wiring circuits. Moreover, the module interfaces with Ovation Personality Module 1C31132G01 for terminal block signal routing and field connection management.
For Emerson Ovation analog control applications, the module operates within a DCS I/O framework that supports direct command generation for valve positioners, actuators, and other analog-controlled devices. It is designed around voltage output transmission rather than 4-20 mA current loop operation.
Frequently Asked Questions
Q: What type of output signal does the Emerson Ovation 1C31129G01 provide?
A: The module provides four isolated analog voltage output channels with a signal range of 0 to 5 VDC.
Q: Which Personality Module is used with the 1C31129G01?
A: The compatible Personality Module is the Emerson Ovation 1C31132G01, which provides the field wiring interface between the electronic module and terminal connections.
Q: How does the module perform digital command conversion?
A: The module uses 12-bit digital-to-analog converter circuits to convert Ovation controller data into analog voltage output signals.
Field Installation Guidelines
Install the 1C31129G01 module only in compatible Emerson Ovation I/O rack positions according to system hardware documentation.
Verify that the connected Personality Module matches the required module type before applying field wiring. Use appropriate shielded wiring practices for analog signal circuits and maintain separation between low-level analog signals and high-voltage switching conductors.
Confirm terminal assignments before connecting field devices. Check power isolation, rack communication status, and controller I/O configuration before placing the analog outputs into operational service.
ackplane connection, and power availability before commissioning the analog output channels.
