Overview

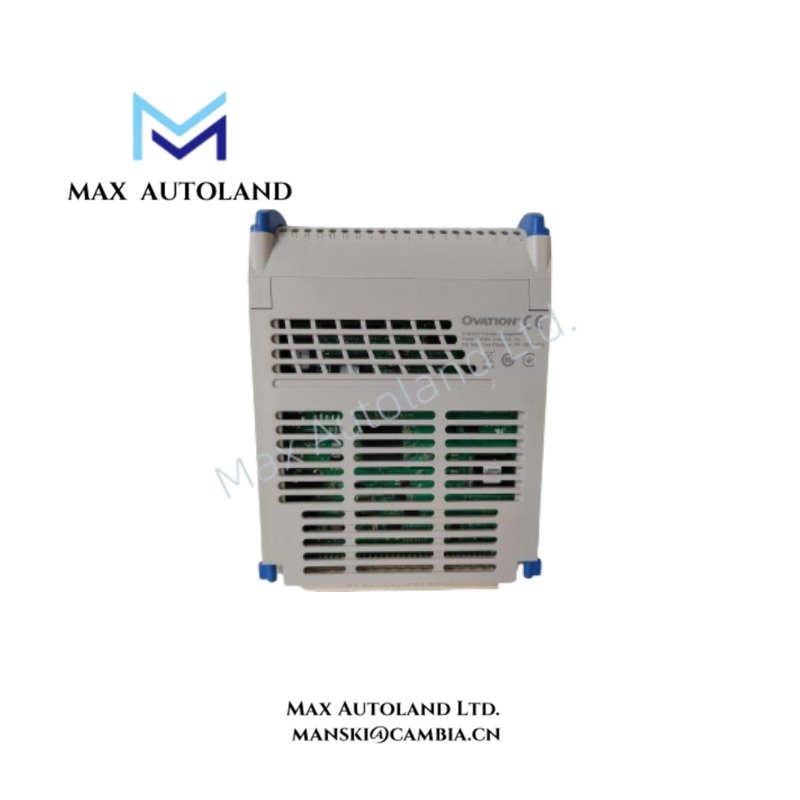

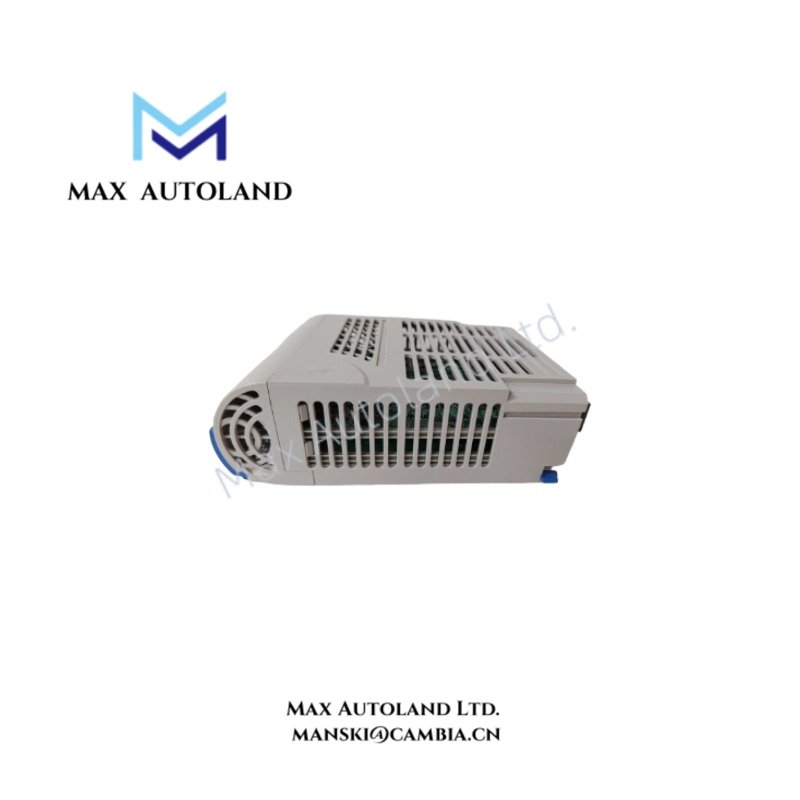

The Emerson Ovation 1C31233G02, also cataloged as the 1C31233G02 Sequence of Events Input Electronic Module, operates as a dedicated hardware component for high-resolution digital event capture within the Emerson Ovation Distributed Control System.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1C31233G02 |
| Brand | Emerson |
| Origin | United States |
| Module Type | Sequence of Events Input Electronic Module |
| Product Series | Ovation Distributed Control System |
| Input Type | Differential digital input |
| Number of Channels | 16 channels |
| Input Voltage | 24 VDC / 48 VDC |
| Signal Type | Contact and digital field input |
| Application Function | Sequence of Events recording and timestamp acquisition |
| Communication Interface | Ovation I/O bus |
| Mounting Type | Ovation compact I/O rack |
| Weight | Approx. 300 g |
| Dimensions | Approx. 3.5 x 15 x 13 cm |
| Operating Temp | 0 deg C to 60 deg C |
| Storage Temp | -40 deg C to 85 deg C |
| Power Consumption | Approx. 2.0 W/VA |
| Heat Dissipation | Approx. 6.8 BTU/hr |
| Compatible System | Emerson Ovation DCS |
DCS Signal Isolation and Event Processing Characteristics
The Emerson Ovation 1C31233G02 processes 16 differential digital input channels for sequence-of-events acquisition. The differential input structure provides channel-level signal discrimination for field contact monitoring and reduces interference caused by external electrical noise.
The module receives discrete field state changes and transfers event information through the Ovation I/O bus for controller processing. Moreover, the module is configured for time-critical digital status monitoring where event order and timestamp resolution are required.
For Emerson DCS applications, the module architecture follows process control I/O requirements including channel-to-channel isolation concepts used in industrial signal acquisition systems. The design supports integration with Ovation personality modules and terminal assemblies for field wiring termination.
Frequently Asked Questions
Q: What type of field signals can the Emerson Ovation 1C31233G02 process?
A: The module processes 24 VDC and 48 VDC differential digital input signals from field contacts and discrete devices.
Q: How does the module communicate event information to the control system?
A: The module transfers collected sequence-of-events data through the Emerson Ovation I/O bus to the associated controller.
Q: Does the module require additional termination hardware for field connection?
A: Yes. The module requires compatible Ovation terminal assemblies and personality modules for field signal connection.
Field Installation Guidelines
- Install the module in the assigned Emerson Ovation compact I/O rack position according to system configuration requirements.
- Verify field signal voltage levels before connecting external wiring to the input terminals.
- Maintain proper separation between digital input wiring and high-voltage power cables to reduce electrical interference.
- Connect cable shields according to the site grounding standard and avoid multiple grounding points on shield layers.
- Confirm terminal assembly and personality module compatibility before module replacement.
- Check I/O communication status after installation and verify correct event input operation through system diagnostics.
