Overview

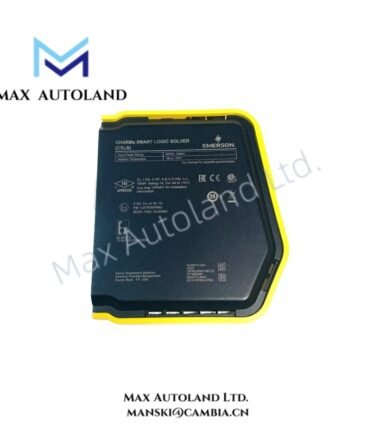

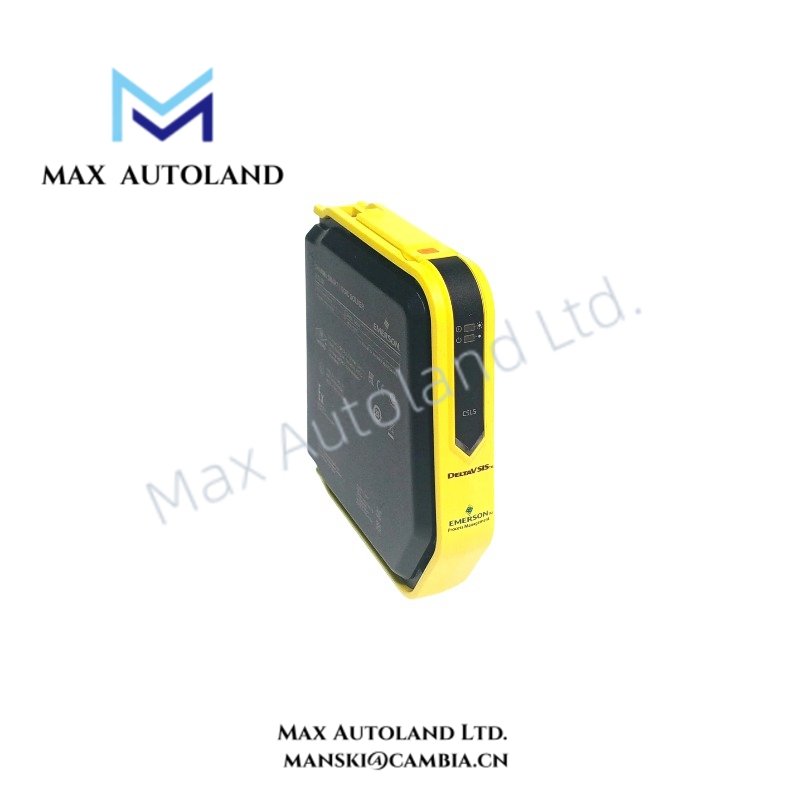

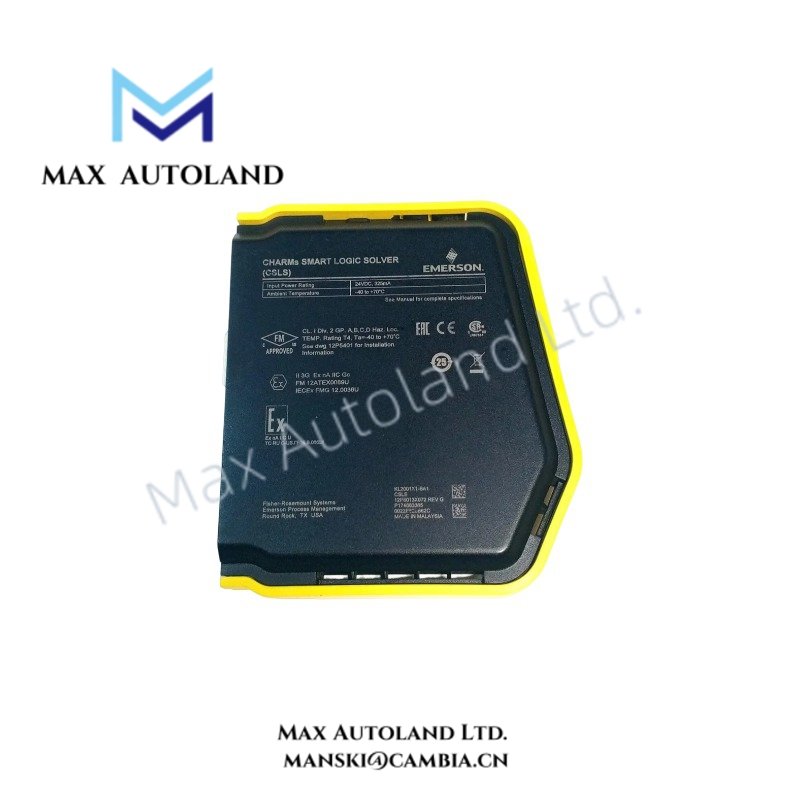

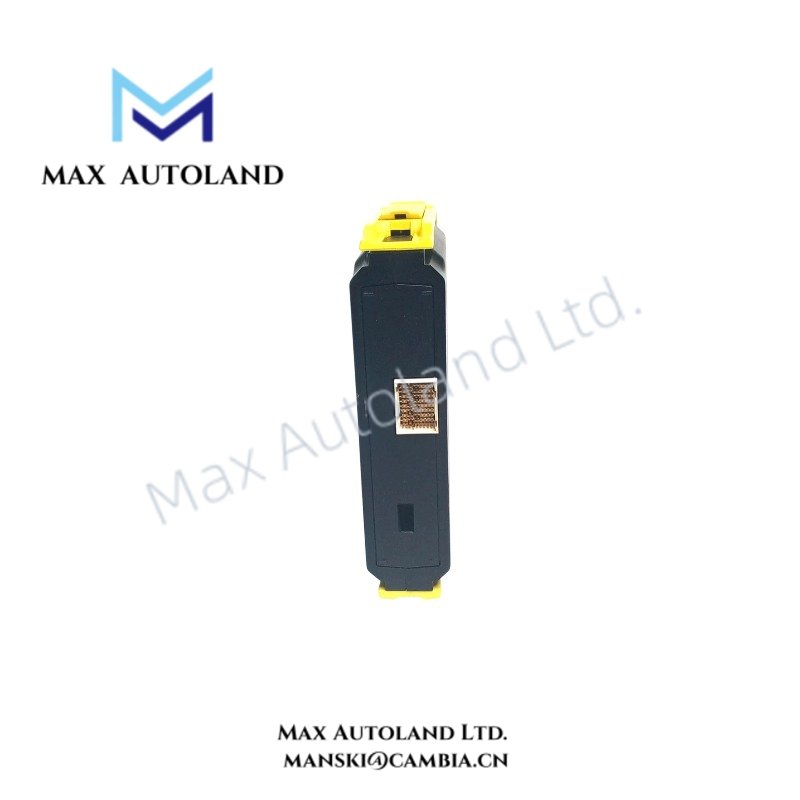

Configured for smart logic execution and discrete control processing in the Emerson DeltaV Electronic Marshalling CHARMs I/O subsystem, the Emerson KL2001X1-BA1 (KL2001X1-BA1 CHARMs Smart Logic Solver) provides direct physical and electrical execution within hazardous area installations.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KL2001X1-BA1 |
| Brand | Emerson |
| Product Type | CHARMs Smart Logic Solver |
| System Platform | DeltaV Electronic Marshalling CHARMs I/O Subsystem |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Input power +24 VDC at 325 mA |
| Hazardous Area Certification | II 3G Ex ec IIC Gc; FM19ATEX0173U; IECEx FMG 19.0019U; FM21UKEX0017U |
| North America Classification | CL. I Div. 2 GP. A, B, C, D; CL. I Zone 2 AEx/Ex ec IIC Gc |
| Shock Resistance | 10g half sinewave for 11 msec |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Relative Humidity | 5 to 95% non-condensing |
| User Serviceable Parts | None |
DeltaV CHARMs Smart Logic Execution
The KL2001X1-BA1 operates as a Smart Logic Solver component within the DeltaV CHARMs architecture. It processes configured logic functions through the electronic marshalling subsystem and executes control operations through the connected I/O infrastructure.
The module supports hazardous area deployment through Ex ec IIC Gc certification. Therefore, installation personnel must follow the specified DeltaV Zone 2 installation procedures and maintain the approved enclosure and wiring requirements.
The unit receives +24 VDC input power and consumes 325 mA during operation. Additionally, the module withstands industrial environmental conditions defined by shock, vibration, contamination, and humidity specifications.
Frequently Asked Questions
Q: Can the KL2001X1-BA1 be removed while system power remains energized?
A: No. The unit cannot be removed or inserted with system power energized unless the installation area is confirmed as non-hazardous.
Q: Does the KL2001X1-BA1 require user calibration or internal adjustment?
A: No. The module contains no user serviceable parts, requires no calibration, and should not be disassembled.
Q: Which installation document defines hazardous area requirements for this module?
A: Installation must follow document 12P5403 “DeltaV Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions” and applicable DeltaV S-series and CHARMs Hardware Installation instructions.
Field Installation Guidelines
Install the KL2001X1-BA1 according to DeltaV CHARMs hardware installation procedures and hazardous area requirements.
Verify that the installation location matches the certified hazardous atmosphere classification before energizing the system. Maintain correct power polarity when connecting the +24 VDC supply.
Route signal and power wiring according to industrial control panel practices. Separate high-energy conductors from low-level control wiring to reduce electrical interference.
Confirm that grounding, shielding, and enclosure practices comply with the site electrical standards and applicable hazardous area regulations.
Do not open, modify, or repair the module. Replace the complete unit if operational faults occur.
