Overview

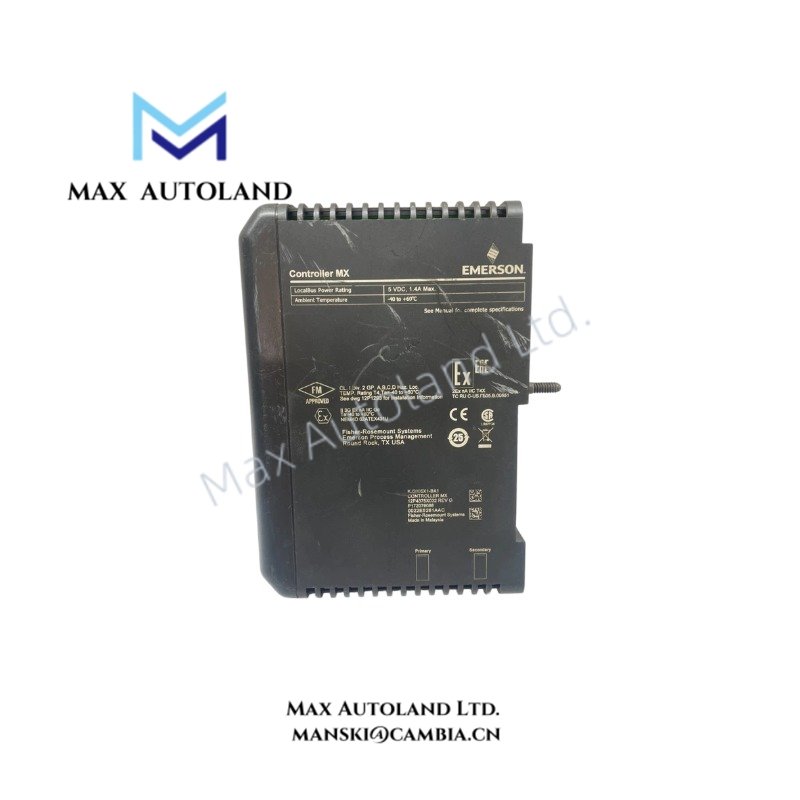

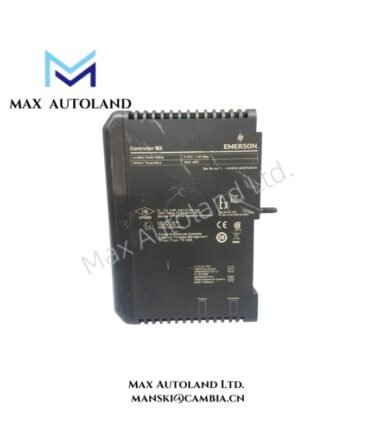

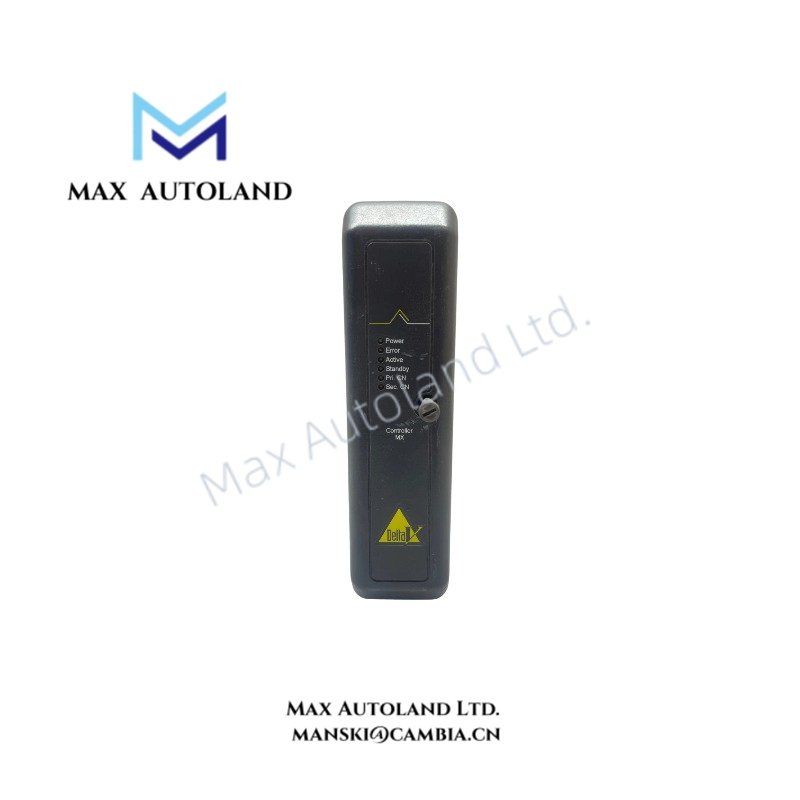

Configured for control processing and Ethernet communication execution in the Emerson DeltaV M-series control network, the Emerson KJ2005X1-BA1 12P4375X072 VE3007 (KJ2005X1-BA1 MX Controller) provides direct hardware control functions for distributed process applications.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ2005X1-BA1 12P4375X072 VE3007 |
| Brand | Emerson |
| Product Type | MX Controller |
| Origin | USA |
| Weight | 0.3 kg |
| Dimensions | 4.1 x 12.5 x 15.8 cm |
| Operating Temp | -40 deg C to +60 deg C |
| Power Consumption | 5 W typical, 7 W maximum |
| Local Bus Power | +5 VDC at 1.4 A |
| User Memory | 96 MB |
| Network Interface | Dual redundant 100 Mbps full-duplex Ethernet control network |

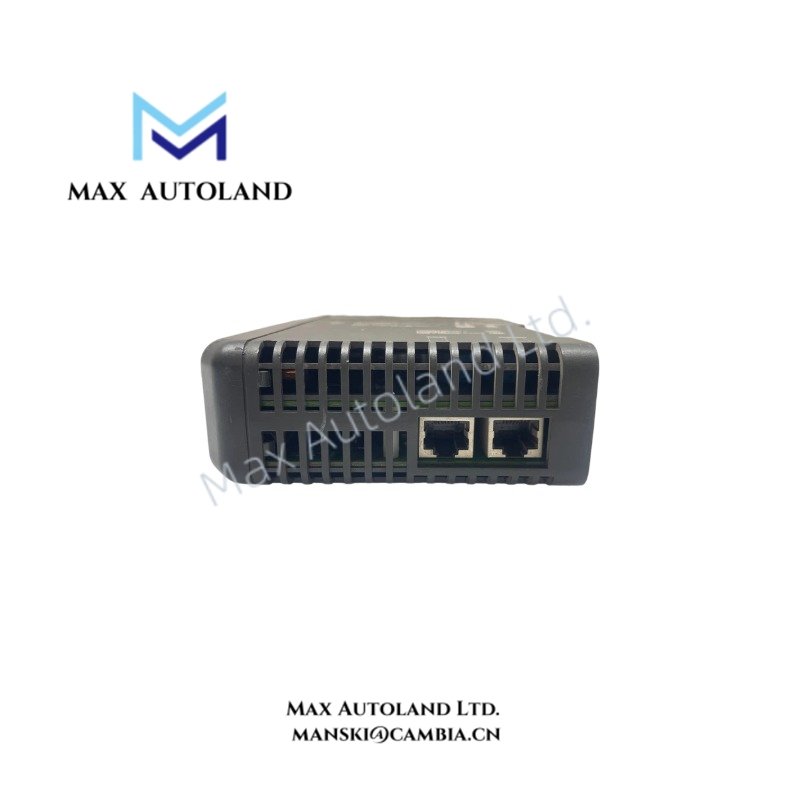

| Connector Type | 8-pin RJ-45 connector |
| Tariff Code | 8537101190 |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Relative Humidity | 5 to 95% non-condensing |
DeltaV DCS HART and Field Communication Integration
The Emerson KJ2005X1-BA1 12P4375X072 VE3007 MX Controller executes DeltaV control algorithms, manages controller-level communication, and processes configured control strategies through the M-series architecture. Moreover, the controller supports distributed control functions with redundant 100 Mbps full-duplex Ethernet communication paths.
The controller operates as a processing node between DeltaV I/O subsystems and application-level control tasks. Therefore, it maintains synchronized data exchange for control modules, batch functions, and electronic marshalling configurations.
In addition, Emerson DeltaV controllers support process instrumentation communication architectures that include 4-20 mA HART loop protocol integration through compatible I/O modules. The system design supports channel-to-channel isolation requirements at the field interface level when paired with suitable DeltaV hardware components.
Frequently Asked Questions
Q: What is the local bus power requirement of the KJ2005X1-BA1 12P4375X072 VE3007 controller?
A: The controller requires +5 VDC at 1.4 A local bus power input.
Q: Does the VE3007 MX Controller support redundant Ethernet communication?
A: Yes. The controller supports dual redundant 100 Mbps full-duplex Ethernet control network communication.
Q: What environmental conditions can the controller withstand during operation?
A: The controller operates from -40 deg C to +60 deg C and supports ISA-S71.04-1985 Class G3 airborne contaminant conditions.
Field Installation Guidelines
Install the KJ2005X1-BA1 12P4375X072 VE3007 controller inside the designated DeltaV controller carrier with proper mechanical retention.
Ensure the +5 VDC local bus power connection meets the controller load requirement before system startup. Furthermore, verify Ethernet cable routing to minimize electromagnetic interference from high-power switching equipment.
Maintain proper cabinet grounding practices and connect cable shields according to the site electrical installation standard. Avoid routing communication cables parallel to high-voltage power conductors to reduce signal interference.
Before controller replacement or maintenance activity, confirm the approved DeltaV configuration and firmware compatibility. Follow system procedures for controller removal, insertion, and network verification.
