Overview

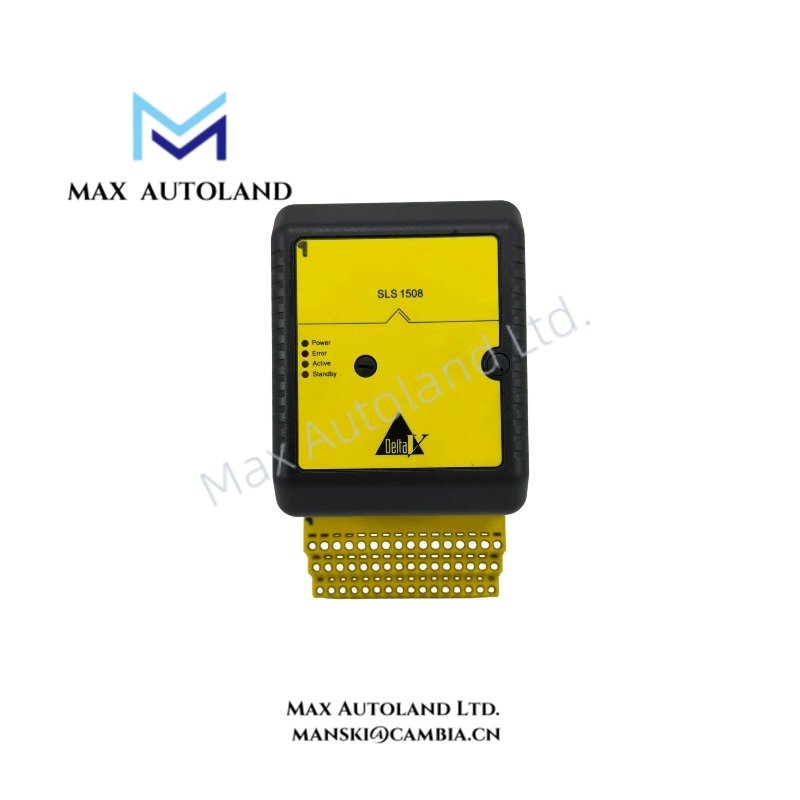

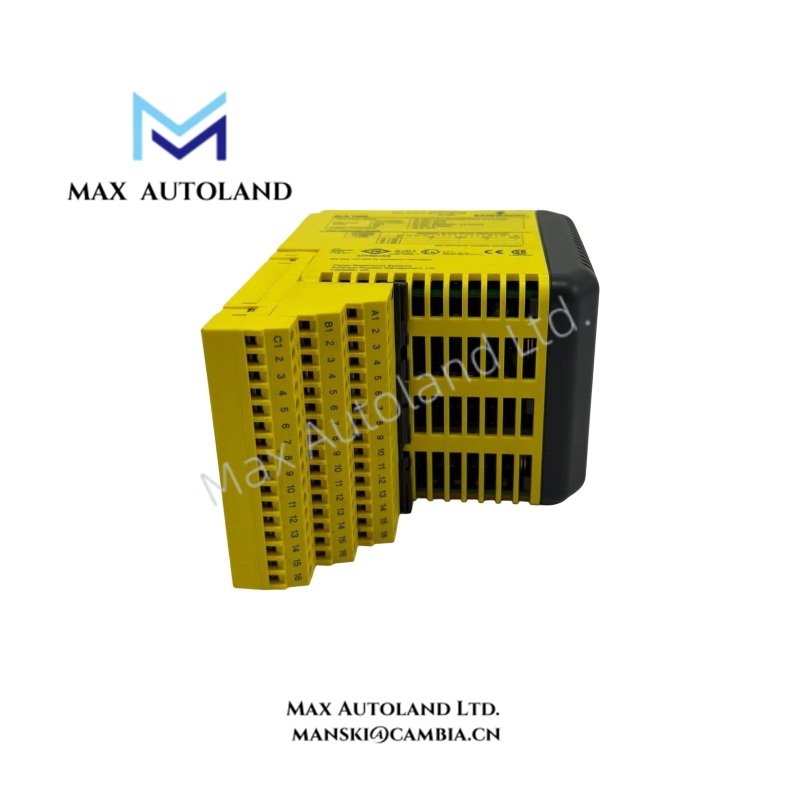

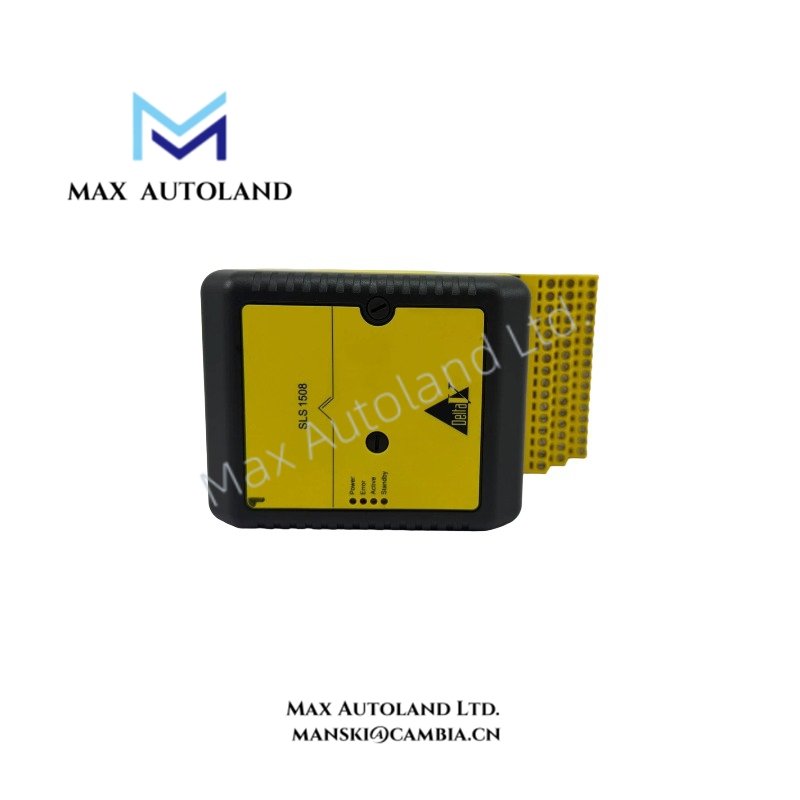

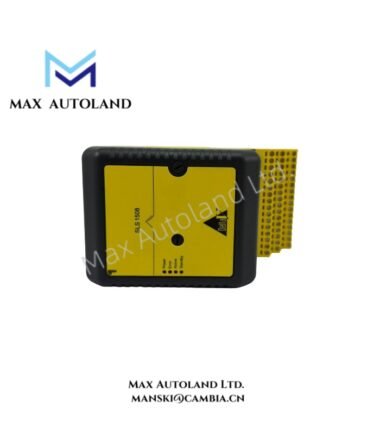

Configured for safety logic execution in the DeltaV SIS platform, the Emerson KJ2201X1-BA1 (KJ2201X1-BA1 SIS Logic Solver) provides direct physical and electrical processing for Safety Instrumented System control operations.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ2201X1-BA1 |
| Brand | Emerson |
| Origin | United States |
| Product Type | SIS Logic Solver (SLS 1508) |
| Weight | 0.48 kg |
| Dimensions | 8.3 x 12.5 x 10.5 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Local Bus Power: 24 VDC at 1 A; Field Power: 4 A maximum |
| Hazardous Area Certification | II 3G Ex ec IIC Gc |
| Hazardous Area Approval | FM16ATEX0056U, FM21UKEX0017U |
| North America Certification | CL. I Div. 2 GP. A,B,C,D; CL. I Zone 2 AEx/Ex ec IIC Gc |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Relative Humidity | 5 to 95% non-condensing |
| Shock Resistance | 10 g half-sine wave for 11 msec |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Calibration Requirement | Calibration is not required |
Emerson DeltaV SIS Safety Logic Execution
The KJ2201X1-BA1 operates as an SLS 1508 logic processing module within the DeltaV SIS architecture. It executes configured safety logic functions through the system communication interface and manages field power distribution requirements according to the installed carrier configuration.
Moreover, the module supports hazardous area installation requirements through Ex ec IIC Gc certification. The design incorporates controlled electrical separation between system power, local bus communication, and field circuit connections.
The Emerson SIS hardware platform uses deterministic signal processing for safety applications. Therefore, installation must follow DeltaV SIS hardware rules to maintain correct power isolation, grounding, and module operation.
Frequently Asked Questions
Q: Can the KJ2201X1-BA1 be removed while system power is energized?
A: No. Field power supplied through field terminals or bussed field power through the carrier must be removed before removing or connecting the module. Removal or insertion with energized system power is permitted only when the area is confirmed non-hazardous.
Q: Does the KJ2201X1-BA1 require periodic calibration?
A: No. The module does not require calibration during normal operation.
Q: Can users repair internal components of the KJ2201X1-BA1?
A: No. The unit contains no user serviceable parts and should not be disassembled.
Field Installation Guidelines
Install the KJ2201X1-BA1 according to DeltaV SIS Zone 2 installation instructions and the applicable hazardous area requirements.
Before installation, verify that the mounting carrier, local bus connection, and field power wiring match the specified system configuration. Ensure that field power remains isolated during module insertion or removal.
Route field wiring separately from high-energy switching circuits to reduce electrical interference. Connect cable shields according to the plant grounding standard and maintain proper enclosure and hazardous area protection methods.
Inspect module labels before installation to confirm serial number information, manufacturing location, and production date. Follow approved DeltaV M-Series hardware installation procedures for commissioning and maintenance activities.
