Overview

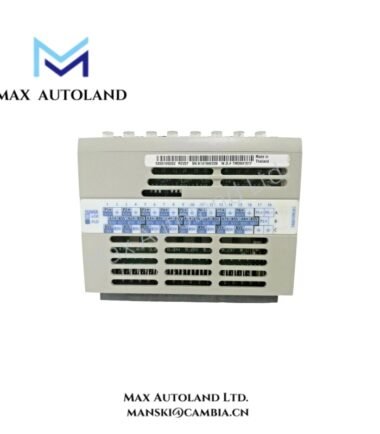

The Emerson 5X00109G02, also cataloged as the 5X00109G02 Analog Input Module, operates as a dedicated hardware component for acquiring 4-20 mA field signals within the Emerson Ovation Distributed Control System (DCS). The module converts analog process-loop signals into digital data for controller processing. The supplied configuration identifies eight analog input channels, 250 Ohm input impedance, and channel-to-ground galvanic isolation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5X00109G02 |
| Brand | Emerson / Westinghouse |
| Product Type | Analog Input Module |
| Platform | Emerson Ovation DCS |
| Input Channels | 8 analog input channels |
| Input Signal Range | 4-20 mA |
| HART Compatibility | HART compatible, according to supplied data |
| Input Impedance | 250 Ohm, +/- 1% |
| Galvanic Isolation | 1500 VDC between channels and ground |
| Accuracy | +/- 0.05% of full scale, nominal variation by revision |
| Operating Temp | 0 deg C to +60 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Operating Humidity | 5% to 95% non-condensing |
4-20 mA HART Loop and Channel Isolation
The Emerson 5X00109G02 processes analog current-loop signals through its eight input channels. The supplied 250 Ohm input impedance supports the specified electrical interface and may provide the required load characteristics for compatible loop configurations.
For HART-capable field circuits, the analog process signal and digital communication components operate on the same 4-20 mA loop. Therefore, loop wiring, field-device configuration, and system-side channel assignment should be verified against the applicable Ovation documentation before commissioning.
The specified 1500 VDC galvanic isolation between channels and ground provides electrical separation between the input circuitry and ground reference. This arrangement helps limit the transfer of ground-potential disturbances into the measurement circuit.
Frequently Asked Questions
Q: How many analog input channels are identified for the Emerson 5X00109G02?
A: The supplied technical data identifies 8 analog input channels.
Q: What input signal range is specified for the module?
A: The supplied data specifies a 4-20 mA analog current input range and identifies HART compatibility.
Q: Is the Emerson 5X00109G02 specified for channel-to-ground isolation?
A: Yes. The supplied data specifies 1500 VDC galvanic isolation between the input channels and ground.
Field Installation Guidelines
Install the module only in the applicable Emerson Ovation hardware location and verify that the module part number matches the configured system documentation.
Route analog input wiring separately from high-voltage, motor, and switching circuits to reduce induced electrical noise. Use shielded cable where required by the field installation design. Apply cable-shield grounding according to the plant grounding standard and the applicable Ovation installation documentation.
Verify loop polarity, channel assignment, field-device wiring, and 4-20 mA signal continuity before energizing the circuit. For HART-capable loops, confirm that the complete field circuit provides compatible communication conditions before attempting device configuration or diagnostics.
Do not assume hot-swap capability, power consumption, firmware compatibility, or redundant operation unless these characteristics are confirmed by the applicable Emerson Ovation hardware documentation for the installed revision.
