Overview

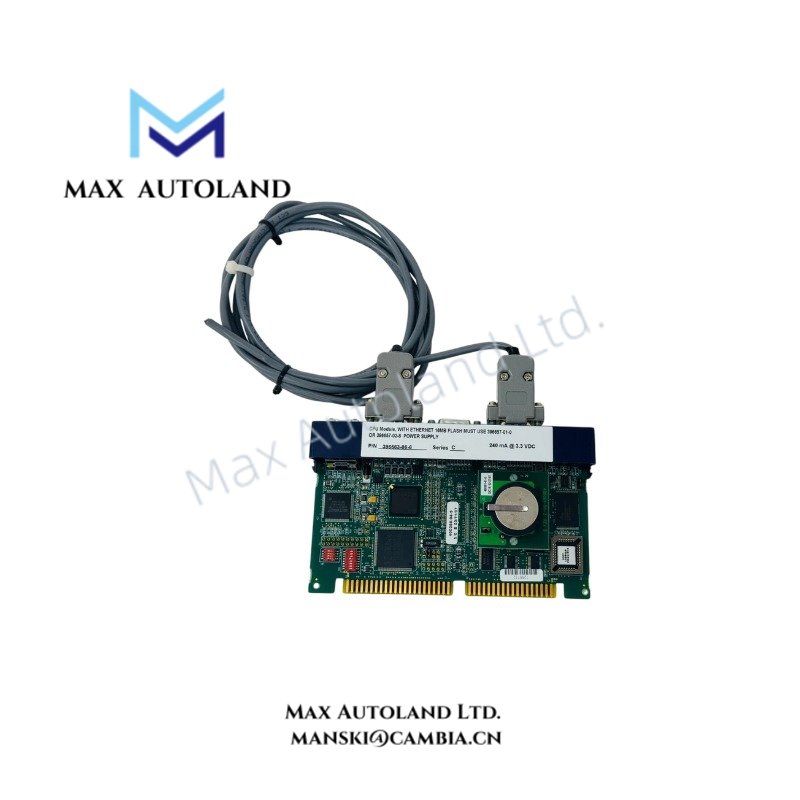

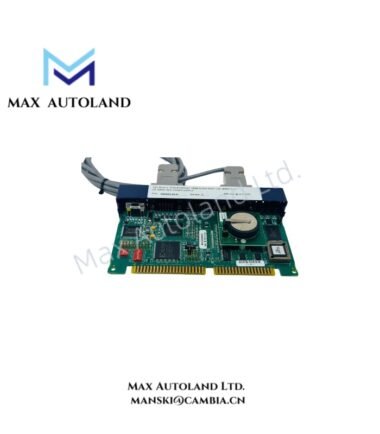

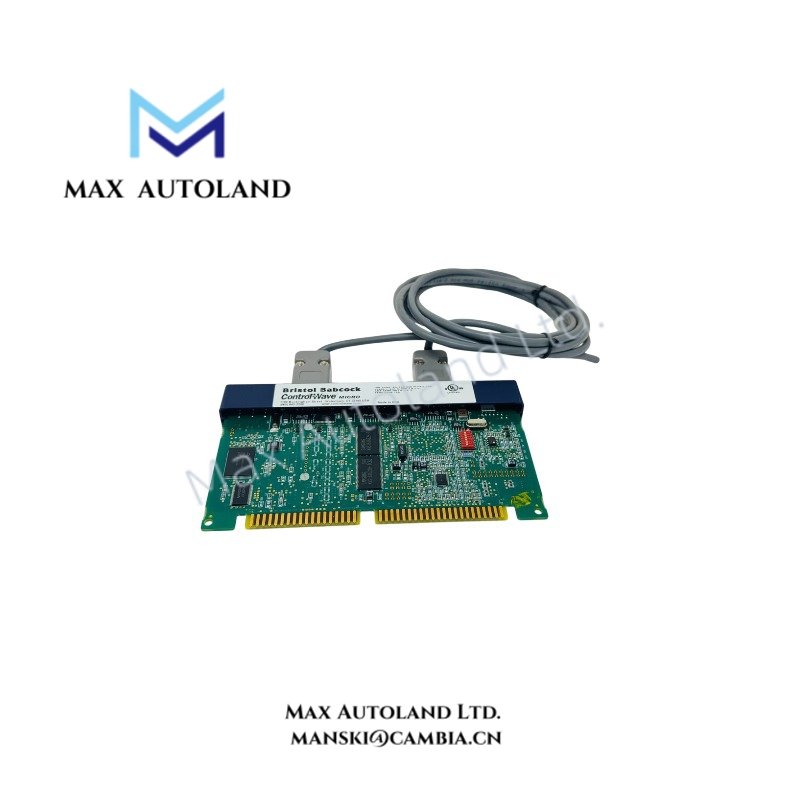

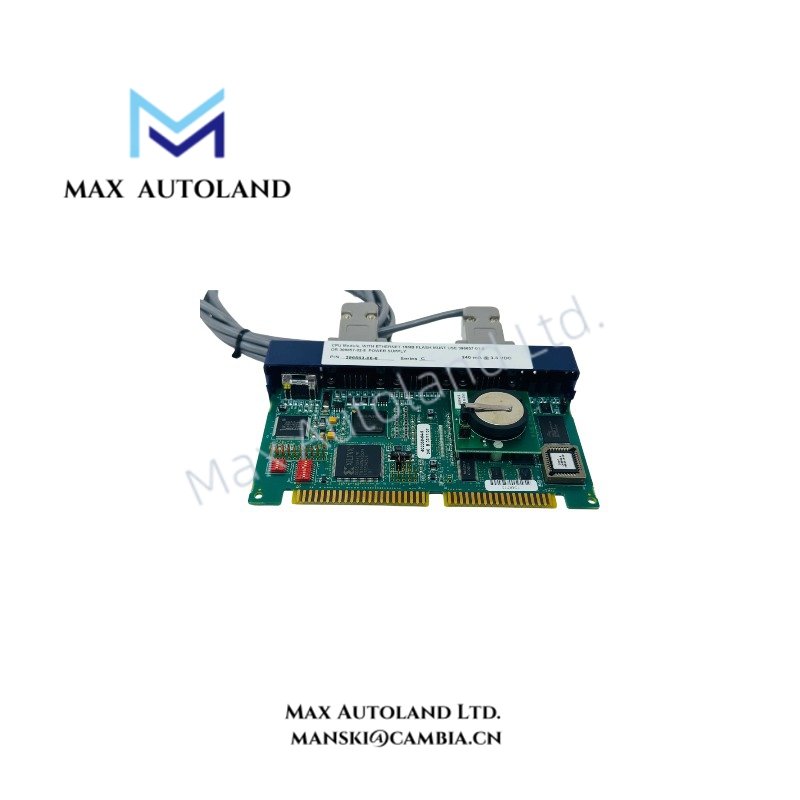

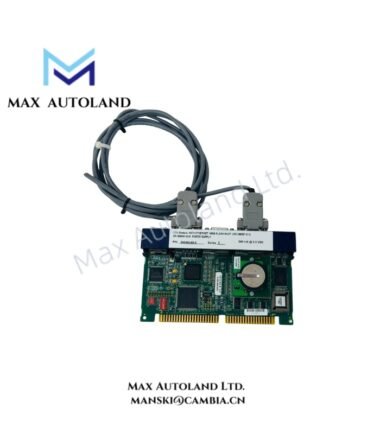

The Emerson 396563-06-6, also cataloged as the 396563-06-6 ControlWave Micro CPU Module, operates as a dedicated processing hardware component for program execution, memory management, and communication control within Emerson Bristol ControlWave Micro controller platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 396563-06-6 |
| Brand | Emerson Bristol |
| Origin | USA |
| Product Type | ControlWave Micro CPU Module |
| Series | ControlWave Micro |
| Processor | 32-bit ARM 9 Processor |
| Processor Speed | 150 MHz |
| Program Execution Memory | 4 MB SDRAM |
| SRAM Memory | 1 MB battery-backed SRAM |
| Flash Memory | 16 MB onboard Flash |
| Communication Interfaces | Ethernet, RS-232, RS-485 |
| Internal Power Supply | 3.3 VDC |
| Current Consumption | 240 mA |
| Weight | Approx. 0.12 kg |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Approx. 240 mA at 3.3 VDC |
| Security Function | Key-lock security switch |
| Time Management | Real-time clock |
| Low Power Function | Sleep mode support |
| Installation Method | ControlWave Micro controller chassis |
Emerson ControlWave Micro Communication and Processing Functions
The 396563-06-6 CPU Module provides the central execution layer for ControlWave Micro systems. It processes application logic, manages onboard memory resources, and controls communication exchanges between the controller platform and connected devices.
Because the module supports Ethernet, RS-232, and RS-485 interfaces, it enables direct communication with supervisory systems, field devices, and remote I/O networks. The embedded real-time clock supports event timestamping and operational data recording.
For Emerson process control architectures, communication functions can integrate with field instrumentation networks. However, this CPU module does not provide direct 4-20 mA HART input processing, FOUNDATION Fieldbus interface functions, or analog channel isolation hardware. These functions require compatible I/O modules within the ControlWave Micro system.
Frequently Asked Questions
Q: What processor architecture does the Emerson 396563-06-6 use?
A: The module uses a 32-bit ARM 9 processor operating at 150 MHz for embedded control program execution.
Q: What memory resources are available on the 396563-06-6 CPU Module?
A: The module provides 4 MB SDRAM for program execution, 1 MB battery-backed SRAM for retained data storage, and 16 MB onboard Flash memory for firmware and application storage.
Q: What communication interfaces are integrated into the module?
A: The module includes Ethernet, RS-232, and RS-485 communication interfaces for connection with ControlWave Micro system components and external networks.
Field Installation Guidelines
- Install the 396563-06-6 only in compatible Emerson Bristol ControlWave Micro controller chassis.
- Verify the module connector alignment before inserting the CPU board into the chassis.
- Confirm the internal 3.3 VDC supply condition before system startup.
- Separate communication wiring from high-voltage power cables to reduce electrical interference.
- Apply proper shielding and grounding practices for RS-232 and RS-485 communication wiring.
- Configure Ethernet parameters according to the ControlWave Micro application settings.
- Verify firmware compatibility before replacing or upgrading the CPU module.
- Check retained memory operation after module installation and controller restart.
