Overview

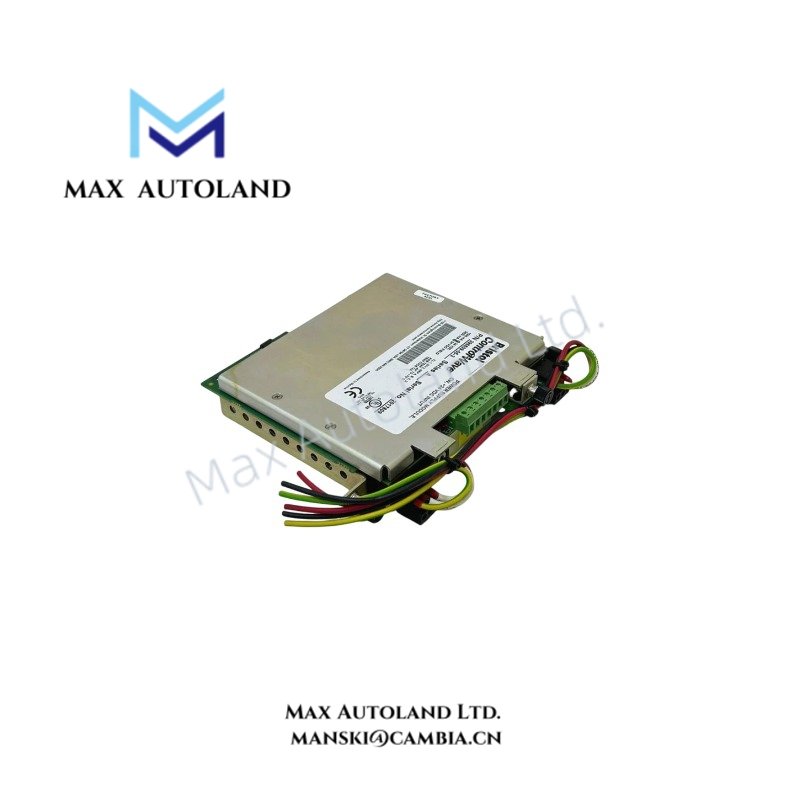

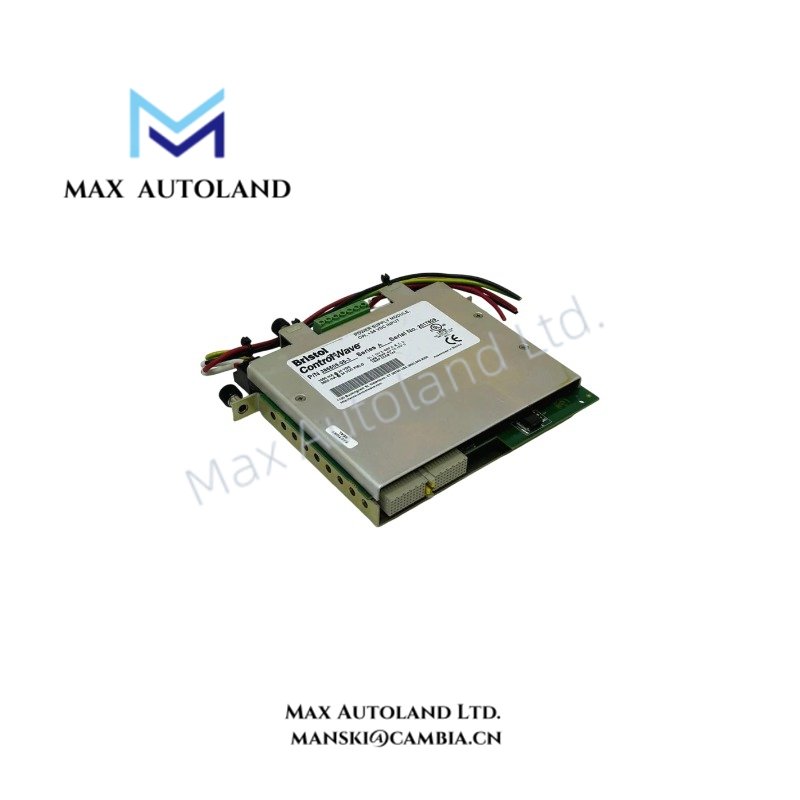

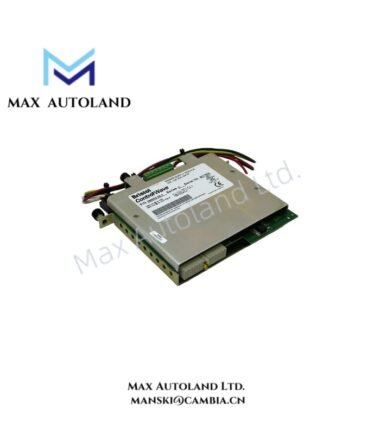

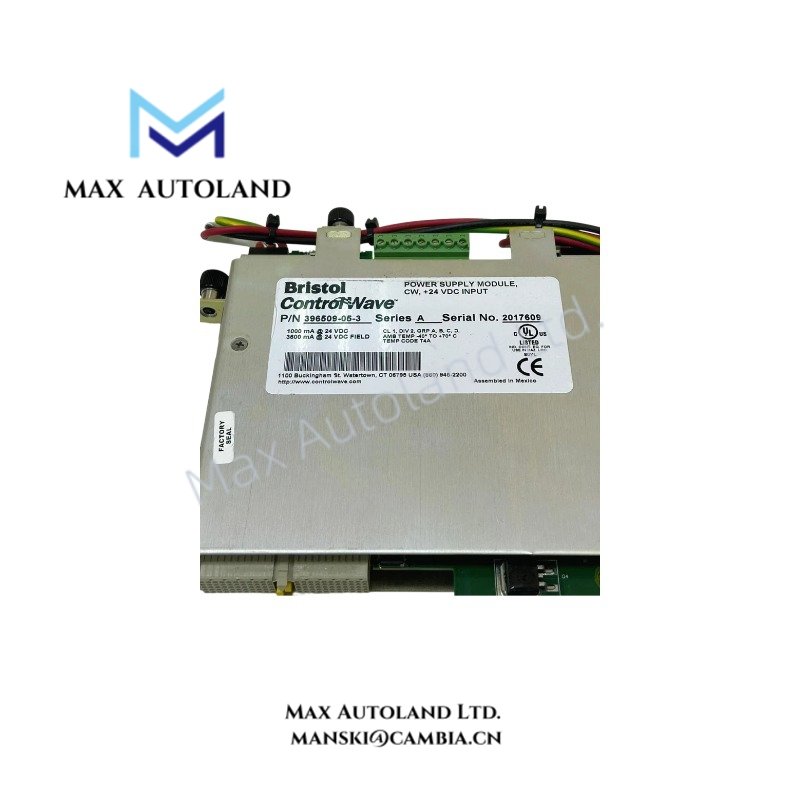

The Emerson 396509-05-3, also cataloged as the 396509-05-3 Power Supply Module, operates as a dedicated hardware component for DC power distribution within Emerson ControlWave Series A rack-based control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | Emerson 396509-05-3 |
| Brand | Emerson |
| Origin | USA |
| Weight | Approximately 0.45 kg |
| Dimensions | Not specified in available technical data |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Input power depends on connected system load; provides +24 VDC logic and field power outputs |
| Product Type | Power Supply Module |
| Series | ControlWave Series A |
| Input Voltage | +24 VDC |
| Logic/System Output Current | 1000 mA @ 24 VDC |
| Field Power Output Current | 3600 mA @ 24 VDC |
Process Control Power Distribution Characteristics
The Emerson 396509-05-3 provides regulated DC power delivery for ControlWave Series A control assemblies. It supplies separate current paths for system logic circuits and field devices. Therefore, the module supports stable operation of connected I/O hardware and external instrumentation loads.
The module design follows Emerson process control hardware requirements for rack-based power architecture. In addition, the power interface supports organized distribution of +24 VDC supply sources across ControlWave system components.
Frequently Asked Questions
Q: What voltage input does the Emerson 396509-05-3 Power Supply Module require?
A: The module requires a +24 VDC input supply for ControlWave Series A rack power distribution.
Q: Does the 396509-05-3 provide separate output current paths?
A: Yes. The module provides a 1000 mA logic/system output path and a 3600 mA field power output path at 24 VDC.
Q: Can the 396509-05-3 operate in redundant power configurations?
A: The available technical data does not specify redundant power operation. System configuration should follow the ControlWave Series A hardware installation documentation.
Field Installation Guidelines
Install the Emerson 396509-05-3 module in the designated ControlWave Series A rack position according to the system hardware manual.
Verify the +24 VDC supply polarity before connecting field wiring. Use appropriate industrial wiring practices, including separated routing for power conductors and low-level signal cables.
Connect protective grounding according to the control cabinet grounding scheme. Maintain proper cable shielding and terminate shields according to site electrical standards to reduce electrical interference.
Confirm the connected load remains within the specified output current capacity. Inspect terminal connections and rack interfaces before system energization.
