Overview

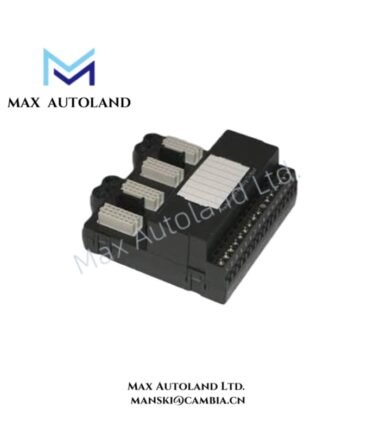

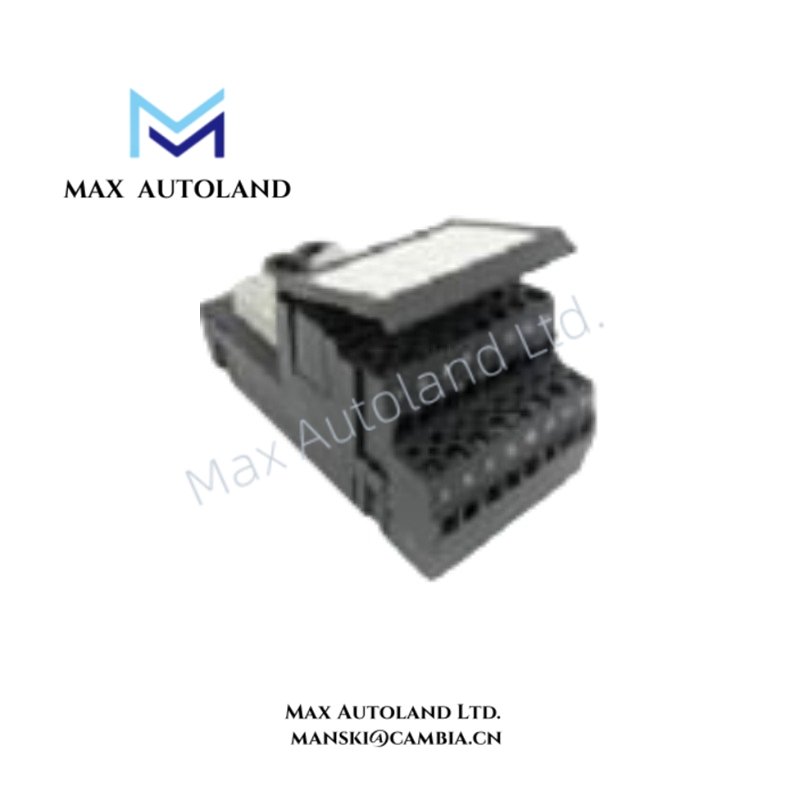

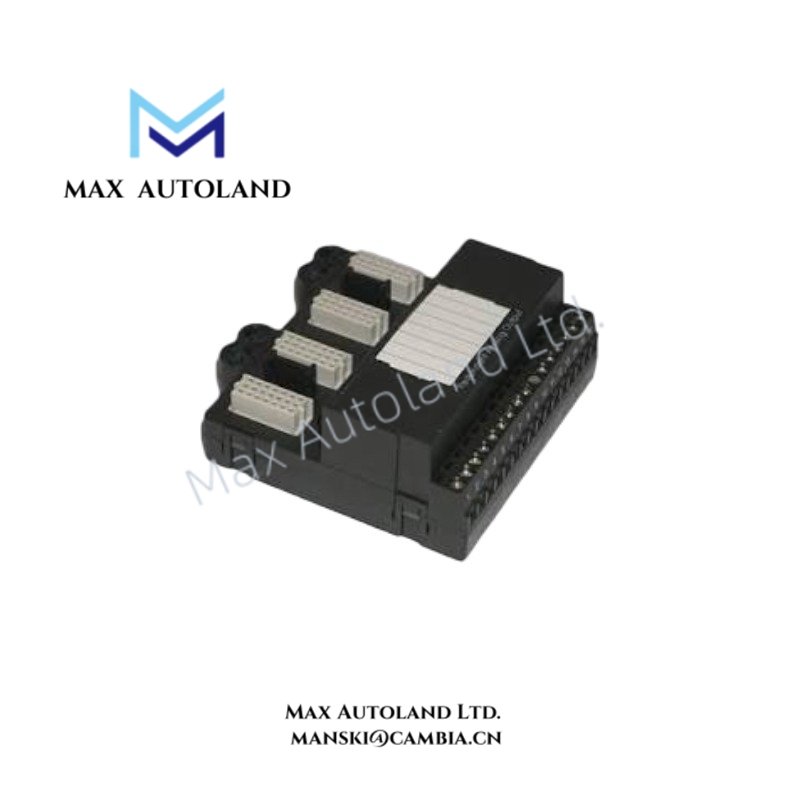

The Emerson DeltaV KC4011X1-BA1, also cataloged as the KC4011X1-BA1 Analog Input Terminal Block, operates as a dedicated hardware component for 16-channel 4-wire analog signal termination within Emerson DeltaV Distributed Control System platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KC4011X1-BA1 |
| Brand | Emerson |
| Product Type | Analog Input Terminal Block |
| System Platform | DeltaV Distributed Control System |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Field circuit power: 30 VDC at 500 mA per channel |
| Signal Configuration | 16-channel 4-wire analog input termination |
| Terminal Block Key Position | A2 |
| Field Circuit Capacity | 30 VDC, 500 mA per channel |
| Relative Humidity | 5% to 95% non-condensing |
| Shock Resistance | 10 g half-sine wave, 11 ms |
| Vibration Resistance | 1 mm peak-to-peak at 2 to 13.2 Hz; 0.7 g at 13.2 to 150 Hz |
| Airborne Contaminant Classification | ISA-S71.04-1985 Class G3 |
DeltaV Process Signal Interface Characteristics
The KC4011X1-BA1 provides physical termination for analog field circuits connected to Emerson DeltaV I/O assemblies. Therefore, it maintains structured signal routing between field instruments and DeltaV analog input channels.
The terminal block supports 16-channel 4-wire analog input wiring configurations. In addition, the design separates field wiring connections from controller-level processing hardware to simplify maintenance and channel identification.
The module architecture supports process instrumentation interfaces that use standard analog signal transmission methods. Moreover, Emerson DeltaV installations can integrate channel-to-channel isolation practices and controlled grounding methods to reduce field signal interference.
Frequently Asked Questions
Q: What signal configuration does the KC4011X1-BA1 support?
A: The KC4011X1-BA1 supports a 16-channel 4-wire analog input termination configuration for DeltaV system field connections.
Q: Does the KC4011X1-BA1 provide field circuit power capability?
A: Yes. The terminal block supports field circuit power up to 30 VDC at 500 mA per channel according to the provided specifications.
Q: What environmental conditions apply to this terminal block?
A: The unit supports an operating temperature range from -40 deg C to +70 deg C, with 5% to 95% non-condensing humidity conditions.
Field Installation Guidelines
Install the KC4011X1-BA1 according to Emerson DeltaV hardware installation procedures and approved cabinet wiring practices.
- Verify terminal block key position A2 before installation to prevent incorrect hardware placement.
- Route analog signal cables separately from high-voltage power conductors to reduce electrical noise coupling.
- Connect cable shields according to the plant grounding standard and avoid multiple uncontrolled shield grounding points.
- Confirm field wiring polarity and channel assignments before applying field circuit power.
- Inspect terminal connections for correct tightening and mechanical retention before system commissioning.
- Follow DeltaV I/O cabinet documentation when integrating the terminal block with controller and I/O assemblies.
