Overview

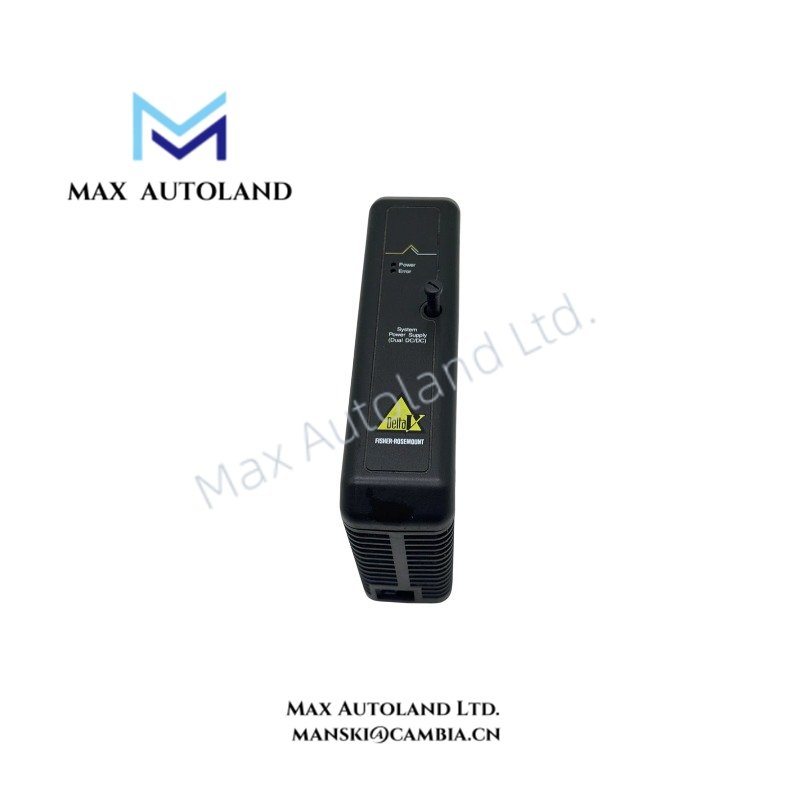

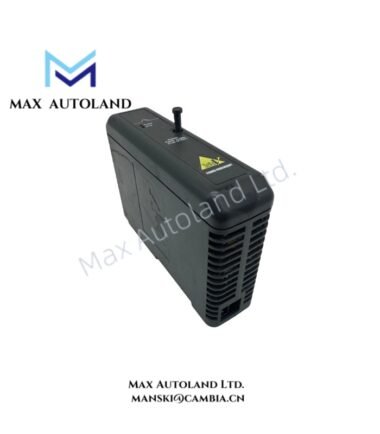

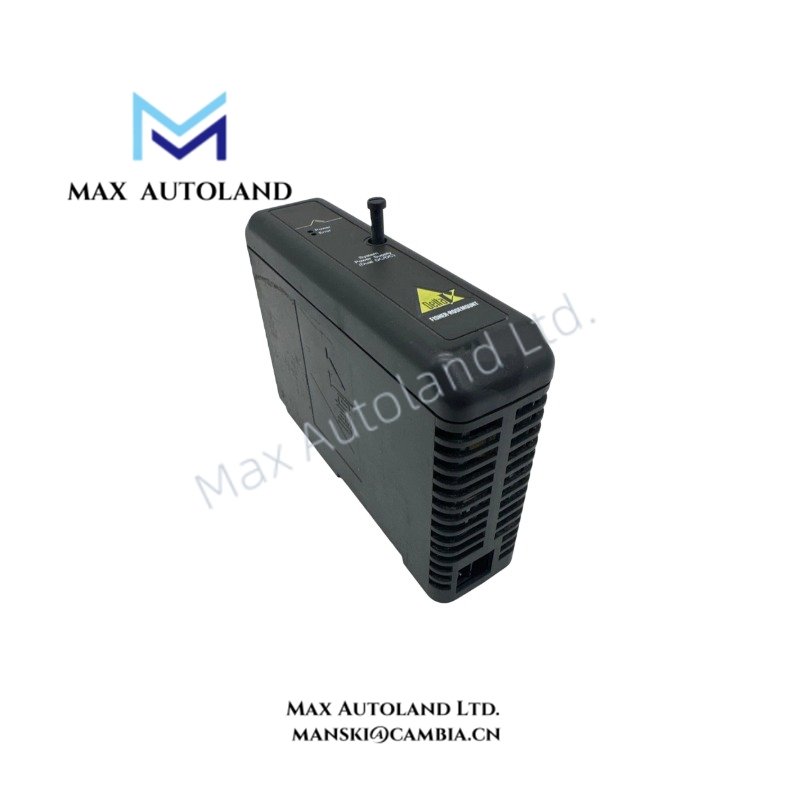

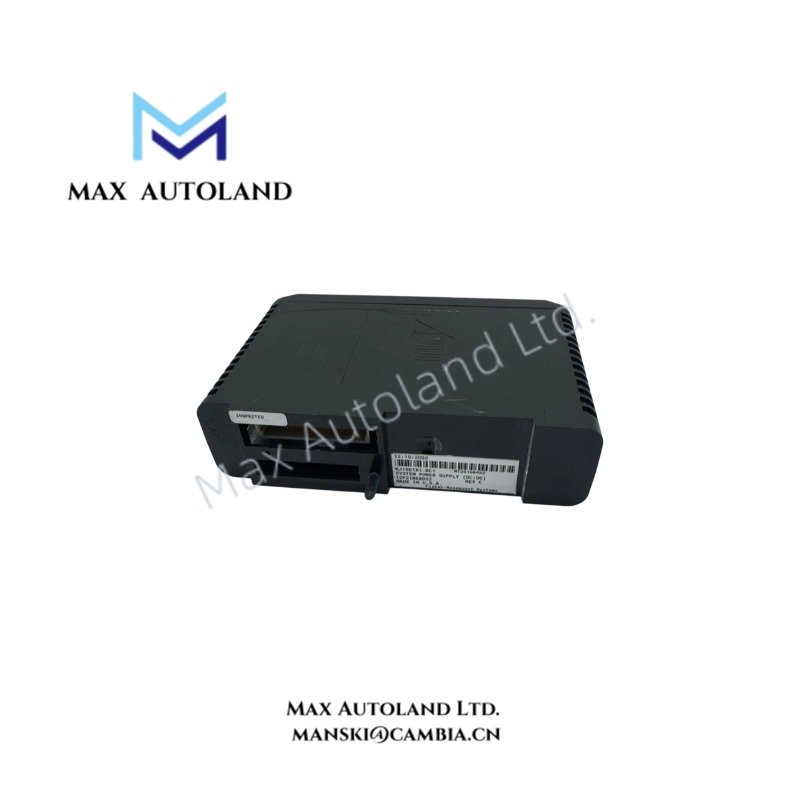

The Emerson KJ1501X1-BC1, also cataloged as the KJ1501X1-BC1 System Dual DC Power Supply, operates as a dedicated DC/DC power conversion component for electrical supply distribution within Emerson DeltaV control system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ1501X1-BC1 |
| Brand | Emerson |
| Product Type | System Dual DC Power Supply |
| Origin | USA |
| Weight | 0.7 kg |
| Dimensions | 5.1 cm x 15.2 cm x 10.2 cm |
| Power Consumption | Input: 5.4 A at 24 VDC; 14.8 A at 12 VDC |
| Input Voltage | 24 VDC / 12 VDC DC input supply |
| Output Power | 10 W maximum |
| Output Current | 4.5 A at 12 VDC; 13.0 A at 12 VDC |
| Alarm Relay Contact Rating | 2 A at 30 VDC; 2 A at 250 VAC |
| Tariff Code | 8537101190 |
Emerson DeltaV Power Distribution Characteristics
The KJ1501X1-BC1 provides DC/DC power conversion and distribution functions for DeltaV system hardware assemblies. The module accepts DC input sources and generates regulated DC outputs for connected control system components.
Additionally, the power supply design supports dual DC supply configurations, allowing system architectures to maintain separated input power paths. The alarm relay contact circuit provides electrical status indication through external monitoring interfaces.
For Emerson control system installations, power modules must maintain correct field wiring polarity, grounding practices, and load distribution. Furthermore, the module operates within DeltaV hardware power architecture where supply current allocation and backplane loading require verification during system design.
The module specification does not define FOUNDATION Fieldbus or HART communication functions; however, Emerson power architectures typically support isolated instrument communication modules that operate with 4-20 mA HART loop protocol and FOUNDATION Fieldbus connectivity when configured with compatible I/O hardware.
Frequently Asked Questions
Q: What is the primary function of the Emerson KJ1501X1-BC1 module?
A: The KJ1501X1-BC1 functions as a DC/DC system power supply module that converts DC input power into regulated DC outputs for Emerson control system hardware.
Q: Does the KJ1501X1-BC1 provide communication interfaces?
A: No. The module provides electrical power conversion and alarm relay functions. It does not contain process communication channels or fieldbus interfaces.
Q: What should be checked before installing the KJ1501X1-BC1?
A: Verify the DC input voltage range, output load requirements, wiring polarity, grounding method, and alarm relay connection conditions before installation.
Field Installation Guidelines
Install the KJ1501X1-BC1 in the designated Emerson system cabinet position according to the applicable hardware installation documentation.
Confirm that DC supply wiring uses correct polarity before applying power. Separate power wiring from signal wiring to reduce electrical interference. Maintain proper grounding connections between cabinet assemblies and system protective earth points.
Before commissioning, verify input voltage presence, output voltage stability, and alarm relay contact operation. Ensure connected loads remain within the specified current ratings to prevent power supply overload conditions.
