Overview

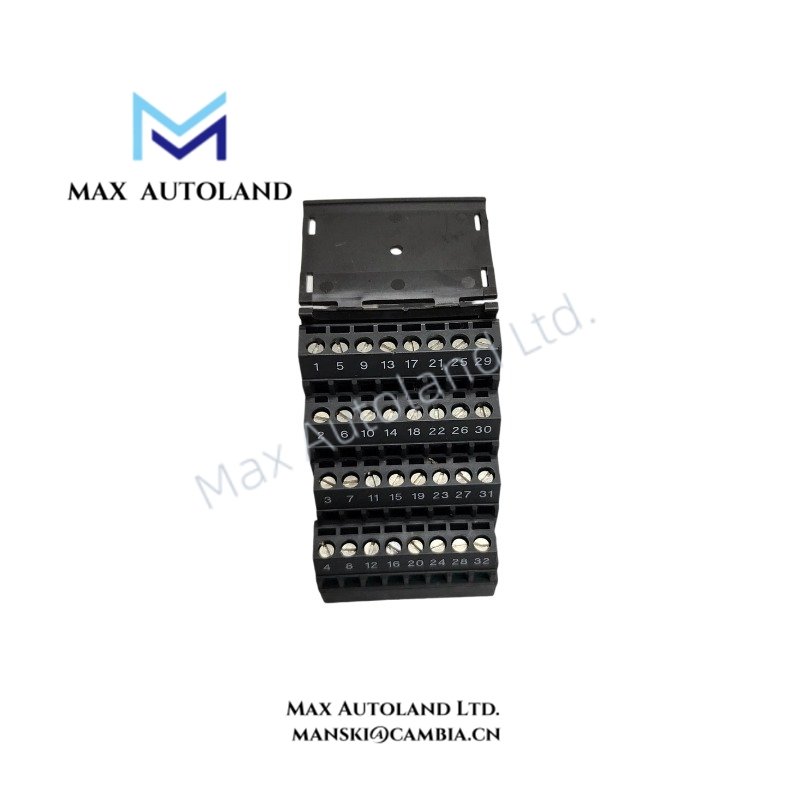

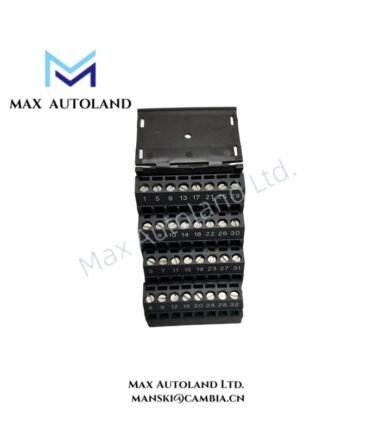

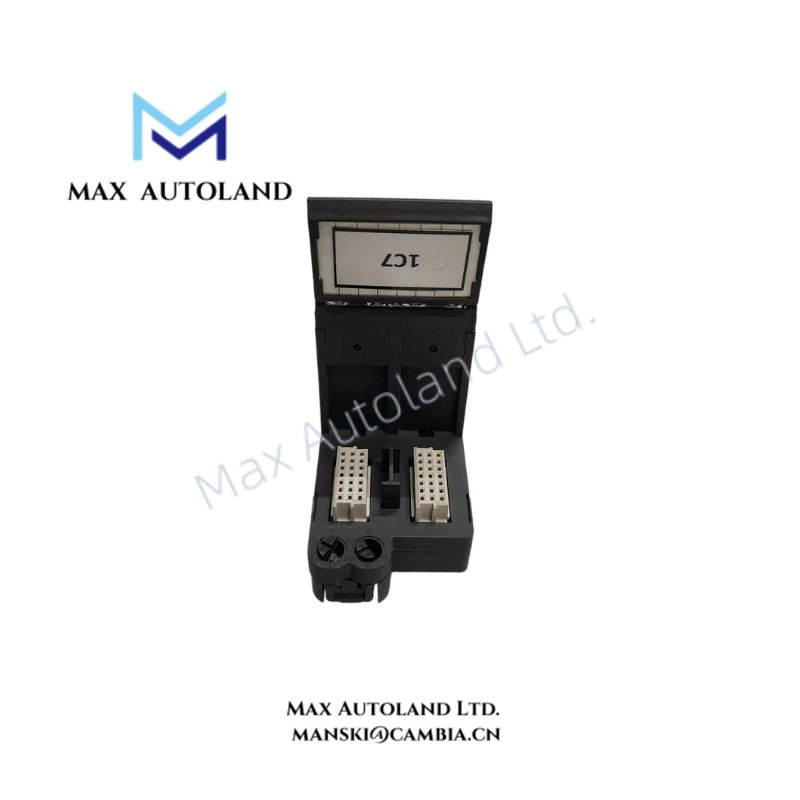

The Emerson KJ4001X1-CJ1, also cataloged as the KJ4001X1-CJ1 32-Channel Terminal Block, operates as a dedicated hardware component for field signal termination and electrical connection within the DeltaV Electronic Marshalling CHARM I/O Subsystem.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ4001X1-CJ1 |
| Brand | Emerson |
| Product Type | 32-Channel Terminal Block |
| System Platform | DeltaV Electronic Marshalling CHARM I/O Subsystem |
| Weight | 0.18 kg |
| Dimensions | 4.1 x 12.5 x 10.5 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Input Power Rating 30 VDC @ 1 A |
| Relative Humidity | 5 to 95% non-condensing |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
DCS Signal Termination and Channel Isolation Characteristics
The Emerson KJ4001X1-CJ1 provides a 32-channel physical termination interface for CHARM I/O connections. It supports field wiring organization and signal routing between external devices and the DeltaV Electronic Marshalling architecture.
In addition, the terminal block maintains electrical separation between field wiring points and system electronics through the defined CHARM subsystem design. Therefore, engineers can apply standard DCS installation practices for signal segregation, shield management, and grounding control.
The KJ4001X1-CJ1 belongs to the Emerson process control hardware family, where channel-to-channel isolation concepts and modular I/O termination methods support flexible field signal deployment. However, this terminal block does not provide independent signal processing, communication protocol conversion, or field measurement functions.
Frequently Asked Questions
Q: Can the KJ4001X1-CJ1 be removed while the system power remains energized?
A: No. This unit cannot be removed or inserted with system power energized. Maintenance personnel must disconnect system power before replacement or installation.
Q: Does the KJ4001X1-CJ1 require field calibration?
A: No. The terminal block contains no measurement circuitry and requires no calibration adjustment.
Q: Does the KJ4001X1-CJ1 contain user-serviceable internal components?
A: No. The unit contains no user-serviceable parts and should not be disassembled during maintenance activities.
Field Installation Guidelines
Install the KJ4001X1-CJ1 according to Emerson DeltaV Electronic Marshalling CHARM I/O Subsystem installation procedures.

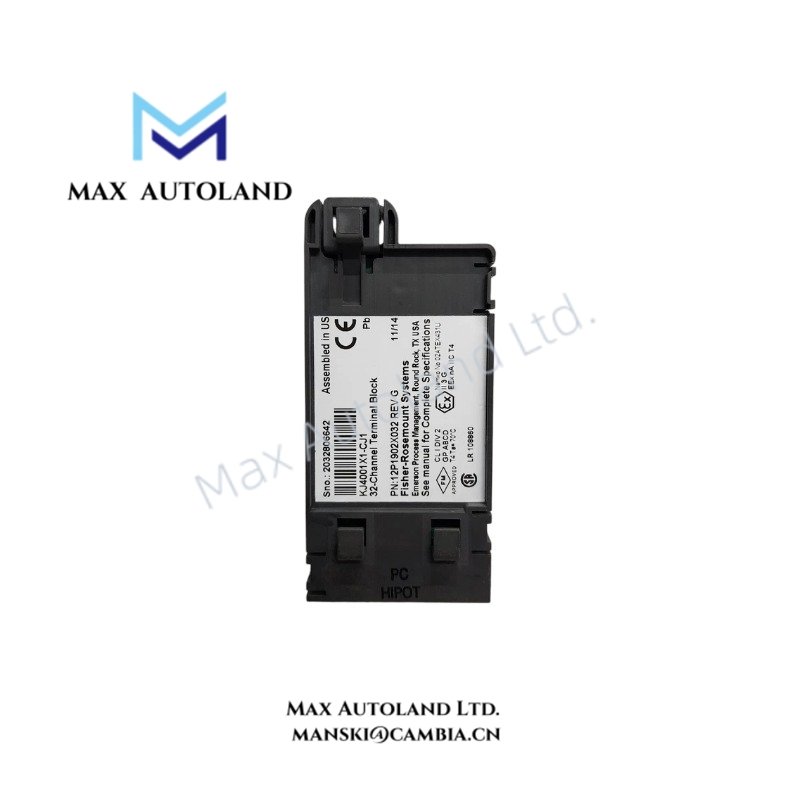

Before installation, verify that system power is removed and confirm the terminal block identification label, serial number, and manufacturing information.
During field wiring, maintain proper cable routing practices. Separate low-level analog signal wiring from high-current conductors to reduce electrical interference. Apply appropriate shield termination methods according to the plant grounding standard.
For hazardous area installations, follow the specific Zone 2 installation requirements defined for the DeltaV CHARM I/O subsystem. Confirm that enclosure, wiring method, and area classification requirements match the installed environment before operation.
