Overview

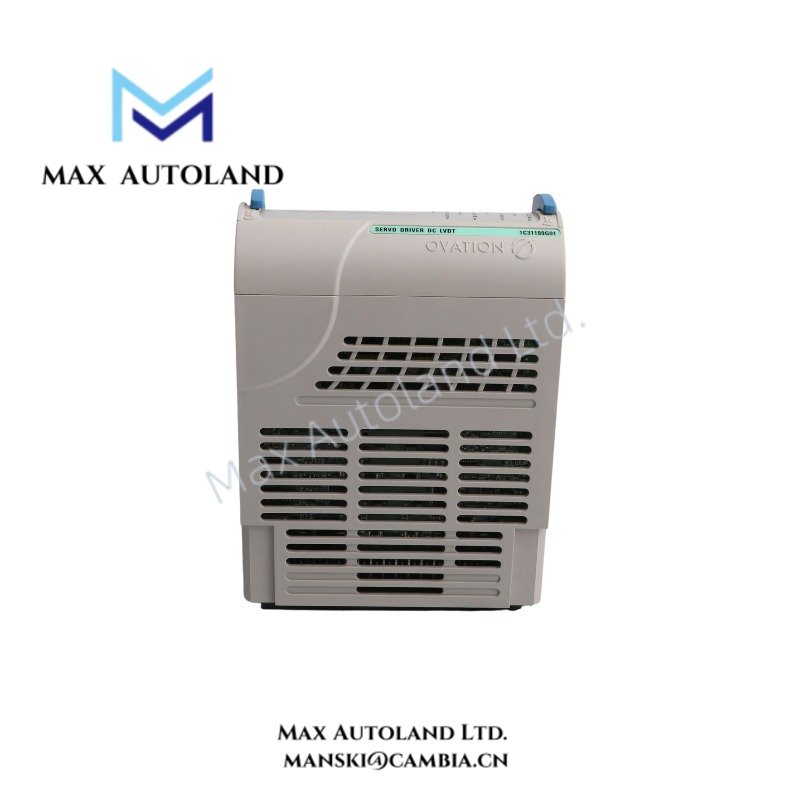

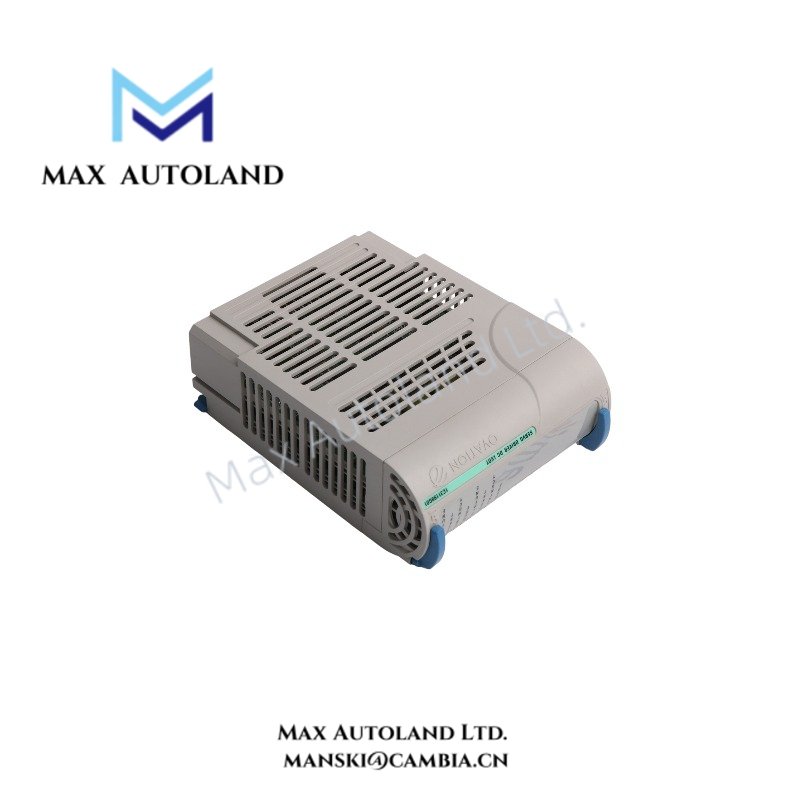

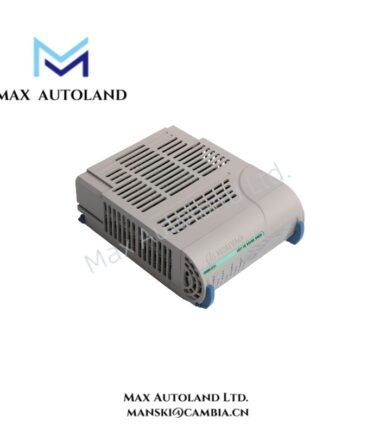

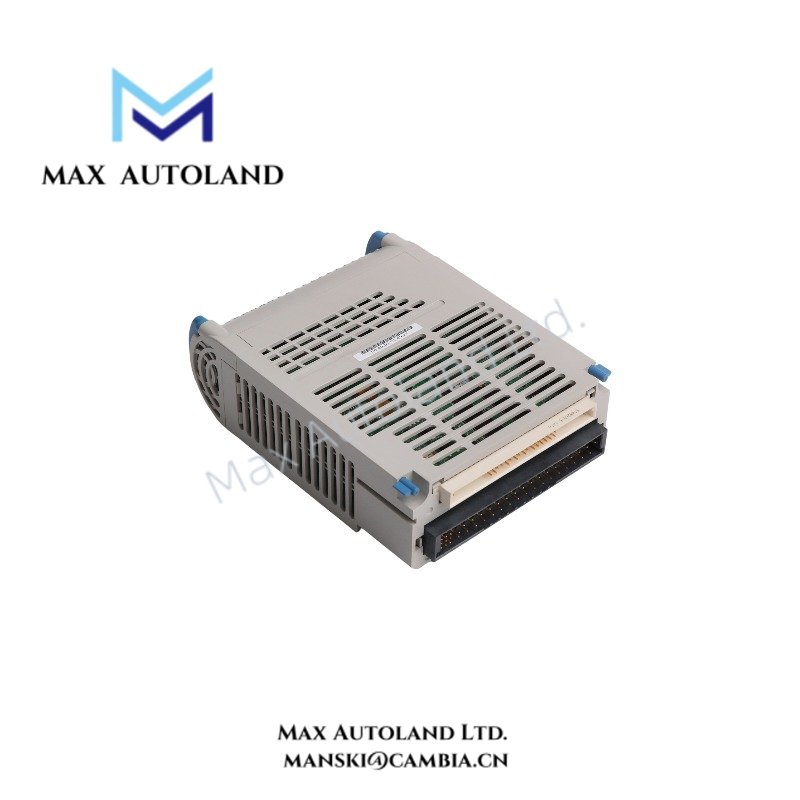

Configured for electro-hydraulic servo actuator control in the Emerson Ovation Distributed Control System, the Emerson 1C31199G01 (1C31199G01 Servo Driver Electronics Module) provides direct electrical signal execution. The module processes control commands and actuator feedback within the servo loop. It uses a 24 VDC input supply and supports adjustable output current for connected servo devices. PWM control processing and RS-485 communication are listed for control and diagnostic functions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1C31199G01 |
| Brand | Emerson / Ovation |
| Product Type | Servo Driver Electronics Module |
| System | Emerson Ovation Distributed Control System |
| Weight | 0.34 kg |
| Estimated Shipping Dimensions | 12 x 5 x 16.2 cm |
| Physical Dimensions | 12 x 8.6 x 14 cm |
| Operating Temp | -20 deg C to +60 deg C |
| Humidity | 5% to 95%, non-condensing |
| Input Voltage | 24 VDC |
| Output Current | Adjustable from 0.5 A to 5 A |
| Control Signal | PWM |
| PWM Frequency | 1 kHz to 20 kHz |
| Signal Response Time | Less than 2 ms |
| Communication Interface | RS-485 |
| Insulation Resistance | Greater than 100 Mohm at 500 VDC |
| Protection Functions | Over-voltage, under-voltage, short-circuit, and thermal shutdown |
| Mounting Type | Panel mount |
DCS Process Signal and Channel Interface Characteristics
Within a DCS environment, process control hardware commonly interfaces with field instrumentation through electrically separated signal paths and controlled communication circuits. The Emerson 1C31199G01 uses its servo control electronics to process command signals and actuator feedback as part of the associated control loop.
The listed RS-485 interface supports network-based control and diagnostic communication. However, the provided specifications do not identify HART, FOUNDATION Fieldbus, or Profibus PA support for this specific module. Therefore, these communication protocols should not be assumed for the 1C31199G01 without system-level documentation.
The servo output current range of 0.5 A to 5 A allows configuration according to the connected actuator circuit requirements. Protection circuitry monitors abnormal supply, output, and thermal conditions.
Frequently Asked Questions
Q: What power supply does the Emerson 1C31199G01 require?
A: The provided specification lists a 24 VDC input supply. The available documentation does not specify the module’s total power consumption or backplane current load.
Q: Does the 1C31199G01 support direct digital communication?
A: The module is specified with an RS-485 communication interface for network-based control and diagnostic functions. No additional fieldbus protocol support is specified in the provided data.
Q: Can the output current be configured for different servo devices?
A: Yes. The specified output current is adjustable from 0.5 A to 5 A. The final setting should match the electrical requirements of the connected servo actuator and associated control circuit.
Field Installation Guidelines
Mount the Emerson 1C31199G01 on a suitable panel according to the applicable Ovation system hardware arrangement. Verify that the mounting surface provides adequate mechanical support and allows sufficient clearance for wiring and heat dissipation.
Connect the 24 VDC supply with correct polarity and isolate power before installing or removing field wiring. Route actuator power wiring separately from low-level communication and feedback circuits where practical. Use appropriate shielding and grounding practices for signal cables to reduce electrical noise within the servo loop.
Before energizing the module, verify the configured output current against the connected actuator requirements. Inspect RS-485 wiring for correct polarity, termination, and network configuration according to the installed system documentation. Confirm that the installation environment remains within the specified temperature and humidity limits.
