Overview

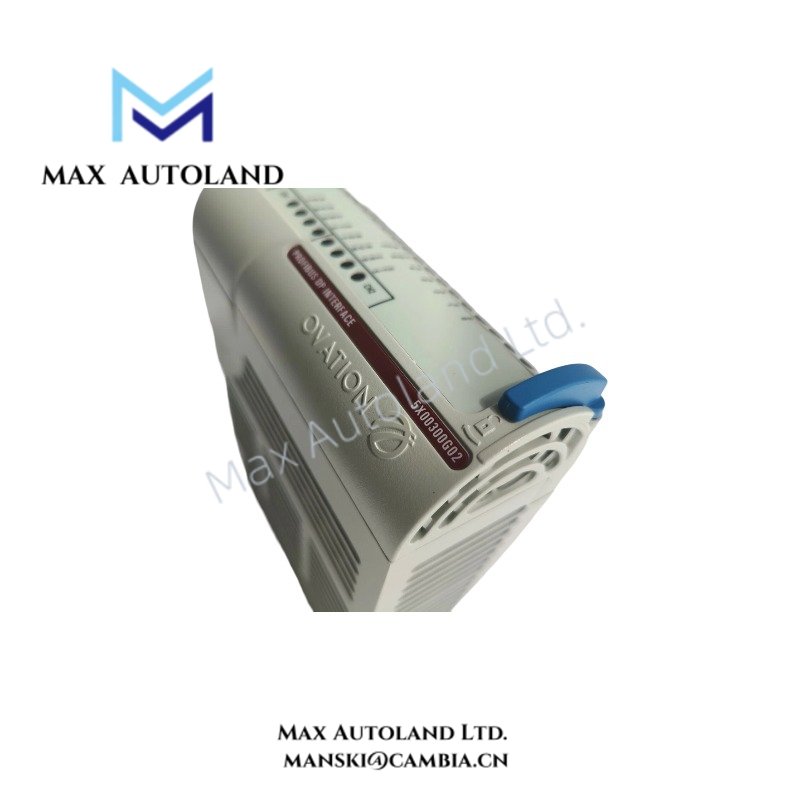

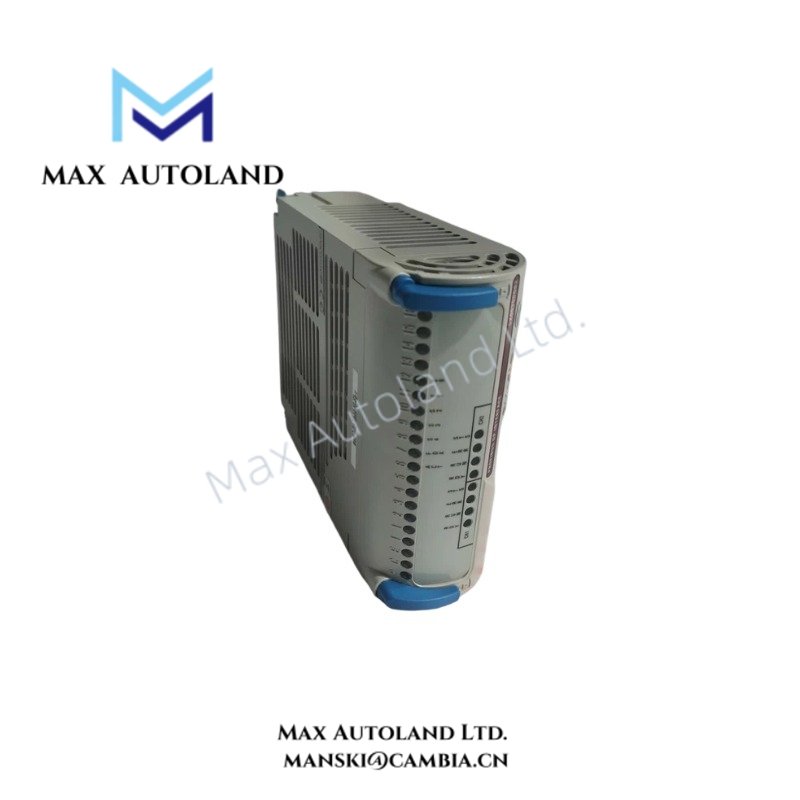

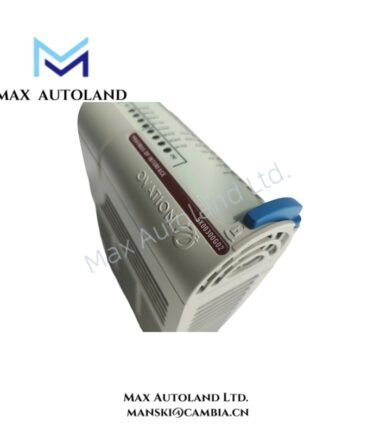

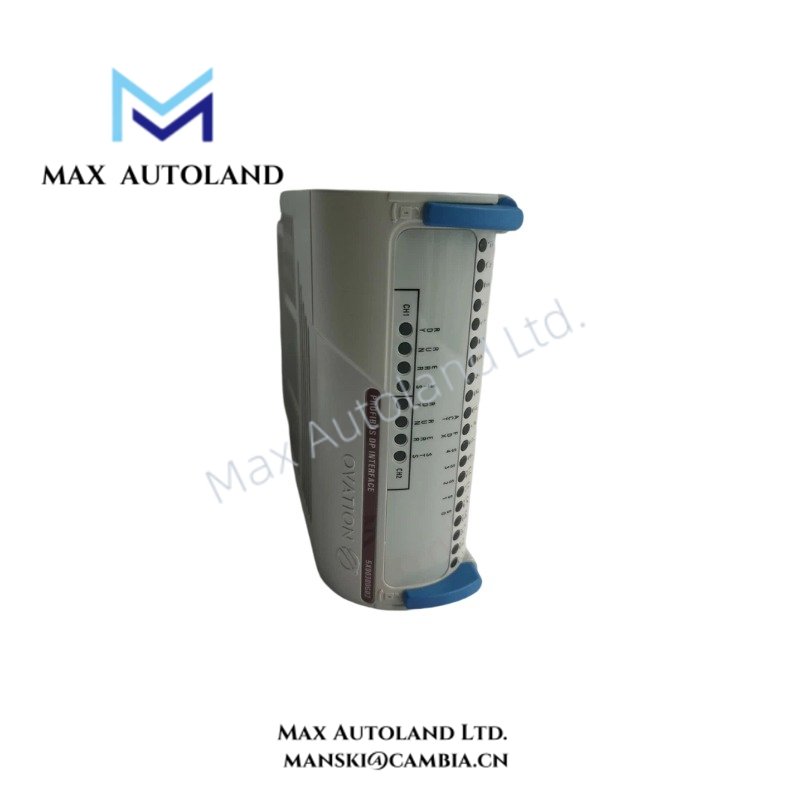

The Emerson 5X00300G02, also cataloged as the 5X00300G02 Analog Output Module, operates as a dedicated hardware component for generating analog control signals within Emerson Ovation DCS architectures. The module provides 16 analog output channels with an output range of -10 V to +10 V, allowing the control system to transmit electrical command signals to connected field interfaces and process equipment.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5X00300G02 |
| Brand | Emerson |
| Product Family | Ovation DCS |
| Product Type | Analog Output Module |
| Number of Channels | 16 |
| Output Range | -10 V to +10 V |
| Accuracy | 0.1% |
| Update Rate | 250 ms |
| Power Consumption | 24 VDC, 200 mA |
| Operating Temp | -40 deg C to +70 deg C |
| Dimensions | Approximately 173 mm x 100 mm x 42 mm |
Process Signal and Channel Isolation Characteristics
The Emerson Ovation 5X00300G02 processes controller output data and converts the assigned channel values into analog voltage signals for external control circuits. Each channel requires correct signal routing and field-side reference configuration to prevent unintended interaction between connected circuits.
For DCS analog installations, technicians should evaluate channel-to-channel isolation requirements together with the characteristics of the connected field interface. Signal cables should remain separated from high-current conductors and switching circuits where electrical interference may affect analog signal stability. Shield termination should follow the applicable Ovation system and site grounding requirements.
The module supports analog signal execution within the Ovation DCS architecture. However, the provided technical data does not specify HART communication capability, FOUNDATION Fieldbus connectivity, or Profibus PA connectivity for this model.
Frequently Asked Questions
Q: How many analog output channels does the 5X00300G02 provide?
A: The provided specifications identify 16 analog output channels.
Q: What output signal range does the module support?
A: Each module application supports an analog output range of -10 V to +10 V according to the provided specifications.
Q: What power supply requirement is specified for the module?
A: The provided specification lists a power requirement of 24 VDC with a current consumption of 200 mA.
Field Installation Guidelines
Install the Emerson 5X00300G02 only in the applicable Ovation hardware assembly and follow the approved system documentation for module orientation and connector engagement.
Verify that system power is removed or that the applicable maintenance procedure permits module replacement before handling the hardware. Do not assume hot-swap capability unless the installed Ovation system documentation explicitly supports it.
Route analog signal wiring separately from motor feeders, contactor circuits, and other high-current conductors. Apply shield grounding according to the site electrical grounding design and the Ovation installation requirements.
Before connecting field equipment, verify the required input range and reference configuration of the receiving device. Confirm that the connected circuit accepts the commanded voltage range and does not exceed the module interface requirements.
