AIP532 Yokogawa ESB Bus Coupler Module

Overview

Yokogawa AIP532 ESB Bus Coupler Module

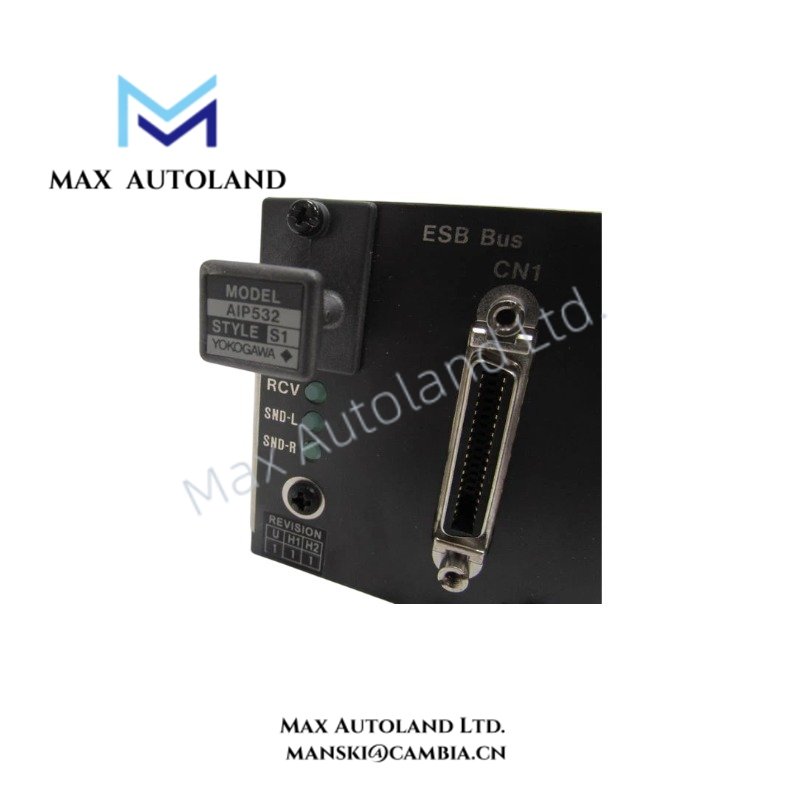

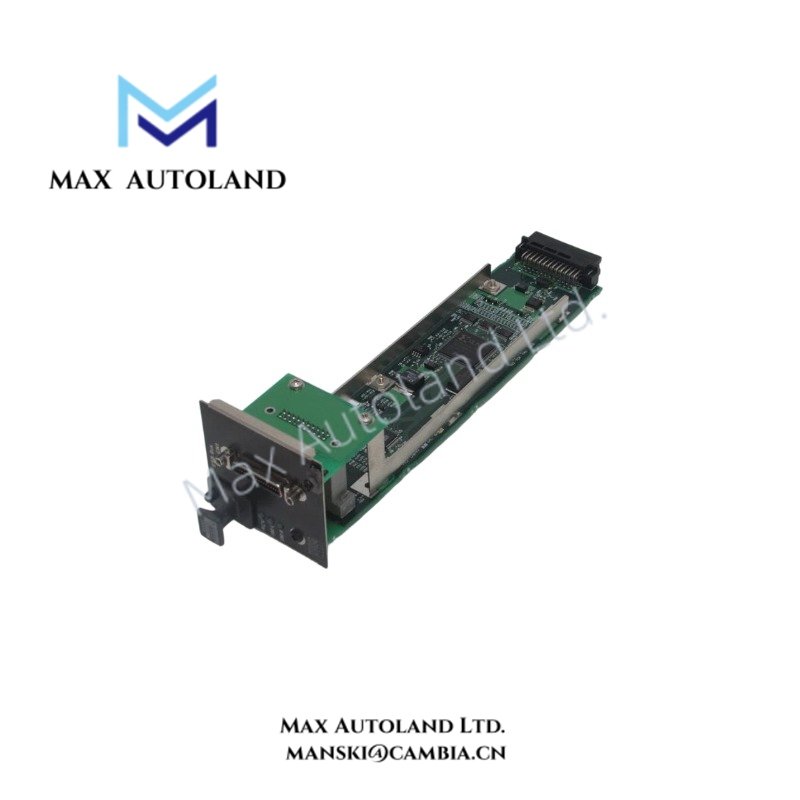

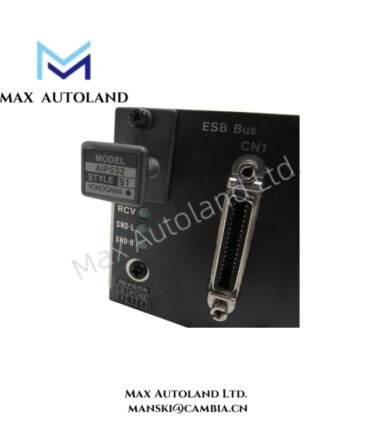

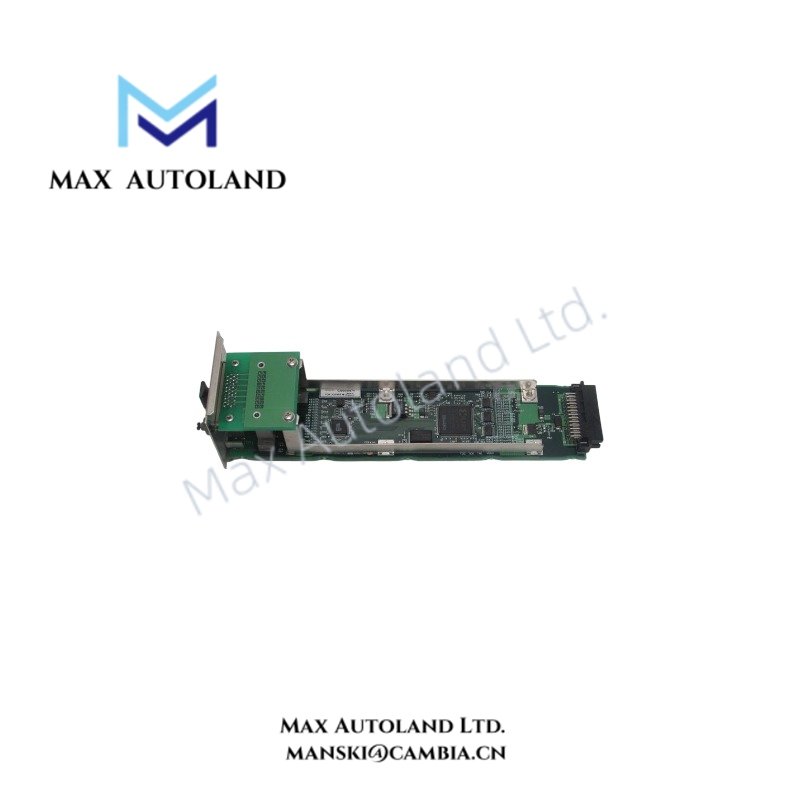

The Yokogawa AIP532S1, also cataloged as the AIP532 ESB Bus Coupler Module, operates as a dedicated hardware component for ESB bus communication within Yokogawa distributed control system networks. It provides electrical coupling between ESB field devices and controller communication structures.

Hardware Specifications

DCS Process Communication and Channel Isolation

The Yokogawa AIP532S1 supports ESB bus communication by providing electrical interface coupling between system modules. The module operates from a 24 VDC supply and maintains signal isolation up to 500 VDC. Therefore, it reduces electrical interference between connected control components.

The module design follows Yokogawa DCS hardware architecture requirements. Additionally, its low power consumption below 1.5 W allows installation within compact control system assemblies.

For Yokogawa process control platforms, communication modules commonly maintain stable signal transfer between controller layers and field I/O structures. The AIP532S1 applies channel isolation principles to minimize unwanted electrical coupling during industrial operation.

Frequently Asked Questions

Q: What is the primary function of the Yokogawa AIP532S1 module?
A: The AIP532S1 functions as an ESB Bus Coupler Module that provides electrical communication coupling between Yokogawa DCS system components.

Q: What power supply does the AIP532S1 require?
A: The module requires a 24 VDC supply, with a typical current draw of <= 60 mA and power consumption below 1.5 W.

Q: Does the AIP532S1 provide electrical isolation?
A: Yes. The module provides isolation up to 500 VDC between connected electrical interfaces according to the specified hardware characteristics.

Field Installation Guidelines

• Install the AIP532S1 according to the Yokogawa system cabinet layout and module mounting requirements.
• Verify the 24 VDC power supply polarity before connecting the module terminals.
• Route ESB communication wiring separately from high-voltage power cables to reduce electrical noise coupling.
• Connect cable shields according to the control system grounding specification.
• Confirm module seating and connector engagement before system power application.
• Inspect operating temperature conditions to ensure installation remains within the specified -20 deg C to +55 deg C range.
