Overview

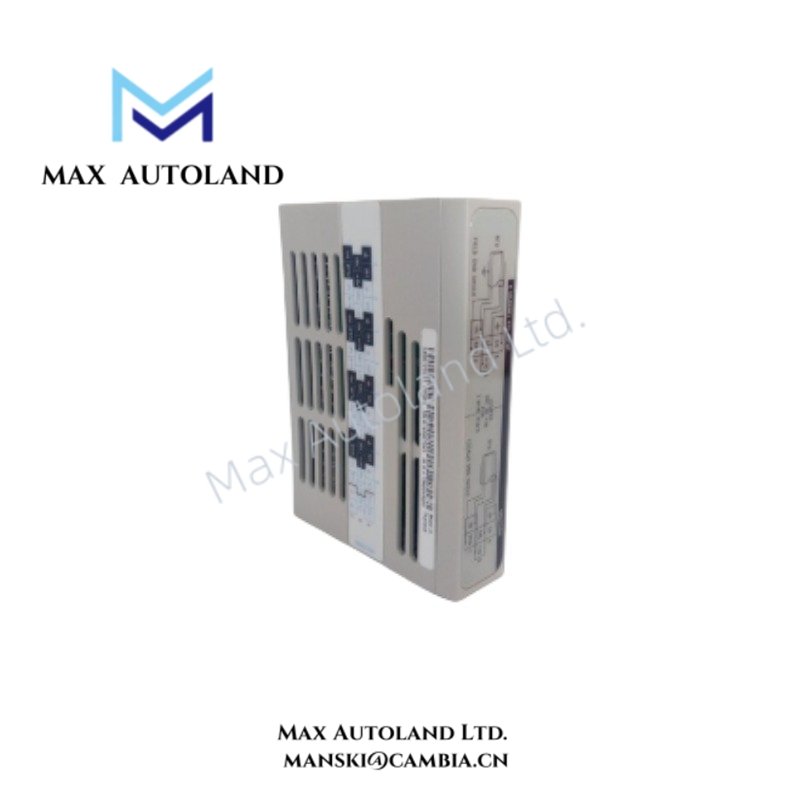

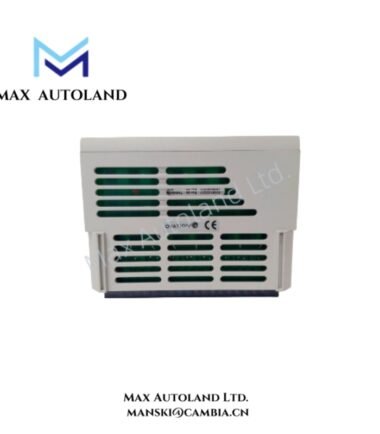

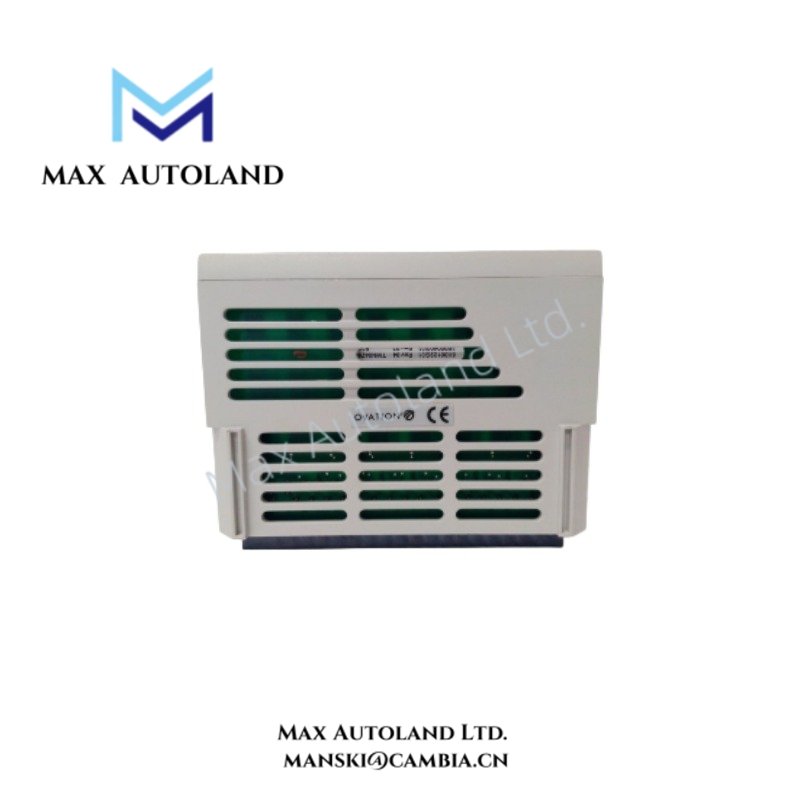

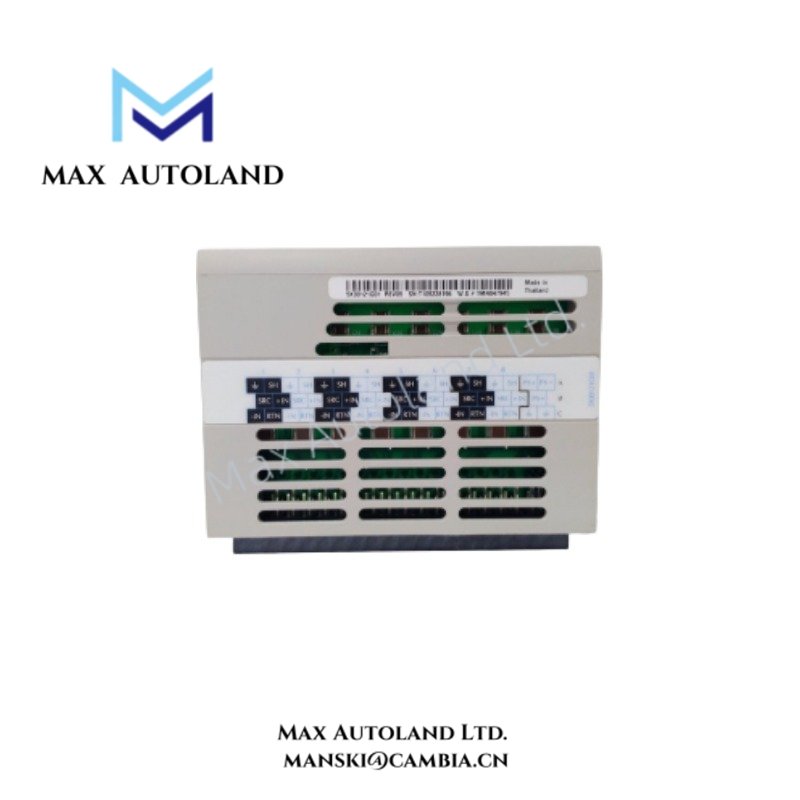

Configured for field signal interfacing in Emerson Ovation Distributed Control System installations, the Emerson 5X00846G01 (5X00846G01 I/O Module) provides direct physical and electrical execution between the control system and connected field circuits. The supplied information identifies possible Analog Output, HART, or Digital Input application roles; however, the exact channel function should be confirmed against the installed Ovation hardware configuration and system documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5X00846G01 |
| Brand | Emerson |
| Product Series | Emerson Ovation Distributed Control System (DCS) |
| Module Type | I/O Module; AO / HART or DI application dependent on system configuration |
| Weight | Approx. 0.9 kg |
| Dimensions | Approx. 177 mm x 101 mm x 25 mm |
| Operating Temp | -40 deg C to +70 deg C |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Enclosure Protection | IP20 |
| Mounting | Ovation I/O baseplate or rack-mounted chassis |
| Communication / Signal Protocol | HART-compatible where supported by the configured application |
| Core Performance Indicator | Field signal interfacing for Ovation DCS I/O applications |
Process Signal and HART Loop Interface
Where the installed 5X00846G01 configuration supports analog and HART operation, the module can participate in a 4-20 mA field loop with digital HART communication superimposed on the analog signal. The analog process value and HART communication share the same field circuit while the control system processes the applicable signal data.
The supplied information does not define the exact channel count, output range, loop power arrangement, or channel-to-channel isolation characteristics. Therefore, these parameters should be verified from the applicable Emerson Ovation module documentation before wiring or replacement.
Frequently Asked Questions
Q: Can the Emerson 5X00846G01 be identified as a fixed Analog Output or Digital Input module from the supplied information?
A: No. The supplied description lists Analog Output / HART and Digital Input applications depending on hardware configuration and system release. The exact function should be verified against the installed Ovation configuration.
Q: Is the module specified as hot-swappable?
A: The supplied technical information does not state a hot-swap capability. Follow the applicable Ovation maintenance procedure before inserting or removing the module.
Q: What is the specified power consumption of the module?
A: A specific power consumption value is not provided in the supplied data. Do not calculate the backplane or power supply loading from an assumed value.
Field Installation Guidelines
Install the Emerson 5X00846G01 only in the designated Ovation I/O baseplate or compatible rack position specified for the installed system configuration. Verify the module part number and required channel function before energizing the system.
Route field wiring separately from high-power and switching conductors where practical. For shielded analog or HART circuits, terminate cable shields according to the system grounding design and avoid creating unintended multiple shield ground paths.
Before module replacement, identify the connected field circuits and verify whether the system permits energized replacement for the specific hardware configuration. Check terminal assignments, polarity, field loop requirements, and configured channel types before returning the circuit to operation.
