Overview

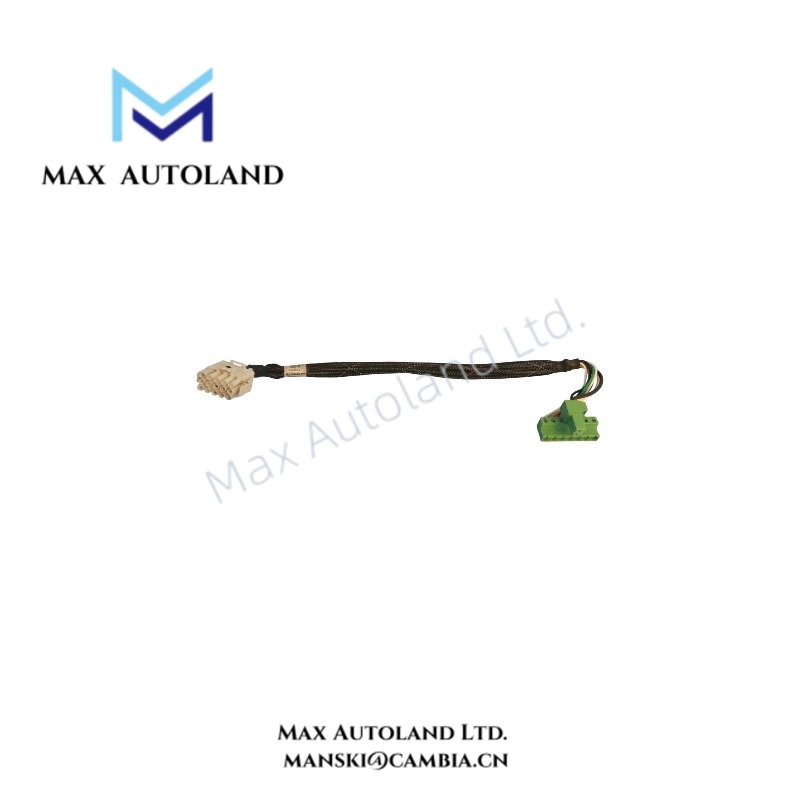

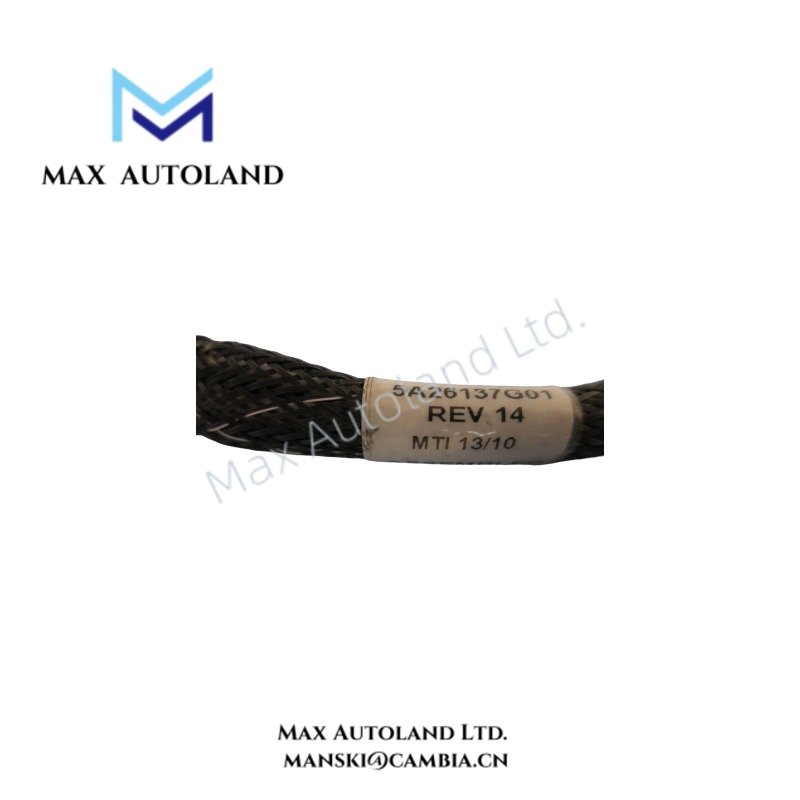

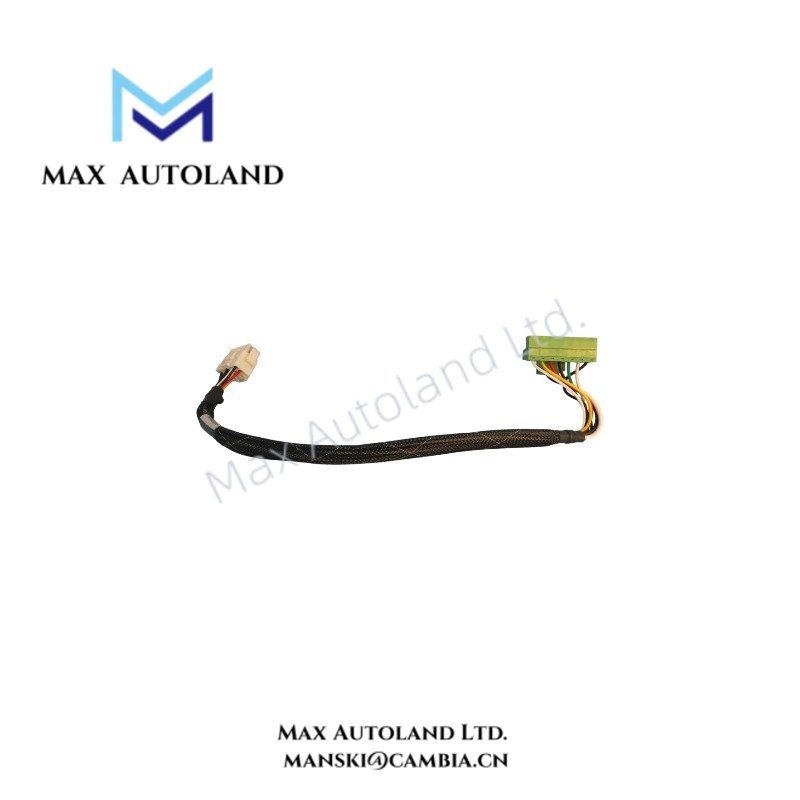

Configured for power interconnection and distribution in Emerson Ovation DCS cabinets, the Emerson 5A26137G01 (5A26137G01 Power Cable Assembly) provides direct physical and electrical execution. The harness connects designated power points through its cable and connector arrangement, supporting cabinet-level power routing. Its approximately 10-inch cable length and stated 7-pin male connector configuration define the available physical interface.
Suffix Breakdown & Model Matrix
The supplied documentation identifies 5A26137G01 as a fixed part number. No manufacturer-approved suffix breakdown or ordering-code matrix was provided, so no suffix interpretation is included.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5A26137G01 |
| Brand | Emerson |
| Series | Ovation |
| Product Type | Power Cable Assembly / Power Distribution Harness |
| System Compatibility | Emerson Ovation DCS |
| Connector Type | 7-pin male connector, hardware-dependent harness configuration |
| Conductor Material | Copper |
| Voltage Rating | Up to 480 VAC |
| Cable Length | Approximately 10 in (25.4 cm) |
| Weight | Approximately 0.11 kg to 0.15 kg |
| Dimensions | Cable length approximately 10 in; other dimensions not specified |
| Operating Temp | -20 deg C to +60 deg C |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Core Performance | Cabinet-level power interconnection and distribution |
DCS Power Interconnection Characteristics
The 5A26137G01 functions as a physical power-routing component rather than an active signal-processing module. Therefore, the supplied cable assembly does not provide 4-20 mA HART processing, FOUNDATION Fieldbus communication, Profibus PA communication, or cold junction compensation.
Within an Ovation cabinet assembly, conductor routing and connector engagement determine the electrical path between connected hardware. Installation must maintain conductor insulation integrity and prevent mechanical stress at the connector interface. Cable routing should also remain separated from circuits that could introduce unwanted electrical interference into adjacent control or instrumentation wiring.
Frequently Asked Questions
Q: Does the Emerson 5A26137G01 consume operating power?
A: No separate power consumption is specified. The part is identified as a passive power cable assembly used for electrical interconnection.
Q: Can the cable length be extended during installation?
A: Any modification or extension should follow the applicable Ovation cabinet wiring documentation. Unapproved changes can alter conductor routing, insulation requirements, and connector compatibility.
Q: Does the 5A26137G01 provide process signal or communication functions?
A: The supplied information identifies the unit as a power cable assembly and distribution harness. No active process signal conditioning or communication function is specified.
Field Installation Guidelines
Verify the complete 5A26137G01 part number before installation and confirm that the mating hardware matches the installed harness configuration.
Inspect the cable insulation, connector housing, and contacts for mechanical damage before connection. Route the harness without excessive bending, twisting, pinching, or tensile loading.
Maintain separation between power wiring and sensitive instrumentation or communication circuits according to the applicable cabinet wiring practice. Do not use the cable as a structural support or secure it in a manner that applies continuous stress to the connector.
Confirm conductor routing and protective grounding practices according to the Emerson Ovation system documentation and the electrical requirements of the installed cabinet.
