Overview

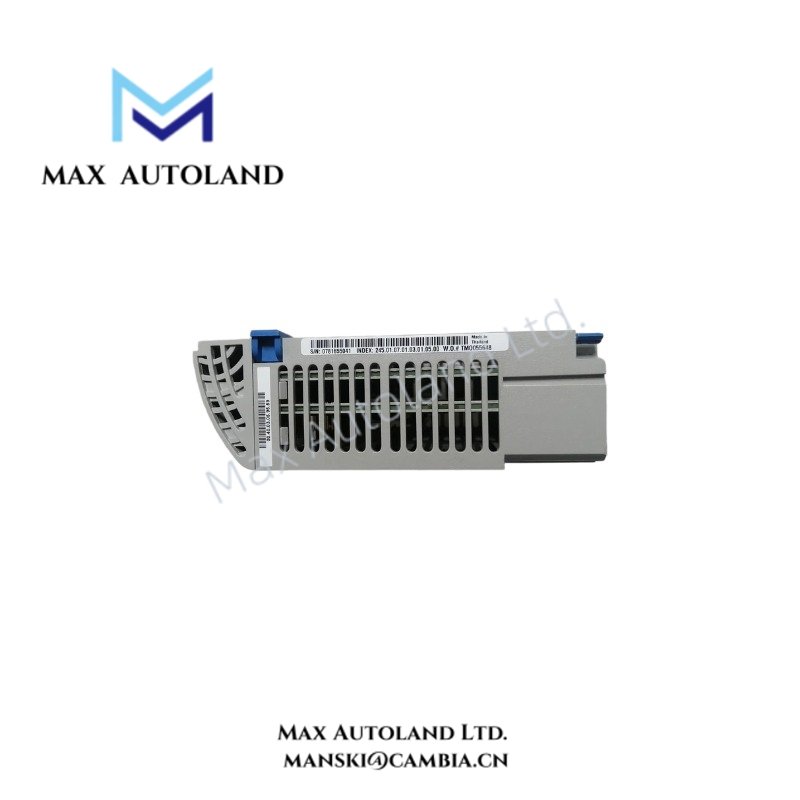

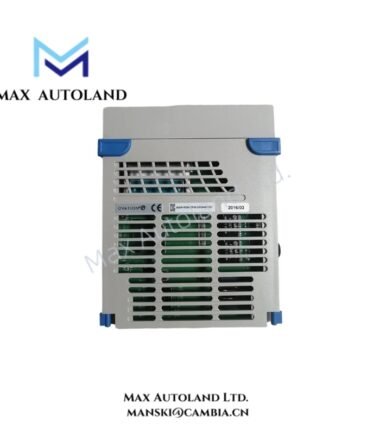

The Emerson 5X00481G01, also cataloged as the 5X00481G01 OCR1100 Processor Module, operates as a dedicated hardware component for processor-level control and data execution within the OCR1100 Controller architecture. The module uses a 24 VDC supply and performs controller processing through its Atom CPU module hardware. It interfaces with the controller assembly through its designated hardware connection and operates within the specified power and isolation limits.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5X00481G01 |
| Product Type | OCR1100 Processor Module |
| Product Parameters | OCR 1100 PROCESSOR MODULE |
| Processor | Atom CPU Module |
| Controller Platform | OCR1100 Controller |
| Brand | Emerson |
| Origin | USA |
| Weight | 0.36 kg |
| Dimensions | 12.5 x 5.2 x 16.8 cm |
| Supply Voltage | 24 VDC |
| Power Consumption | < 25 W |
| Current Draw | <= 1 A @ 24 VDC |
| Inrush Current | < 5 A for 1 ms |
| Isolation | 500 VDC |
| Tariff Code | 8537101190 |
| Place of Shipment | Xiamen, China |
| Operating Temp | Not specified |
Process Control and DCS Integration
The 5X00481G01 operates as a processor-level hardware element rather than a direct analog measurement channel. Therefore, its primary electrical requirements concern stable 24 VDC power delivery, controlled current loading, inrush behavior, and isolation between applicable electrical domains.
Within process control architectures, field instruments commonly communicate through signal interfaces supporting methods such as 4-20 mA loops, HART communication, FOUNDATION Fieldbus, or other controller-connected I/O paths. The processor module executes control and data functions after associated interface hardware acquires and transfers the field information. The specified 500 VDC isolation rating provides an electrical separation characteristic for the module hardware.
Frequently Asked Questions
Q: What supply voltage is specified for the Emerson 5X00481G01?
A: The module requires a 24 VDC supply. Its specified current draw is <= 1 A at 24 VDC, with power consumption below 25 W.
Q: What is the specified inrush characteristic?
A: The input inrush is specified as less than 5 A for 1 ms. The power source and associated protection hardware should accommodate this transient during energization.
Q: Does the available specification confirm hot-swap or firmware compatibility?
A: No. The supplied technical data does not define hot-swap capability, firmware revision requirements, or compatibility with specific controller software versions.
Field Installation Guidelines
Verify the 24 VDC supply polarity and available power capacity before installing the module. Isolate system power according to the applicable controller maintenance procedure before inserting or removing hardware.
Install the 5X00481G01 only in the designated OCR1100 Controller hardware position. Inspect the module connector and mating interface for contamination, bent contacts, or mechanical damage before installation.
Route power and communication wiring according to the controller cabinet design. Keep high-energy switching conductors separated from low-level control and communication circuits where applicable. Connect cable shields using the system grounding arrangement specified for the installation.
After installation, verify correct mechanical seating, supply voltage, and controller diagnostic status. Confirm the applicable firmware and system configuration requirements from the controller documentation before placing the processor module into operation.
