Overview

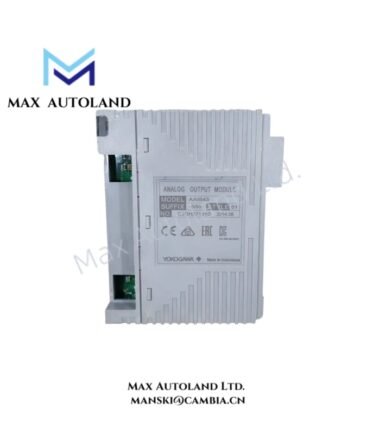

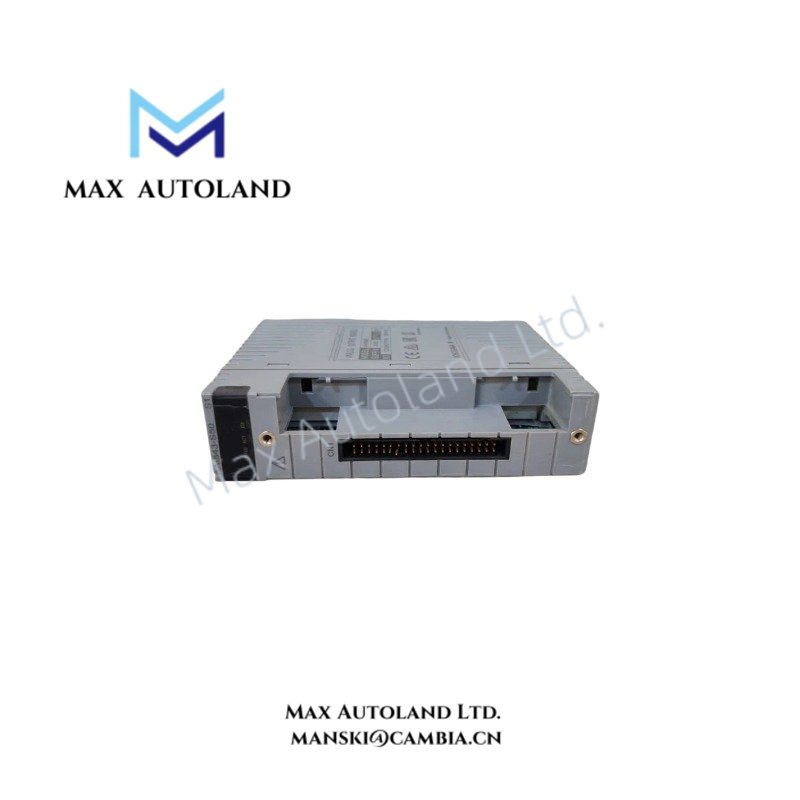

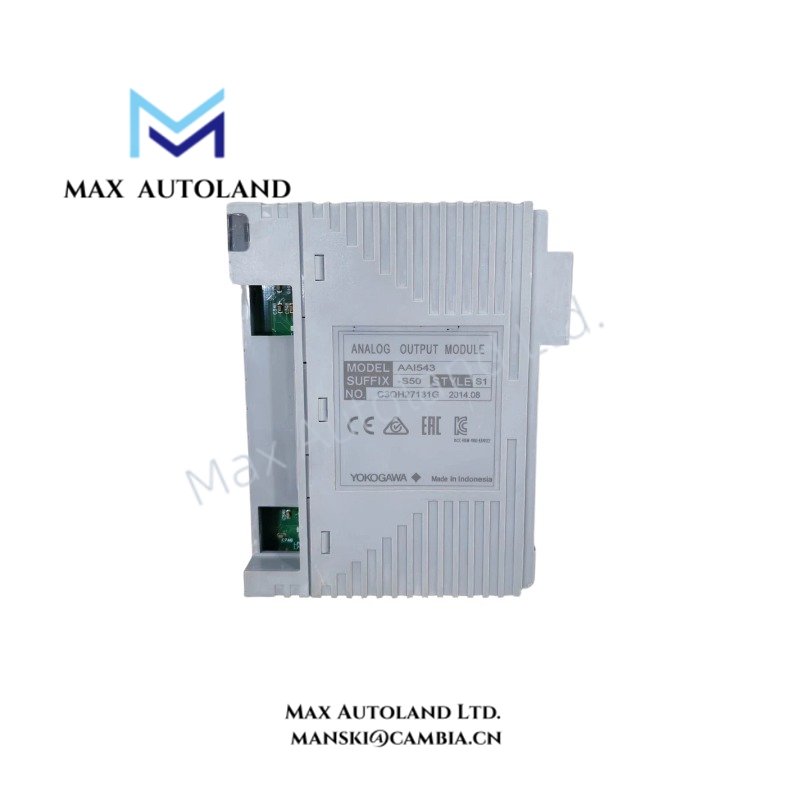

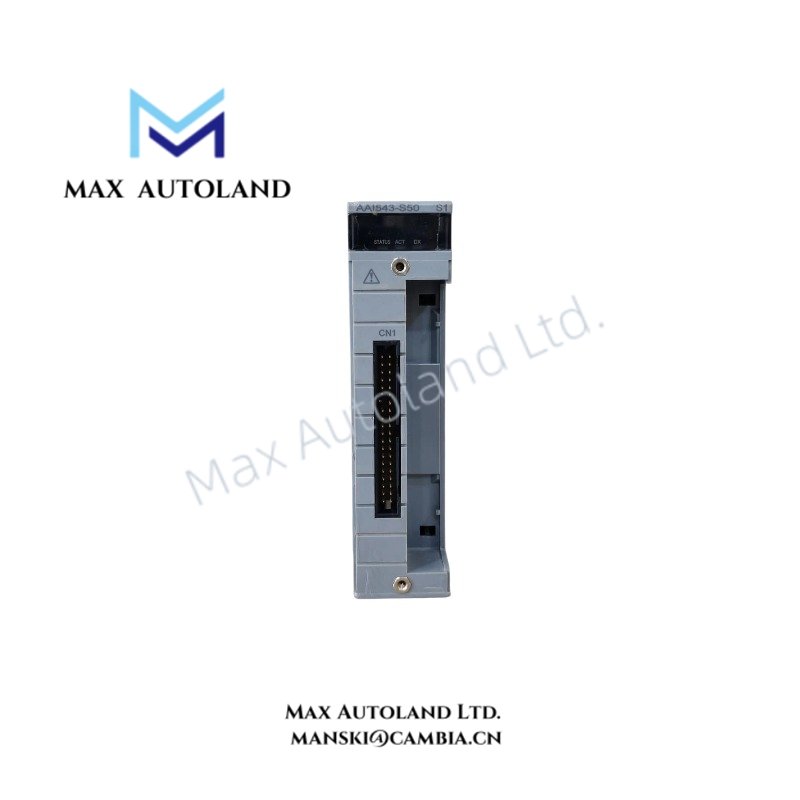

Configured for analog current signal execution in Yokogawa CENTUM VP and CS 3000 DCS platforms, the Yokogawa AAI543-S50/A4S00 (AAI543 Analog Output Module) provides direct physical and electrical output conversion from digital control data to 4-20 mA field signals.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-S50/A4S00 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | Isolated Analog Output Module |
| Output Channels | 16 channels |
| Output Signal | 4-20 mA DC |
| Output Type | Isolated current output |
| Allowable Load Resistance | 0 to 750 ohm |
| Accuracy | +/- 48 uA |
| Data Update Period | 10 ms |
| Temperature Drift | +/- 16 uA per 10 deg C change |
| Circuit Open Detection | Less than 0.65 mA |
| Power Consumption | 230 mA at 5 VDC; 540 mA at 24 VDC |
| Withstanding Voltage | 1500 VAC between output and system for 1 minute |
| HART Communication | Not supported |
| Redundancy Configuration | Dual-redundant configuration supported |
| External Connection | Pressure Clamp Terminal Block using ATA4S-00 |
| Operating Temp | 0 deg C to +60 deg C |
| Weight | Approx. 0.4 kg |
| Explosion Protection | Standard non-explosion-protected type |
DCS Analog Output Signal Management
The Yokogawa AAI543-S50/A4S00 converts internal DCS digital output commands into isolated 4-20 mA current signals for connected field devices. The module maintains 16 independent output channels and applies channel-to-channel isolation to reduce electrical interference between field loops.
Furthermore, the module supports dual-redundant operation within Yokogawa control architectures. The redundant configuration allows the system to perform automatic switchover according to the configured standard switch-over operation.
The module does not provide HART communication capability. Therefore, it operates as a standard analog output interface for conventional current-controlled devices.
Frequently Asked Questions
Q: Does the AAI543-S50/A4S00 support HART communication?
A: No. The AAI543-S50/A4S00 is a standard analog output module that provides 4-20 mA DC signals without HART protocol communication.
Q: How many analog output channels does the module provide?
A: The module provides 16 isolated analog output channels, with each channel producing a 4-20 mA DC current signal.
Q: Can the module operate in a redundant configuration?
A: Yes. The AAI543-S50/A4S00 supports dual-redundant configurations with automatic switchover functionality in compatible Yokogawa DCS systems.
Field Installation Guidelines
Install the AAI543-S50/A4S00 module in the specified Yokogawa I/O node or system base unit according to the applicable CENTUM VP or CS 3000 installation documentation.
Use shielded signal cables for analog current loops and connect cable shields according to the site grounding design. Keep analog output wiring separated from high-voltage power cables and high-current switching circuits to minimize induced noise.
Verify the terminal block connection before commissioning. Confirm that field devices accept 4-20 mA current input signals and that the connected load resistance remains within the specified module range.
When applying redundant configurations, verify the module arrangement, wiring allocation, and system configuration parameters before operation.
