Overview

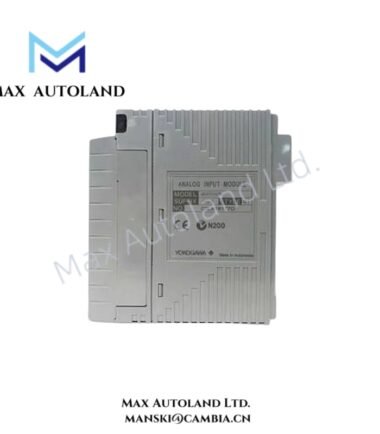

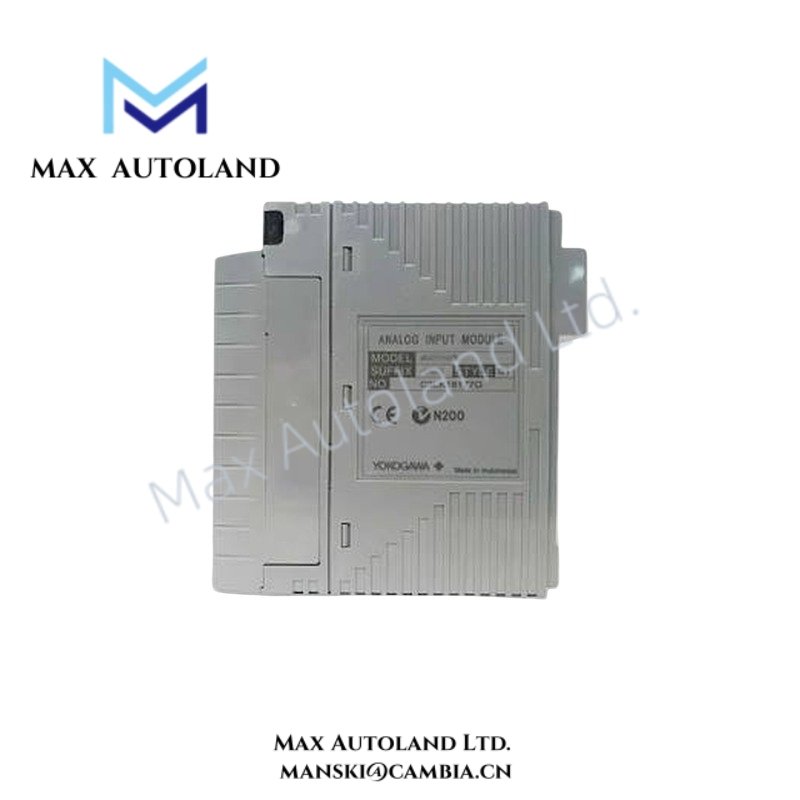

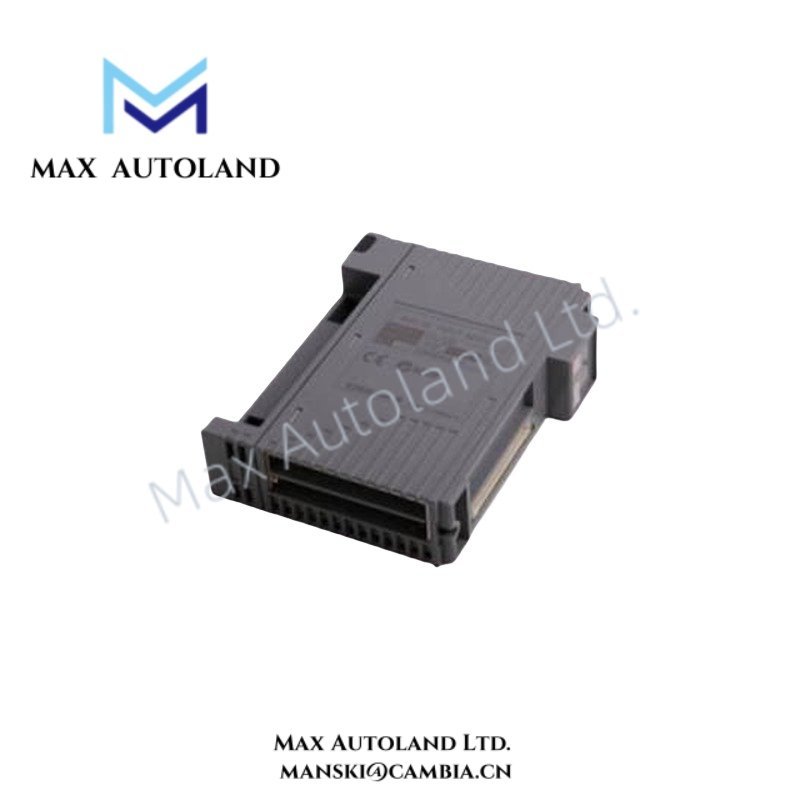

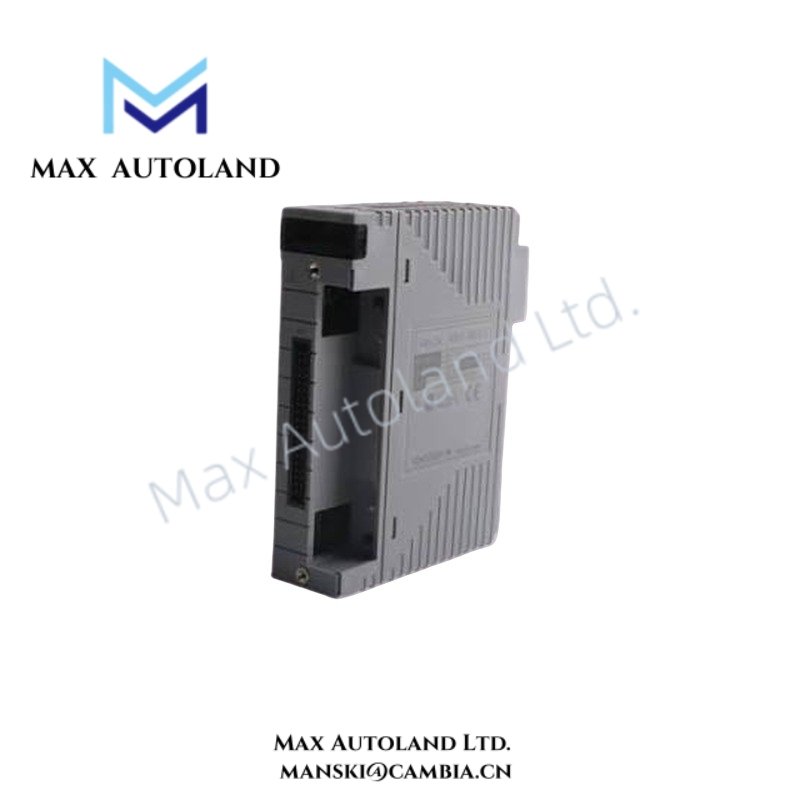

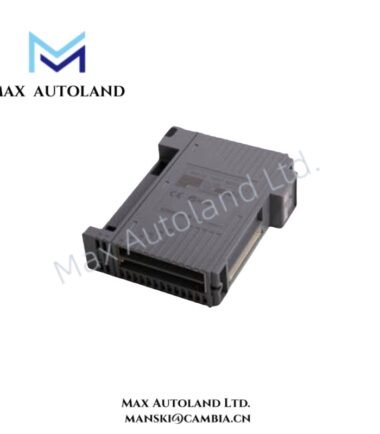

The Yokogawa AAI135-H50/13S00, also cataloged as the AAI135 Analog Input Module, performs analog signal conversion for ESB bus node units and field control units within Yokogawa CENTUM VP FIO systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAI135-H50/13S00 |
| Brand | Yokogawa Electric Corporation |
| Product Type | Analog Input Module |
| System Compatibility | CENTUM VP FIO system, ESB bus node units |
| Supported Node Units | ANB10S, ANB10D, ANB11S, ANB11D |
| Supported Field Control Units | AFV30S, AFV30D, AFV40S, AFV40D, AFV10S, AFV10D |
| Input Function | Analog signal input and conversion |
| Input Channels | 16 channels |
| Input Signal Type | Field analog signals |
| Signal Conversion | Field analog input to internal control system data |
| Isolation Type | Channel isolation |
| Communication Interface | ESB bus interface |
| Origin | Japan |
Process Control Signal Interface Features
The Yokogawa AAI135-H50/13S00 receives field analog signals and converts them into digital process data for Yokogawa FIO architectures. The module supports direct installation in ESB bus node configurations and optical ESB bus node configurations.
Furthermore, the module design follows Yokogawa process control I/O architecture requirements, including channel-to-channel isolation for separating field input circuits. Therefore, the module reduces signal interference between independent analog measurement loops.
The module architecture supports process instrumentation signals commonly applied in DCS environments. In addition, Yokogawa analog input modules can integrate with transmitter loops using standard process signal interfaces such as 4-20 mA current transmission depending on system configuration.
Frequently Asked Questions
Q: Which Yokogawa systems support the AAI135-H50/13S00 module?
A: The module installs in ESB bus node units ANB10S, ANB10D, optical ESB bus node units ANB11S, ANB11D, and FIO field control units.
Q: What is the primary function of the AAI135-H50/13S00?
A: The module converts field analog input signals into process data used by Yokogawa control system hardware.
Q: Does the module require special installation considerations?
A: The module requires correct ESB bus connection, approved rack installation, and proper field signal wiring practices according to Yokogawa hardware manuals.
Field Installation Guidelines
- Install the AAI135-H50/13S00 only in compatible Yokogawa ESB bus node units or FIO field control units.
- Verify module seating position before applying system power.
- Connect field analog signal wiring according to Yokogawa terminal assignment documentation.
- Separate analog signal cables from high-voltage power cables to reduce electromagnetic interference.
- Apply shield grounding practices according to plant electrical standards.
- Confirm ESB bus communication status after module installation.
- Check field loop polarity and signal continuity before commissioning.
