Overview

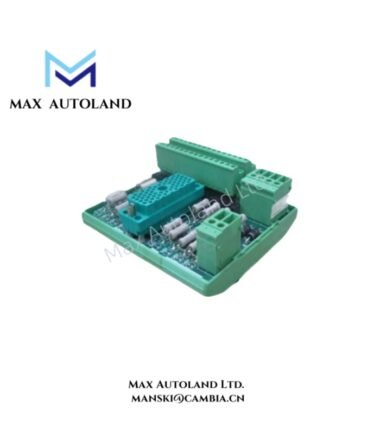

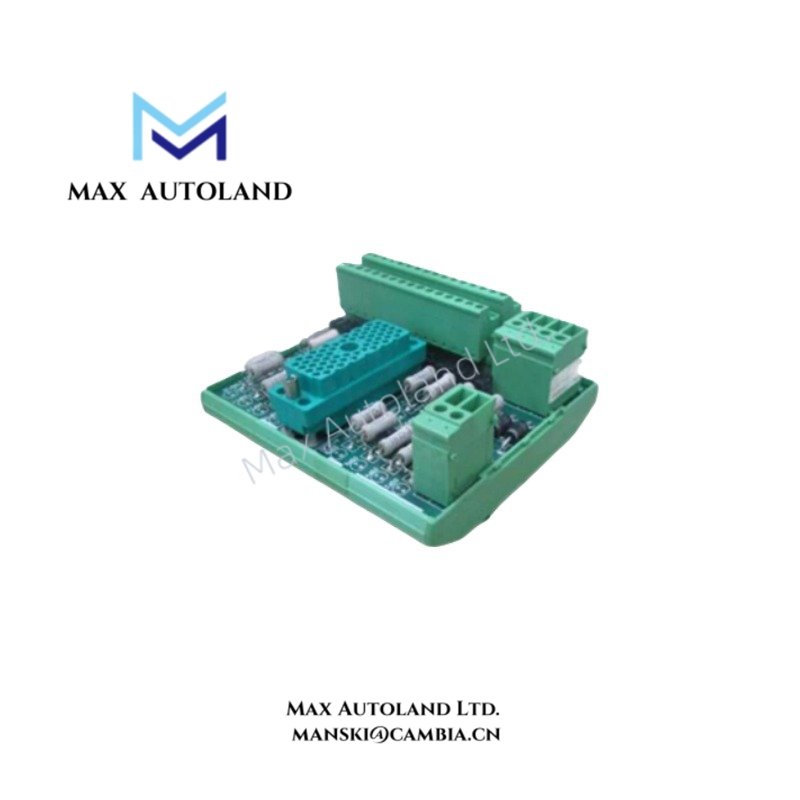

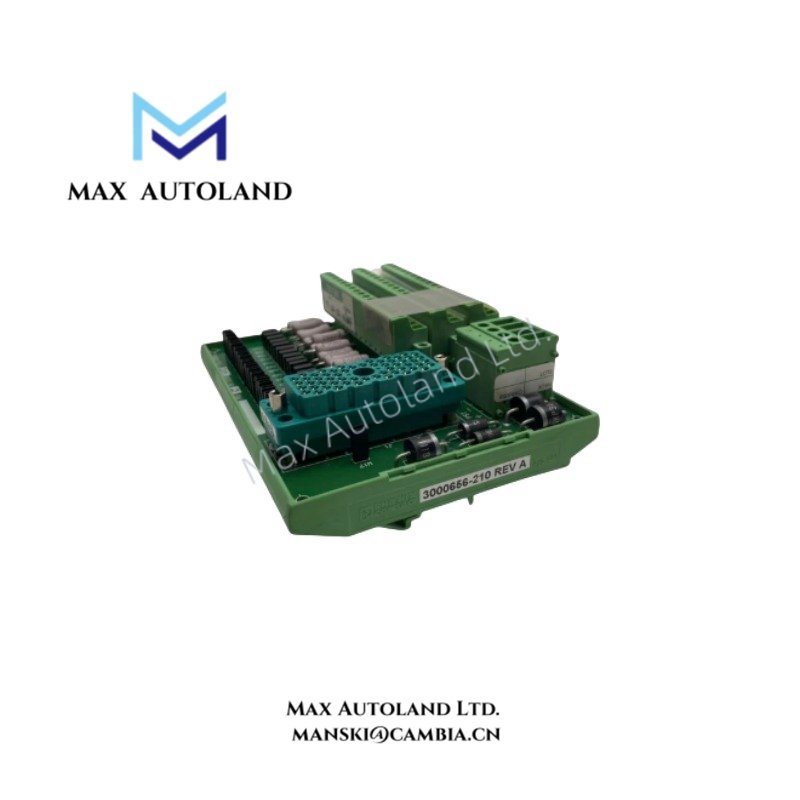

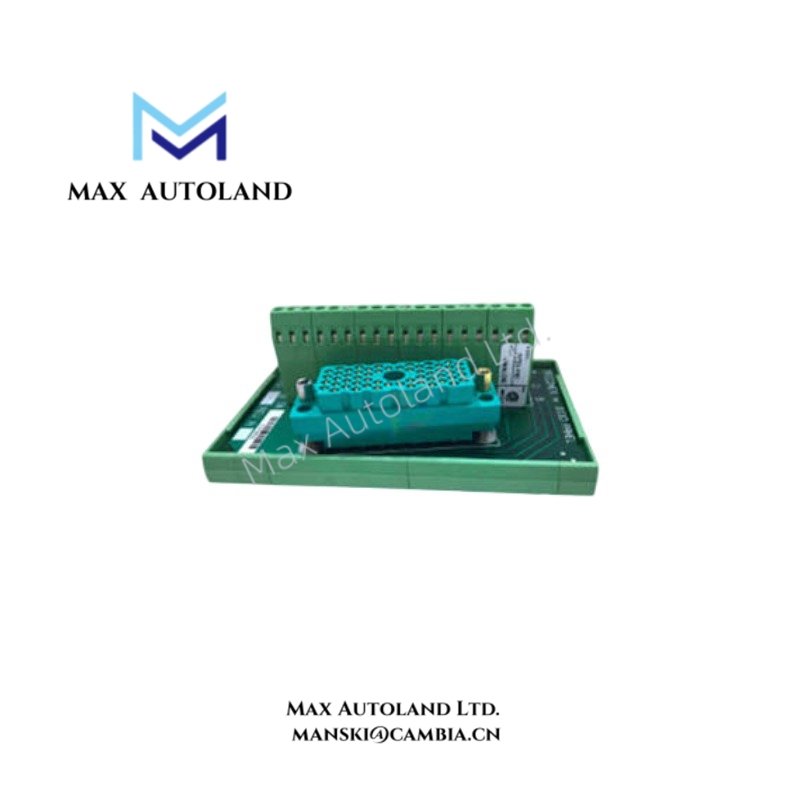

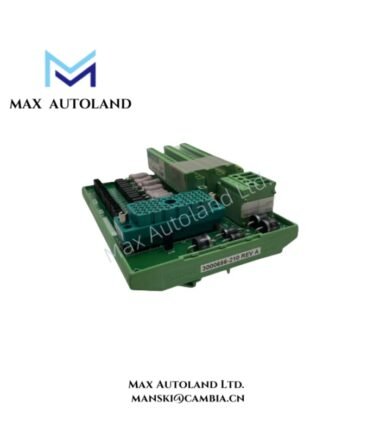

Configured for pulse signal termination in Triconex safety instrumented systems, the TRICONEX 9753-110 1057680000 (9753-110 Pulse Input Termination Panel) provides direct physical connection between field pulse wiring and Triconex pulse input modules.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 9753-110 1057680000 |
| Brand | TRICONEX |
| Product Type | Pulse Input Termination Panel |
| System Compatibility | Tricon v9 / v10 Safety System |
| Origin | USA |
| Weight | Approx. 1.5 kg |
| Dimensions | Not specified |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temperature | -40 deg C to +85 deg C |
| Power Consumption | Passive termination device, no external power required |
| Panel Type | Basic termination panel |
| Input Compatibility | Pulse Input Modules and Pulse Totalizer Input Modules |
| Pulse Input Channels | 8 differential input points |
| Pulse Totalizer Input Channels | 16 field input terminals |
| Input Connection | IN+ and IN- differential terminals |
| Mounting Type | Triconex system cabinet or field termination installation |
| Signal Processing | No internal signal conversion or processing |
Triconex TMR Safety System Interface Characteristics
The TRICONEX 9753-110 1057680000 operates as a passive field termination interface within Triconex safety system architectures. Moreover, it maintains direct electrical routing between external pulse devices and Triconex input modules without modifying the incoming signal characteristics.
The panel supports field connections for pulse measurement applications and maintains separation between field wiring and controller hardware. Therefore, technicians can verify signal paths through terminal assignments during system commissioning and maintenance.
Triconex systems use triple modular redundancy (TMR) 2oo3 architecture for safety execution at the controller level. The 9753-110 termination panel does not execute logic processing but provides the physical termination point required for pulse input signal integration.
Frequently Asked Questions
Q: Does the TRICONEX 9753-110 1057680000 perform pulse signal processing?
A: No. The panel is a passive termination device. It provides field wiring connection points and routes pulse input signals to compatible Triconex input modules.
Q: What type of pulse signals can be connected to the 9753-110 panel?
A: The panel supports differential pulse input connections through IN+ and IN- terminals for compatible Triconex pulse input and pulse totalizer modules.
Q: Does the 9753-110 require an external power supply?
A: No. The termination panel does not require external power because it does not contain active signal processing circuits.
Field Installation Guidelines
- Install the termination panel inside an approved Triconex cabinet or designated field termination enclosure.
- Verify terminal identification before connecting pulse input field cables.
- Use shielded cables for pulse signal wiring where required by the installation design.
- Connect cable shields according to the system grounding specification to reduce electrical interference.
- Separate pulse signal wiring from high-voltage power cables to minimize coupling noise.
- Confirm module compatibility before replacing existing termination hardware.
- Perform continuity checks and loop verification after completing field wiring.
