Overview

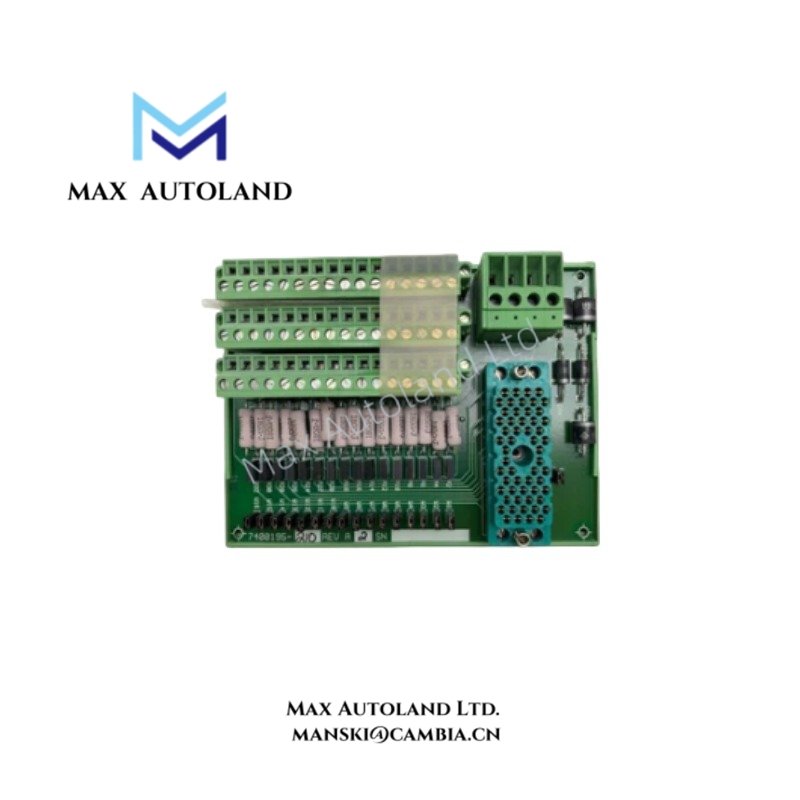

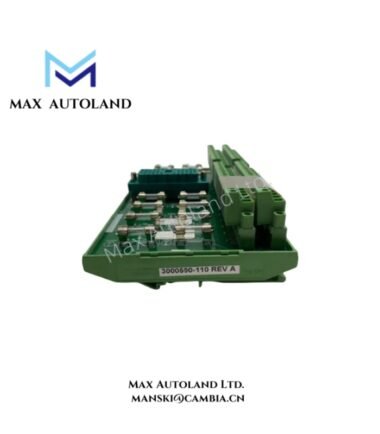

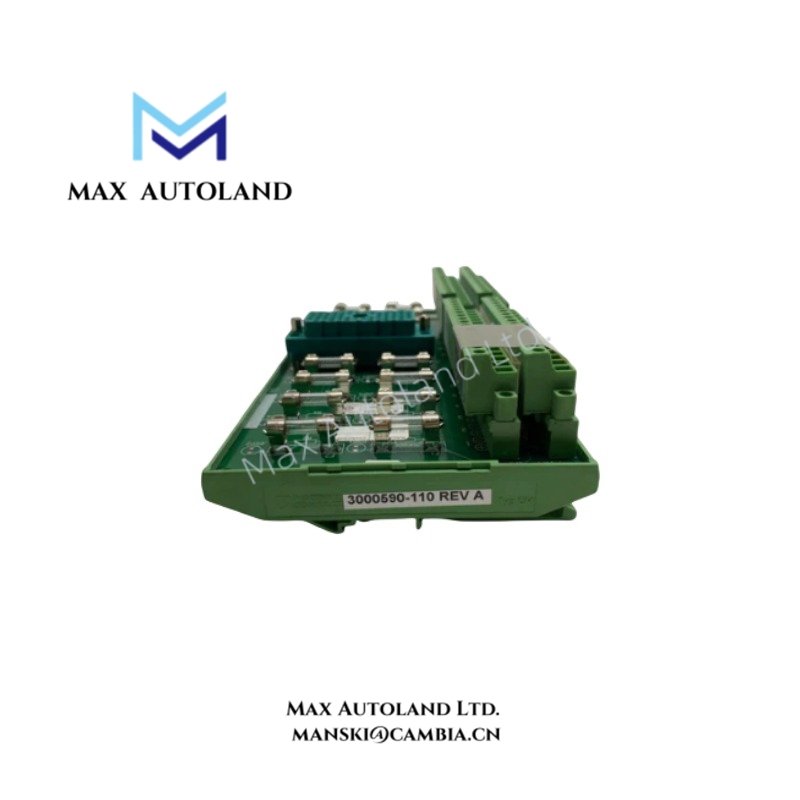

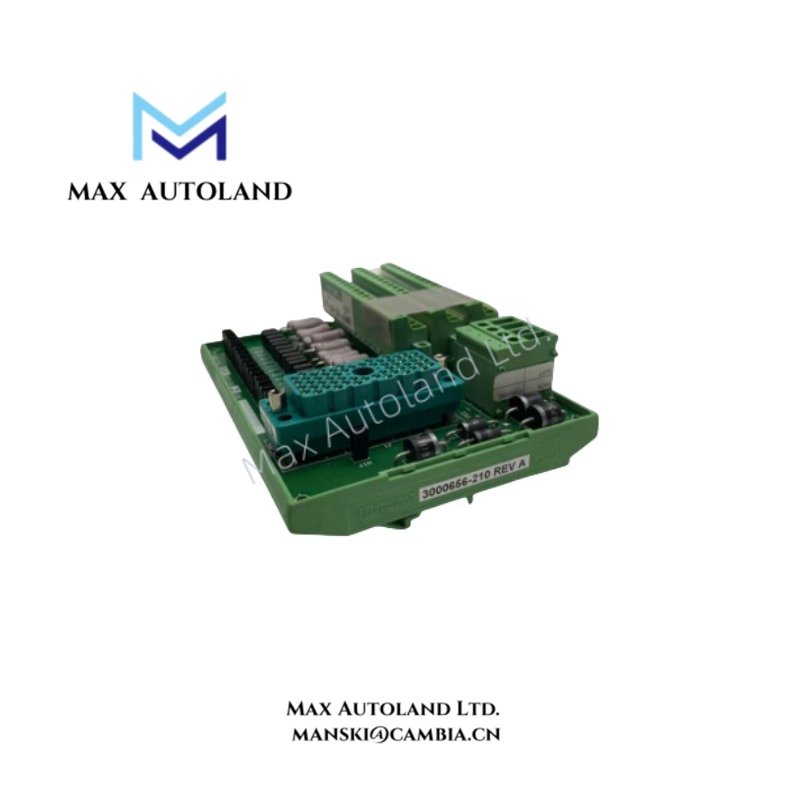

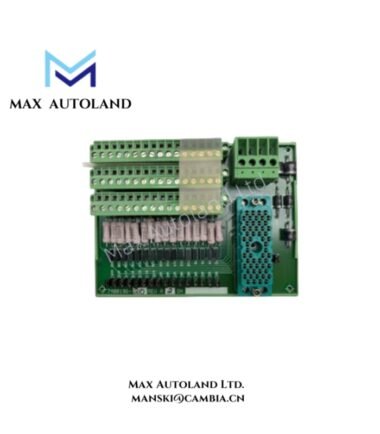

Configured for current input signal termination and field wiring connection in Triconex control system platforms, the Invensys 9771-210 7760059032 (9771-210 Current Input Terminal Board) provides direct physical and electrical execution between field current loops and system input channels.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 9771-210 |
| Full Part Number | 7760059032 |
| Brand | Invensys |
| Product Type | Current Input Terminal Board |
| Origin | USA |
| Weight | 2.42 kg |
| Dimensions | Estimated shipping size: 2.2 x 40.6 x 39.8 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Power Consumption | Not specified in available data |
| Panel Type | Current input, user-configurable |
| Number of Points | 16 |
| Voltage Rating | Up to 300 VAC/DC |
| Current Rating | Up to 10 A per channel |
| Isolation Voltage | 1500 VAC between field and system |
| Contact Resistance | Less than 50 mOhm |
| Wire Size | 12-24 AWG |
| Dielectric Strength | 2000 VAC for 1 minute |
| Housing Material | Flame-retardant plastic housing |
| Vibration Resistance | 5-500 Hz, 5 G |
Current Input Signal Termination and Isolation Characteristics
The 9771-210 terminal board provides 16 configurable current input points for field signal connection. Moreover, the board supports electrical separation between field circuits and system circuits with a specified isolation voltage of 1500 VAC.
The terminal design accepts 12-24 AWG wiring and maintains a contact resistance below 50 mOhm. In addition, the flame-retardant housing supports industrial installation requirements where controlled electrical insulation and mechanical protection are required.
Frequently Asked Questions
Q: How many current input channels does the Invensys 9771-210 support?
A: The terminal board supports 16 current input points with user-configurable current input connections.
Q: What field signal electrical limits does the 9771-210 support?
A: The board supports up to 300 VAC/DC voltage rating and up to 10 A current rating per channel.
Q: Does the terminal board provide isolation between field wiring and the control system?
A: Yes. The specified isolation voltage between field and system circuits is 1500 VAC.
Field Installation Guidelines
- Verify field wiring requirements before connecting current input circuits to the terminal board.
- Use compatible 12-24 AWG conductors according to the terminal connection requirements.
- Separate signal wiring from high-current power conductors to reduce electrical interference.
- Connect cable shields according to the system grounding design and site electrical standards.
- Confirm insulation conditions before applying field voltage to the connected channels.
- Install the terminal board in an enclosure that maintains the specified operating temperature range.
