Overview

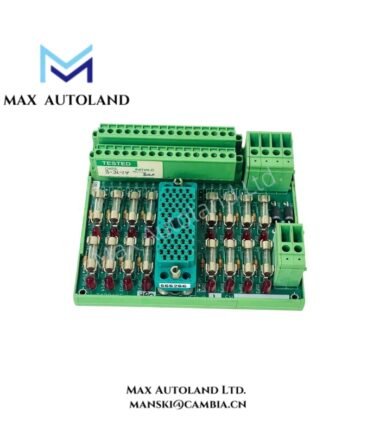

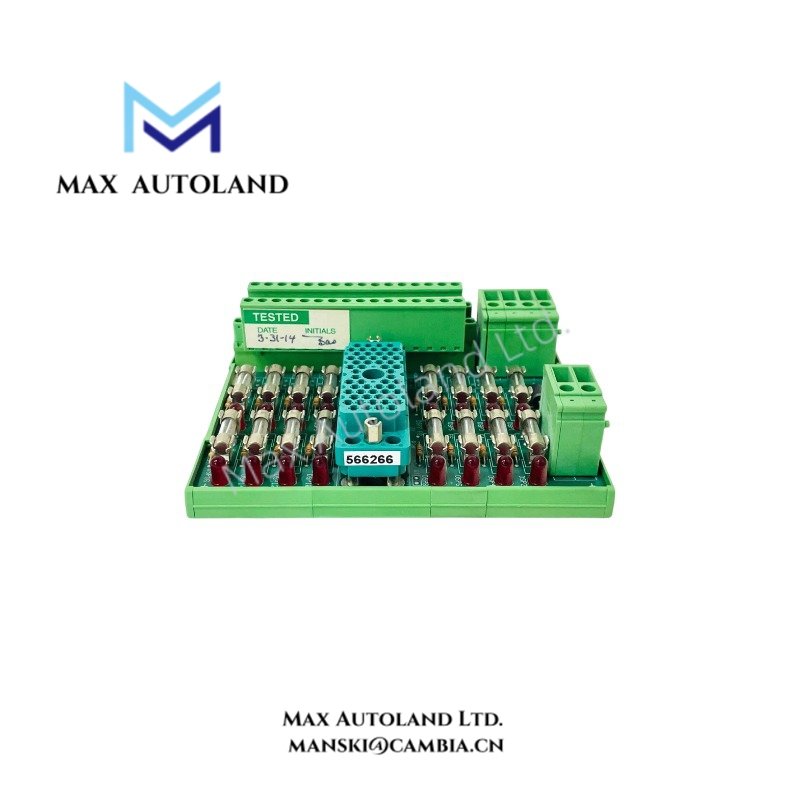

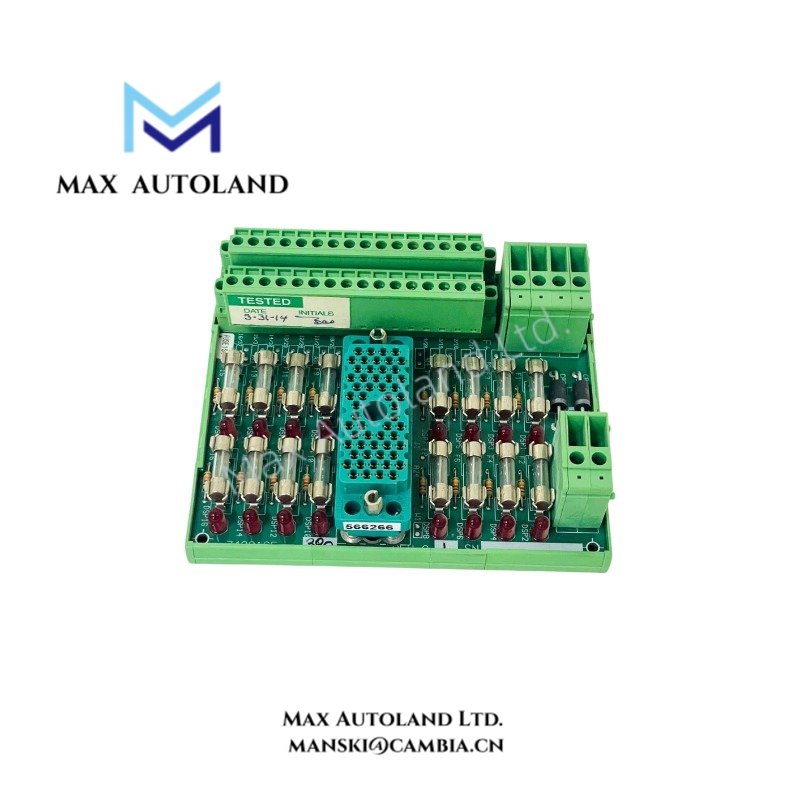

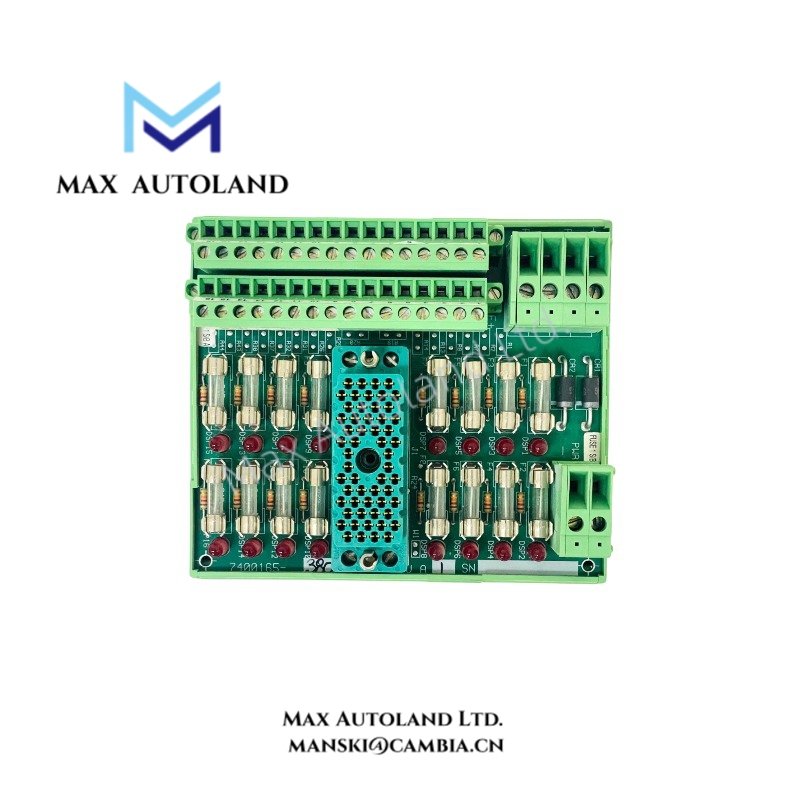

Configured for managing field signal wiring terminations in Triconex safety instrumented systems, the Triconex 7400165-380 (9563-810NJ Terminal Board) provides direct physical and electrical execution.
Suffix Breakdown & Model Matrix
| Suffix Identifier | Designation | Technical Function |
|---|---|---|
| 7400165-380 | Base Hardware Assembly | Primary terminal board variant for field termination routing |
| 9563-810NJ | Alternative Catalog ID | Manufacturer-specific tracking and manufacturing lot code designation |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 7400165-380 |
| Brand | Triconex (Schneider Electric) |
| Origin | Industrial Automation Manufacturing |
| Weight | 1.2 kg |
| Dimensions | Standard industrial terminal board chassis footprint |
| Operating Temp | -20 deg C to +60 deg C |
| Power Consumption | Passive pass-through (0 Watts active draw) |
| Alternative ID | 9563-810NJ |
| Product Type | Terminal Board |
| Voltage Rating | 30 VDC Max |
| Maximum Current | 10 A |
Galvanic Isolation and Safety Integrity
Engineered to support SIL3-rated architectures, the Triconex 7400165-380 operates alongside safety instrumented systems while maintaining rigorous galvanic isolation barriers. Furthermore, this terminal board prevents ground loops and electrical noise propagation from external field loops into core logic solvers. Consequently, the hardware preserves the fault tolerance required for fail-safe state execution across industrial safety loops.
Frequently Asked Questions
Q: Does the Triconex 7400165-380 terminal board support live replacement under power?
A: Yes, technicians can replace external field wiring blocks or interconnected cables, provided they follow site safety protocols regarding active 30 VDC circuits.
Q: How does the board handle signal routing from field devices to the I/O modules?
A: The internal traces route incoming field signals directly to pre-engineered system cable connectors without active signal conditioning.
Field Installation Guidelines
- Verify that the cabinet mounting space matches the board dimensions prior to physical assembly.
- Secure the terminal board firmly to the DIN rail or backplate using appropriate mounting hardware.
- Ensure all field wiring is correctly stripped and torqued into the terminal blocks to maintain electrical continuity.
- Confirm that operating voltages remain strictly within the 30 VDC maximum rating before system energization.
