Overview

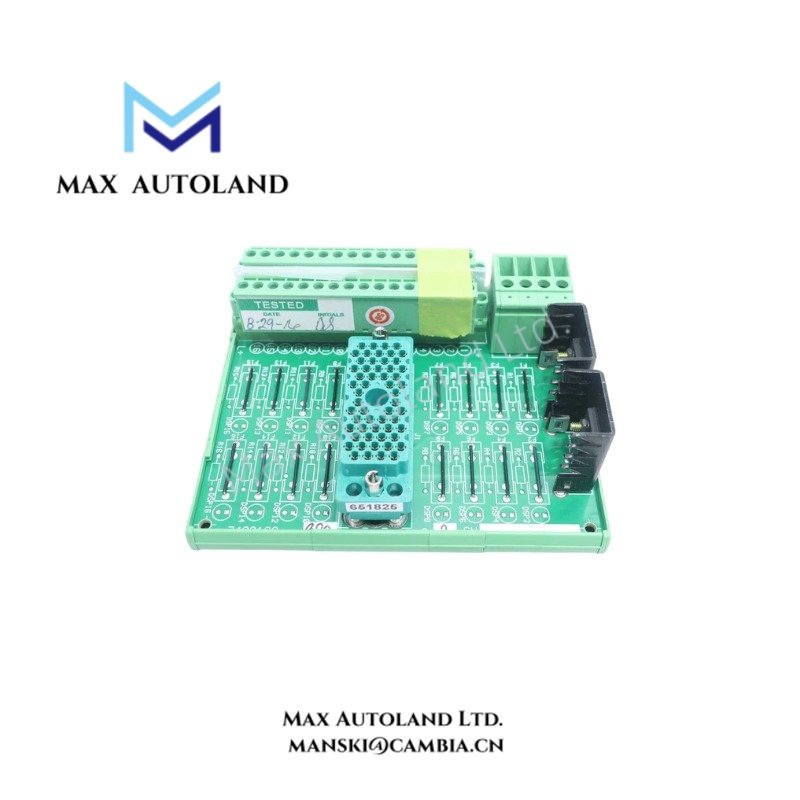

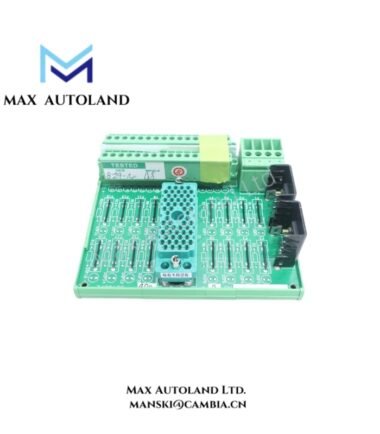

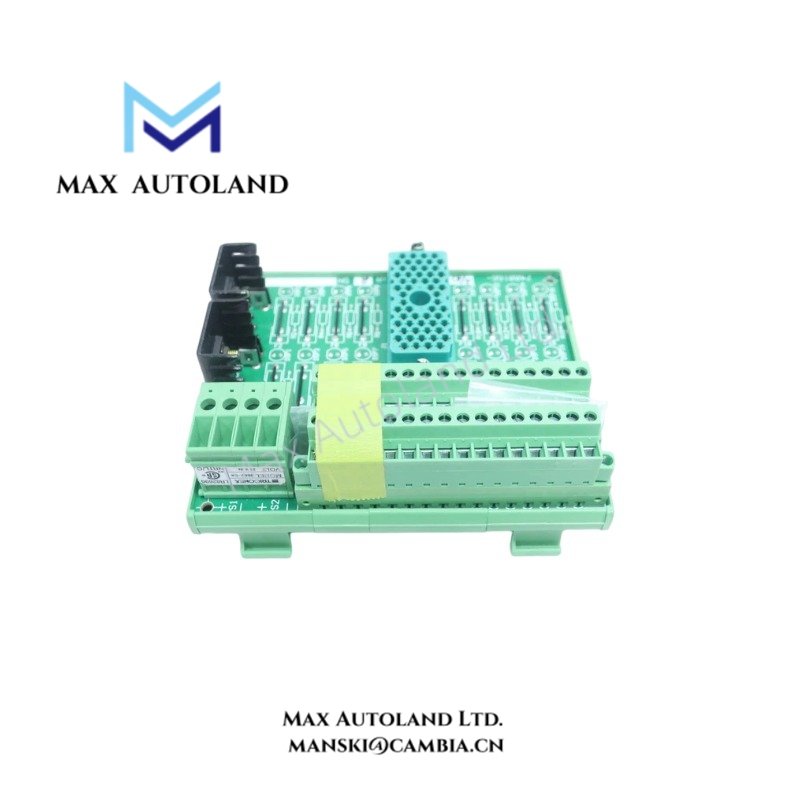

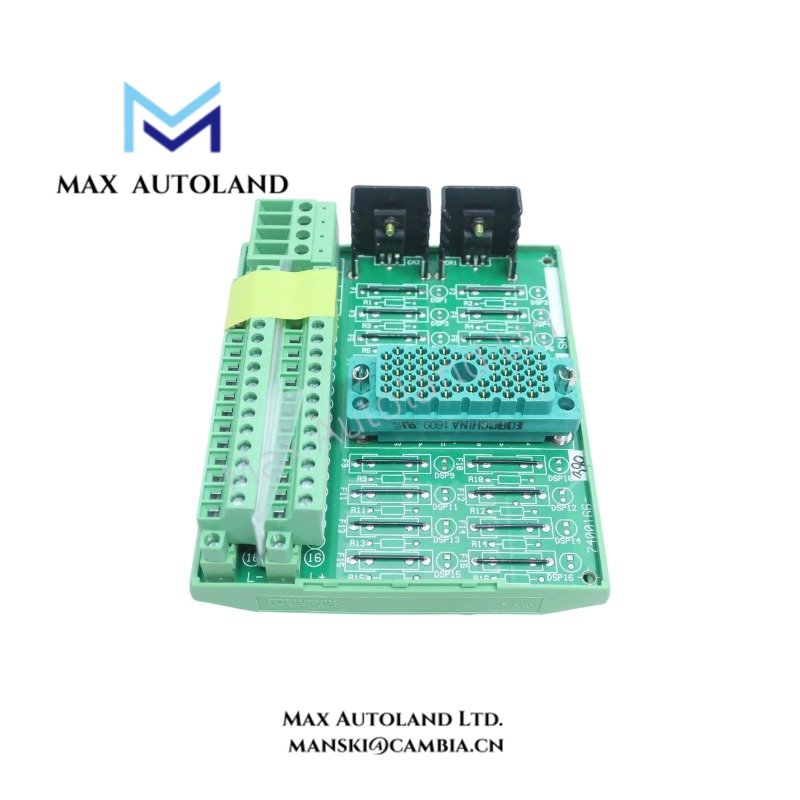

Configured for managing secure cable interconnections in Triconex safety instrumented systems, the Triconex 7400166-390, also cataloged as the 9662-610NJ Field Termination Panel, provides direct physical and electrical execution.
Suffix Breakdown & Model Matrix
| Suffix Identifier | Designation | Technical Function |
|---|---|---|
| 7400166-390 | Base Hardware Assembly | Primary panel field termination module assembly variant |
| 9662-610NJ | Alternative Catalog ID | Manufacturer tracking code and part matrix identification |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 7400166-390 |
| Brand | Triconex (Schneider Electric) |
| Operating Temp | -20 deg C to +60 deg C |
| Power Consumption | Passive pass-through (0 Watts active draw) |
Galvanic Isolation and Safety Integrity
Engineered to support SIL3-rated architectures, the Triconex 7400166-390 operates alongside safety instrumented systems while maintaining rigorous galvanic isolation barriers. Furthermore, this termination panel prevents ground loops and electrical noise propagation from external field loops into core logic solvers. Consequently, the hardware preserves the fault tolerance required for fail-safe state execution across industrial safety loops.
Frequently Asked Questions
Q: Does the Triconex 7400166-390 termination panel support live replacement under power?
A: Yes, technicians can replace external field wiring blocks or interconnected cables, provided they follow site safety protocols regarding active 30 VDC circuits.
Q: How does the panel handle signal routing from field instruments to the system modules?
A: The internal copper traces route incoming field signals directly to pre-engineered system cable connectors without active signal conditioning.
Field Installation Guidelines
- Verify that the cabinet mounting space matches the panel dimensions prior to physical assembly.
- Secure the termination panel firmly to the DIN rail or backplate using appropriate mounting hardware.
- Ensure all field wiring is correctly stripped and torqued into the terminal blocks to maintain electrical continuity.
- Confirm that operating voltages remain strictly within the 30 VDC maximum rating before system energization.
