Overview

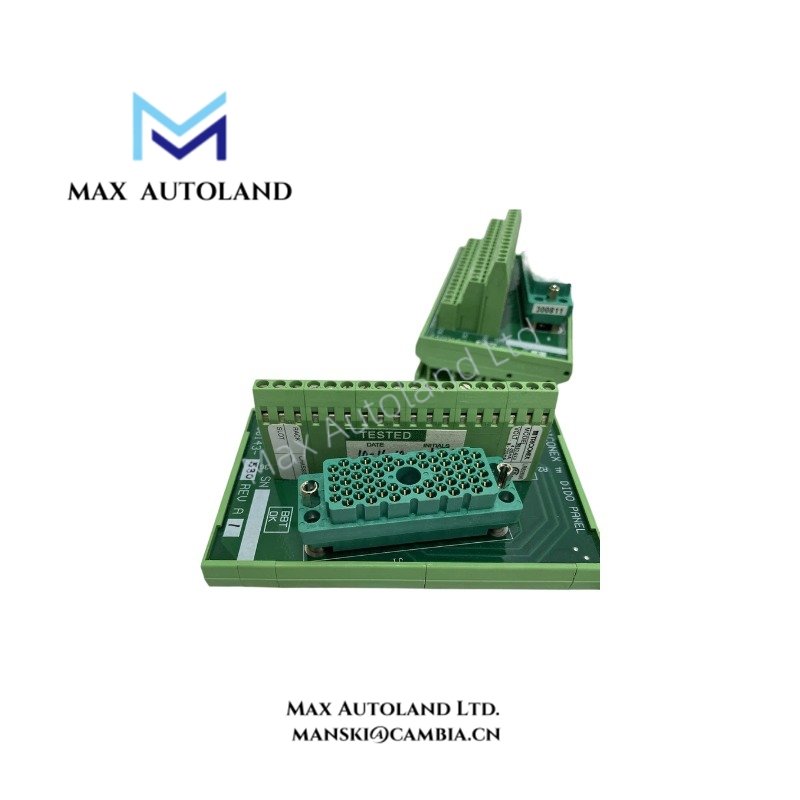

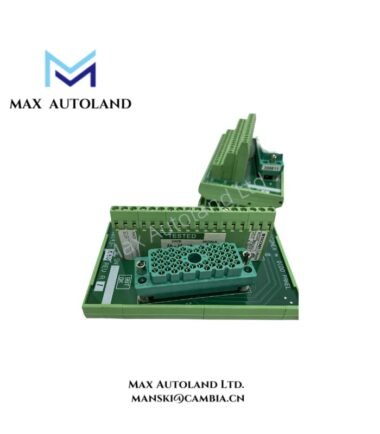

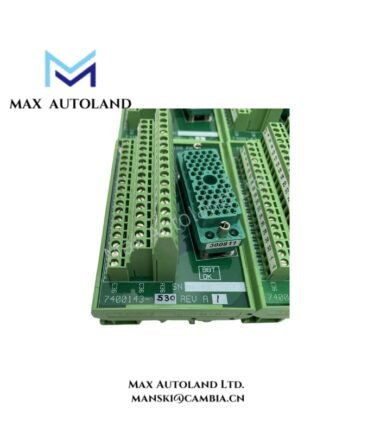

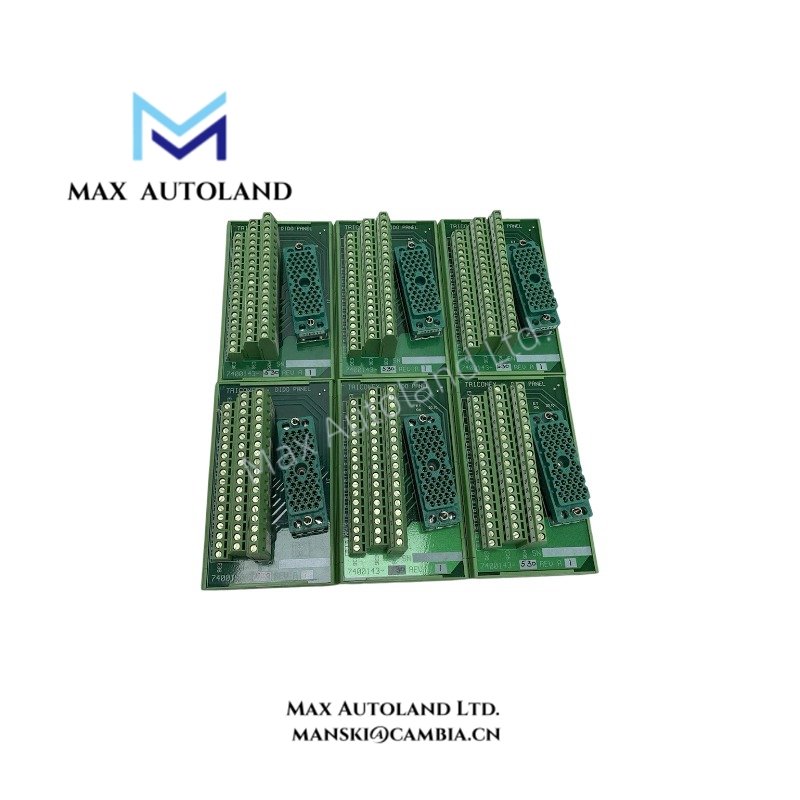

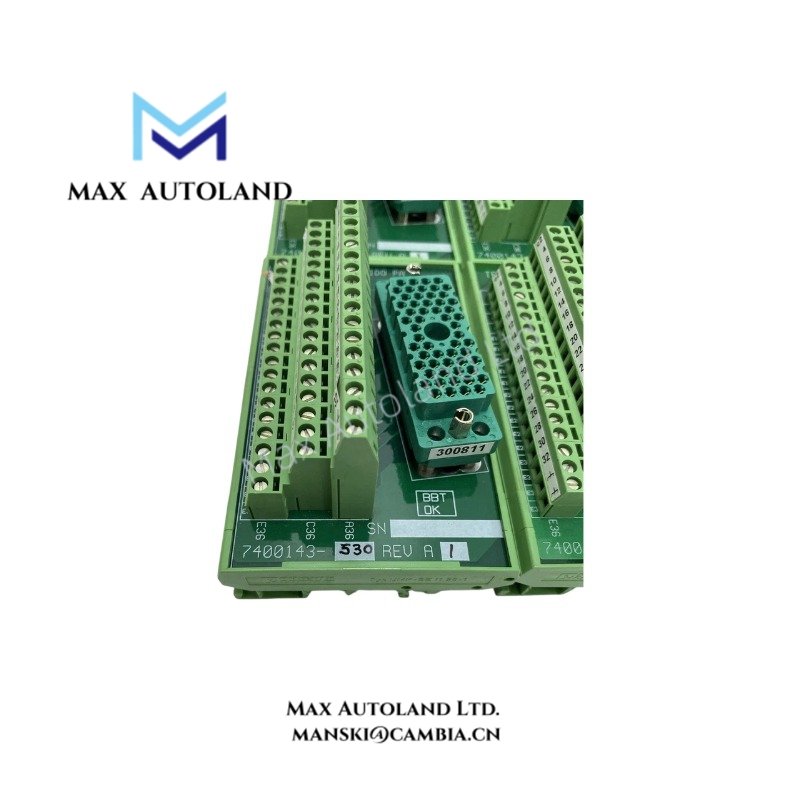

Configured for field signal termination in Triconex Safety Instrumented System (SIS) platforms, the TRICONEX 3000400-530 (3000400-530 Terminal Panel Module) provides direct physical connection and routing between field wiring and Triconex I/O modules.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3000400-530 |
| Brand | TRICONEX |
| Product Type | Terminal Panel Module |
| Manufacturer | Triconex / Invensys |
| Origin | USA |
| Weight | Approx. 240 g |
| Dimensions | Approx. 14.9 cm x 5.3 cm x 6.8 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Passive interface device, no external power consumption |
| Application | Triconex Safety Instrumented System field termination |
| Connection Type | Screw terminal connection |
| Mounting Type | Panel installation |
| Electrical Function | Passive signal termination and field wiring interface |
| Signal Interface | Field device signal routing to Triconex I/O modules |
| System Compatibility | Tricon SIS platforms |
TMR SIS Interface and Galvanic Isolation Related Features
The TRICONEX 3000400-530 functions as a passive termination interface within Triconex SIS architectures. It provides organized field wiring termination and maintains separation between external field cables and controller I/O assemblies.
Moreover, the terminal panel supports Triconex system configurations based on triple modular redundancy (TMR) 2oo3 architecture by providing structured signal connection points. The panel itself does not execute control logic, but it supports the physical wiring layer required for fail-safe state execution.
In addition, the module design allows maintenance personnel to access I/O hardware connections without disturbing field cable termination points. The terminal interface improves wiring organization and reduces mechanical stress on controller-side connections during service operations.
Frequently Asked Questions
Q: Is the TRICONEX 3000400-530 an active I/O processing module?
A: No. The 3000400-530 is a passive terminal panel module that provides field wiring termination and signal routing functions.
Q: Does the 3000400-530 provide internal control logic or firmware execution?
A: No. The module contains no application processing function and operates as a physical interface component between field wiring and Triconex I/O hardware.
Q: What installation method does the terminal panel use?
A: The module uses panel installation with screw terminal connections for field cable termination.
Field Installation Guidelines
- Install the terminal panel in a suitable industrial enclosure with appropriate environmental protection.
- Verify terminal assignments before connecting field devices and Triconex I/O modules.
- Route signal cables separately from high-voltage power cables to reduce electrical interference.
- Connect cable shields according to the system grounding design and site electrical standards.
- Confirm compatibility between the terminal panel wiring configuration and the connected Triconex I/O module type before commissioning.
