Overview

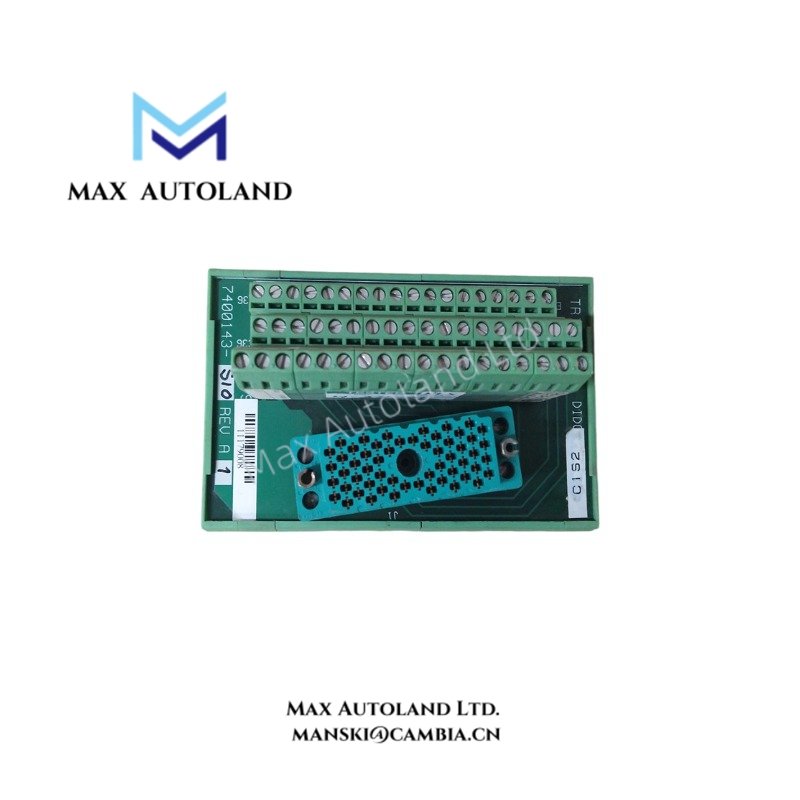

Configured for field signal termination and electrical interface execution in Triconex Safety Instrumented System platforms, the TRICONEX 3000400-510 (3000400-510 Terminal Panel Module) provides direct physical connection between field wiring and Triconex I/O modules.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3000400-510 |
| Brand | TRICONEX |
| Product Type | Terminal Panel Module |
| Manufacturer | Invensys Triconex |
| Origin | USA |
| System Compatibility | Triconex Safety Instrumented System (SIS) |
| Application | Field wiring termination and signal interface |
| Signal Interface | Analog signal termination interface |
| Input Signal Range | 0 – 5 V / 0 – 10 V (application dependent) |
| Operating Voltage | 24 VDC |
| Power Consumption | Approx. 5 W max. |
| Weight | Approx. 0.2 – 0.33 kg |
| Dimensions | Approx. 100 mm x 50 mm x 25 mm |
| Operating Temp | -40 deg C to +70 deg C / +85 deg C depending on installation configuration |
| Storage Temperature | -40 deg C to +85 deg C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting Type | Triconex rack or terminal panel installation |
| Isolation | Field-side electrical isolation design |
| Safety Application | SIS and industrial process automation systems |
Safety Instrumented System Signal Isolation and TMR Interface Characteristics
The TRICONEX 3000400-510 Terminal Panel Module provides field termination functions within Triconex SIS architectures. It manages the physical connection path between external instruments and Triconex input modules while maintaining organized field wiring structures.
Moreover, Triconex SIS hardware platforms use triple modular redundancy (TMR) 2oo3 architecture at the controller level to process safety signals through independent channels. The terminal panel supports the structured signal routing required by these architectures but does not perform logic execution or safety decision processing.
The module design supports galvanic isolation principles between field circuits and internal control electronics. Therefore, proper grounding, shielding, and wiring separation help maintain signal integrity in safety-related installations.
Frequently Asked Questions
Q: Does the TRICONEX 3000400-510 perform application logic processing?
A: No. The module functions as a field termination and signal interface component. Logic execution occurs inside Triconex processor and I/O modules.
Q: Can the 3000400-510 directly replace a Triconex I/O processing module?
A: No. The 3000400-510 provides terminal connection functions and requires compatibility with the corresponding Triconex I/O hardware configuration.
Q: What installation practices affect signal performance?
A: Field wiring should follow system drawings with correct shielding, grounding, polarity verification, and separation from high-noise power conductors.
Field Installation Guidelines
- Install the 3000400-510 inside the designated Triconex cabinet or approved enclosure.
- Verify terminal assignments against the Triconex engineering documentation before connecting field devices.
- Maintain proper cable shielding and grounding practices for analog signal wiring.
- Separate low-level signal cables from high-voltage power wiring to reduce electrical interference.
- Confirm field device signal type and voltage range before system commissioning.
- Inspect terminal connections periodically to maintain stable electrical contact.
